Process Wastewater Considerations for Data Center Operations
A guide to managing data center process wastewater, including cooling tower blowdown chemistry, pretreatment, permitting, and site design impacts. Learn how civil engineering helps navigate discharge
Defining Process Wastewater in Data Center Design
The primary source of process wastewater in most large-scale data centers is cooling tower blowdown. Evaporative cooling is an efficient method for dissipating heat, but as pure water evaporates, the dissolved minerals, solids, and treatment chemicals left behind become highly concentrated. To prevent scaling and fouling within the cooling system, a portion of this concentrated water is periodically drained, or “blown down.” This blowdown is the main component of the process wastewater stream. It is crucial to distinguish this from domestic sanitary flow. While a data center produces sanitary waste, its volume is typically minor compared to the potential volume of blowdown. Other potential sources of process wastewater can include backwash from on-site water treatment systems (like water softeners or reverse osmosis units), equipment cleaning, and condensate from air handling units. The utility coordination effort for a data center must therefore account for two separate wastewater streams, each with its own discharge characteristics and permitting pathway.
The Chemistry of Cooling Tower Blowdown
Comparison of Common Process Wastewater Discharge Parameters
| Parameter | Typical Source/Concern in Blowdown | Common Regulatory Limit Type | On-Site Treatment Consideration |
|---|---|---|---|
| pH | Treatment chemicals can make water acidic or alkaline. Extreme pH can corrode sewer infrastructure. | A required range, often between 6.0 and 9.0. | pH neutralization system using acid or caustic dosing. |
| Total Dissolved Solids (TDS) | Concentration of naturally occurring minerals from source water. | May have a specific numeric limit or be monitored as an indicator. | Difficult to remove; requires advanced treatment like reverse osmosis. |
| Temperature | Blowdown water can be hot, potentially impacting the receiving treatment plant's biology. | A maximum temperature limit (e.g., 150°F). | Cooling or holding tanks to allow for temperature reduction before discharge. |
| Chlorine / Biocides | Added to control biological growth; toxic to aquatic life and can disrupt treatment plants. | Strict limits on total residual chlorine or specific biocidal compounds. | Dechlorination systems or use of non-persistent biocides. |
| Heavy Metals (e.g., Copper, Zinc) | Leached from system components due to corrosion. | Specific, low concentration limits (parts per million or billion). | Chemical precipitation, ion exchange, or specialized filtration. |
The chemical composition of cooling tower blowdown is the central reason it requires special handling. The water is not just concentrated; it is also dosed with a suite of chemicals to maintain system efficiency and integrity. These additives are essential for preventing biological growth, corrosion, and mineral scaling within the cooling equipment. Consequently, the blowdown contains elevated levels of these specific compounds. Common constituents of concern include high Total Dissolved Solids (TDS), chlorides, sulfates, and phosphates. The water treatment program will introduce biocides to control algae and bacteria, corrosion inhibitors to protect piping, and anti-scaling agents. The final chemical makeup is a complex mixture that can be harmful to downstream infrastructure and ecosystems if discharged untreated. A thorough analysis of the proposed water treatment chemical package is a prerequisite for any discharge permit application, as it directly informs the required level of pretreatment and the applicable water quality parameters.
Navigating Discharge Permitting and Pretreatment Requirements
Discharging industrial wastewater is a regulated activity governed by a framework of federal, state, and local rules. The two primary pathways are discharge to a public sanitary sewer system or direct discharge to a surface water body under a National Pollutant Discharge Elimination System (NPDES) permit. For most data centers, connection to a sanitary sewer is the preferred option, but this requires approval from the local utility or sewer authority, which operates under a federally mandated industrial pretreatment program. The sewer authority will issue an industrial user permit that sets specific limits on the pollutants the data center can discharge. These limits protect the treatment plant’s biological processes and prevent the pass-through of pollutants into the environment. Discharge limits and permitting requirements vary by jurisdiction, and every project team must confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. This often involves extensive agency review and detailed permit submittals that document the expected flow rates, chemical constituents, and proposed pretreatment requirements before a connection is approved.

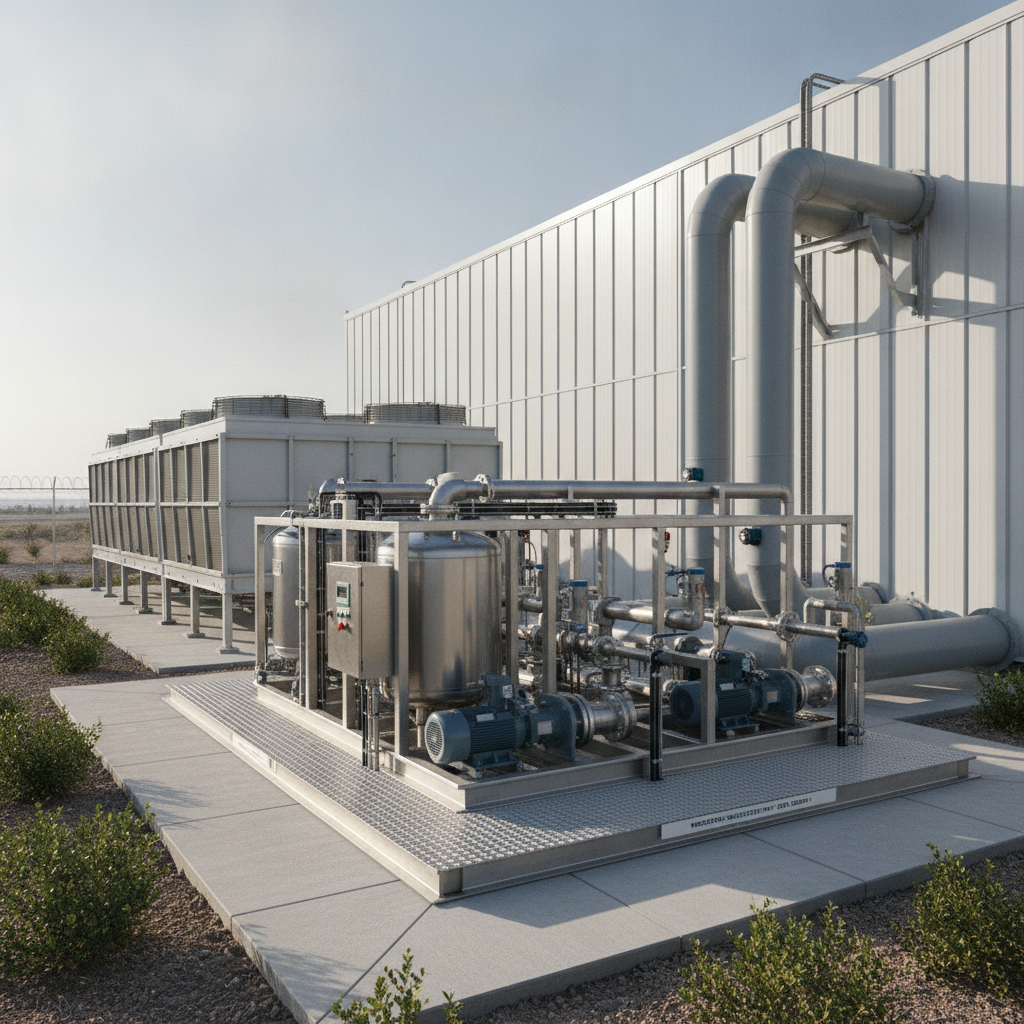

On-Site Treatment Technologies and Their Site Plan Impact
Meeting the discharge limits set by the utility authority almost always requires on-site pretreatment of the process wastewater. The specific technology depends on the blowdown chemistry and the local requirements. Common treatment methods include pH neutralization to adjust acidity, chemical precipitation to remove heavy metals, and advanced filtration to reduce suspended solids. In regions with water scarcity, more advanced systems like reverse osmosis may be used to treat blowdown to a quality suitable for reuse on-site. These treatment systems are not insignificant pieces of equipment. They consist of tanks, pumps, chemical storage, and control panels that require a dedicated physical footprint on the site. This area must be incorporated into the overall site plan design from the beginning. The civil engineering team must allocate space for the treatment skid, provide for containment in case of spills, ensure proper drainage, and plan for vehicle access for chemical delivery and maintenance. Failing to account for this footprint early can lead to costly redesigns and site layout conflicts.
Integrating Wastewater Strategy with Water Scarcity and Reuse Goals
In many parts of the country, water is a finite and increasingly valuable resource. For data centers, which can be massive water consumers, implementing a water reuse strategy is becoming a business and social imperative. Treating cooling tower blowdown for reuse is a powerful way to reduce a facility’s overall water footprint. Instead of being a waste product, the treated water becomes a resource. Treated process wastewater can be used for purposes like landscape irrigation, dust control during construction, or even cycled back into the cooling system, reducing the demand for fresh municipal water. This approach not only conserves water but also enhances a project’s sustainability profile and can be a key factor in gaining community and regulatory approval. The civil engineering design must integrate storage tanks and distribution piping to make such a reuse system feasible, often in conjunction with the site’s overall stormwater management plan.
Monitoring, Reporting, and Long-Term Compliance
Securing a discharge permit is the beginning, not the end, of the compliance process. Industrial discharge permits come with strict requirements for ongoing compliance monitoring and regulatory reporting. The data center operator will be required to regularly sample the treated wastewater, have it analyzed by a certified laboratory, and submit the results to the permitting authority. Many permits require the installation of automated monitoring equipment that continuously measures parameters like pH and flow rate. This creates a permanent record of compliance and alerts operators to any treatment system upsets. The design and operational plan must account for the necessary sampling ports, monitoring equipment, and the staff time required to manage this ongoing obligation. This is a critical component of the facility’s long-term operational plan, often supported by the construction administration team during system commissioning.
RSP Engineers’ Approach to Process Wastewater Strategy
At RSP Engineers, we address process wastewater as a core component of data center site development from day one. Our process begins with early-stage due diligence, where we engage the local utility authorities to understand their specific pretreatment standards, connection fees, and permit application process. We work with the project’s mechanical engineering team to characterize the expected wastewater stream based on the proposed cooling system and water treatment program. Our team of Civil Engineers then integrates the required pretreatment system into the site plan design, ensuring adequate space, access, and supporting infrastructure are allocated. We facilitate the agency review process by preparing comprehensive engineering reports and permit applications that clearly demonstrate how the project will meet all regulatory requirements. This proactive and integrated approach minimizes surprises and helps keep the project on schedule.
Common Pitfalls in Data Center Wastewater Planning
Even experienced development teams can encounter challenges with process wastewater. One of the most common issues is underestimating the physical footprint of the treatment equipment, leading to cramped site layouts. Another frequent pitfall is failing to engage the local sewer authority early in the design process, resulting in late-stage discovery of restrictive discharge limits that force a major redesign. Teams may also overlook the significant operational costs associated with chemical consumption, system maintenance, and compliance reporting. Finally, a mismatch between the selected cooling chemical package and local environmental regulations can create a difficult-to-permit scenario, highlighting the need for integrated design.
Partner with RSP Engineers for Your Data Center Utility Design
Navigating the complexities of process wastewater requires specialized expertise in both civil engineering and regulatory compliance. The team at RSP Engineers provides comprehensive site engineering services for mission-critical facilities nationwide. We manage every aspect of the process, from initial utility coordination and capacity analysis to the design of pretreatment systems and securing all necessary discharge permits. Don’t let wastewater challenges derail your project schedule. Contact us today to ensure your data center’s site development is built on a foundation of sound engineering and regulatory strategy.
A Proactive Approach to Wastewater Management
In conclusion, process wastewater management is a non-negotiable, critical path item for modern data center development. Treating it as an afterthought invites risk, delays, and unforeseen costs. A proactive strategy that integrates wastewater chemistry, treatment technology, and regulatory permitting into the earliest stages of design is essential for success. By partnering with experienced Civil Engineers, developers can navigate the compliance landscape effectively, ensuring their facility is not only powerful and efficient but also a responsible steward of local water resources. This foresight is a hallmark of successful land development in the mission-critical sector.
FAQs
-
Sanitary sewage is domestic waste from restrooms and kitchens, which is similar to residential wastewater. Process wastewater, primarily from cooling tower blowdown, is an industrial discharge containing concentrated minerals and treatment chemicals, requiring a separate permit and often extensive pretreatment before it can be sent to the sewer.
-
No. Discharging industrial wastewater like cooling tower blowdown into a stormwater system is prohibited under the Clean Water Act. Stormwater systems typically drain directly to rivers and streams without treatment. Process wastewater must be discharged to a sanitary sewer system under an industrial permit or to a surface water body under an NPDES permit, both of which require meeting strict water quality standards.
-
The required footprint varies significantly based on the flow rate and the level of treatment needed. A simple pH neutralization system may require a few hundred square feet, while a more complex system with filtration and chemical precipitation could require several thousand square feet for equipment, tanks, and chemical storage. Early consultation with a civil engineering firm is critical to properly allocate space.
