Water Main Extension Design for Data Center Campuses
A technical guide to designing water main extensions for data centers, covering demand calculation, route selection, pipe sizing, permitting, and utility dedication. Learn how civil engineering ensure
Calculating Total Water Demand for Mission-Critical Facilities
The first step in designing a water main is to establish the total water demand of the data center campus at full build-out. This calculation is a composite of three distinct demand types. The largest component is typically the cooling tower makeup water, which replaces water lost to evaporation and blowdown in the facility’s cooling systems. This demand is directly tied to the IT load, cooling technology, and local climate conditions. A thorough analysis must account for peak operational scenarios to ensure the system is never starved for water. The second critical component is the fire flow requirement, which is the rate of water flow needed for fire suppression. This is determined by national fire codes, the building’s construction type, and the specific requirements of the local fire marshal and the facility’s insurance underwriter. Finally, domestic water demand for restrooms, kitchens, and other staff facilities must be included. The final design must be based on the peak combined demand, ensuring the system can deliver the required fire flow on top of the maximum operational cooling and domestic loads. This comprehensive water demand analysis is the foundational data point for all subsequent hydraulic modeling and pipe sizing.
Route Selection and Easement Acquisition Strategy
Water Main Pipe Material Comparison
| Material | Key Advantages | Common Applications / Considerations | Typical Diameter Range |
|---|---|---|---|
| Ductile Iron Pipe (DIP) | High tensile strength, durability, impact resistance. Excellent for high-pressure systems and areas with heavy traffic loads. | Often the standard for public utilities. Requires corrosion protection (polyethylene encasement) in aggressive soils. Joints can be restrained to eliminate thrust blocks. | 4-inch to 64-inch |
| Polyvinyl Chloride (PVC) | Excellent corrosion resistance, smooth interior for low friction loss, lighter weight than DIP, often lower material cost. | Widely used for water distribution. Must be carefully bedded to prevent damage. Susceptible to UV degradation if stored improperly. | 4-inch to 48-inch |
| High-Density Polyethylene (HDPE) | Flexible, corrosion-proof, and can be joined via heat fusion to create a monolithic, leak-free pipeline. Ideal for trenchless installations. | Excellent for horizontal directional drilling (HDD) under roads or wetlands. Lower pressure rating than DIP for a given wall thickness. | 4-inch to 65-inch |
| Steel Pipe | Very high strength, capable of spanning short distances. Customizable fittings. | Used for special applications like aerial crossings, bridge crossings, or in-plant process piping. Requires robust interior and exterior corrosion coating. | 4-inch and up |
| Prestressed Concrete Cylinder Pipe (PCCP) | Extremely strong and durable, designed for very large diameter transmission mains under high pressure. | Typically used for regional water transmission lines, not last-mile extensions. Requires specialized handling and installation equipment. | 16-inch to 144-inch |
Selecting the optimal route for the water main extension is a multi-faceted challenge. The goal is to find the most direct and constructible path from the existing public main to the project site’s point of connection. The route analysis must evaluate topography, soil conditions, existing utilities, environmental constraints like wetlands, and public versus private land ownership. A route that appears shortest on a map may be infeasible due to conflicts with major gas pipelines, fiber optic corridors, or sensitive environmental features. Once a preferred route is identified, the process of securing the legal right to install and maintain the pipeline begins. This typically involves acquiring permanent utility easements from multiple property owners. This can be one of the most time-consuming aspects of the project, requiring detailed surveys, title searches, appraisals, and negotiations. Permitting requirements and easement acquisition processes vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. Proactive engagement with landowners and a clear right-of-way acquisition strategy are essential to prevent significant schedule delays.
Pipe Sizing, Material Selection, and Pressure Class
With the total demand calculated and the route selected, engineers perform detailed hydraulic modeling to determine the appropriate pipe diameter. The model analyzes friction losses over the length of the pipe, elevation changes, and connection losses to ensure that the required pressure and flow rate are delivered to the data center campus under all demand scenarios. Undersizing the pipe can lead to inadequate fire protection and operational issues, while significant oversizing adds unnecessary material and construction cost. Material selection is another key decision. For large-diameter transmission mains, Ductile Iron Pipe (DIP) and Polyvinyl Chloride (PVC) are common choices, each with distinct advantages in terms of strength, corrosion resistance, and jointing methods. The pipe’s pressure class rating must be sufficient to handle the maximum static and operating pressures of the public water system, including potential surges from pump stations or rapid valve closures. A transient surge analysis may be required for very long pipelines or high-pressure systems to protect the infrastructure from damaging pressure waves.
Design of Appurtenances: Valves, Hydrants, and Thrust Restraints
A water main is more than just a pipe; it’s a system of components that allow for operation, maintenance, and emergency response. Isolation valves are strategically placed along the route, typically at intervals specified by the utility provider, to allow sections of the main to be shut down for repairs without disrupting the entire system. Air release valves are installed at high points to vent trapped air, which can impede flow and cause pressure surges. Fire hydrant placement is dictated by fire code and the local fire marshal’s requirements to ensure adequate coverage for the new pipeline and surrounding areas. Each hydrant, valve, tee, and bend in the pipeline creates significant hydraulic thrust forces when the system is pressurized. These forces must be counteracted by a thrust restraint design, which can involve massive concrete thrust blocks poured behind fittings or the use of mechanically restrained joint piping systems that distribute the forces along the pipe itself.
Navigating Utility Crossings and Construction Challenges

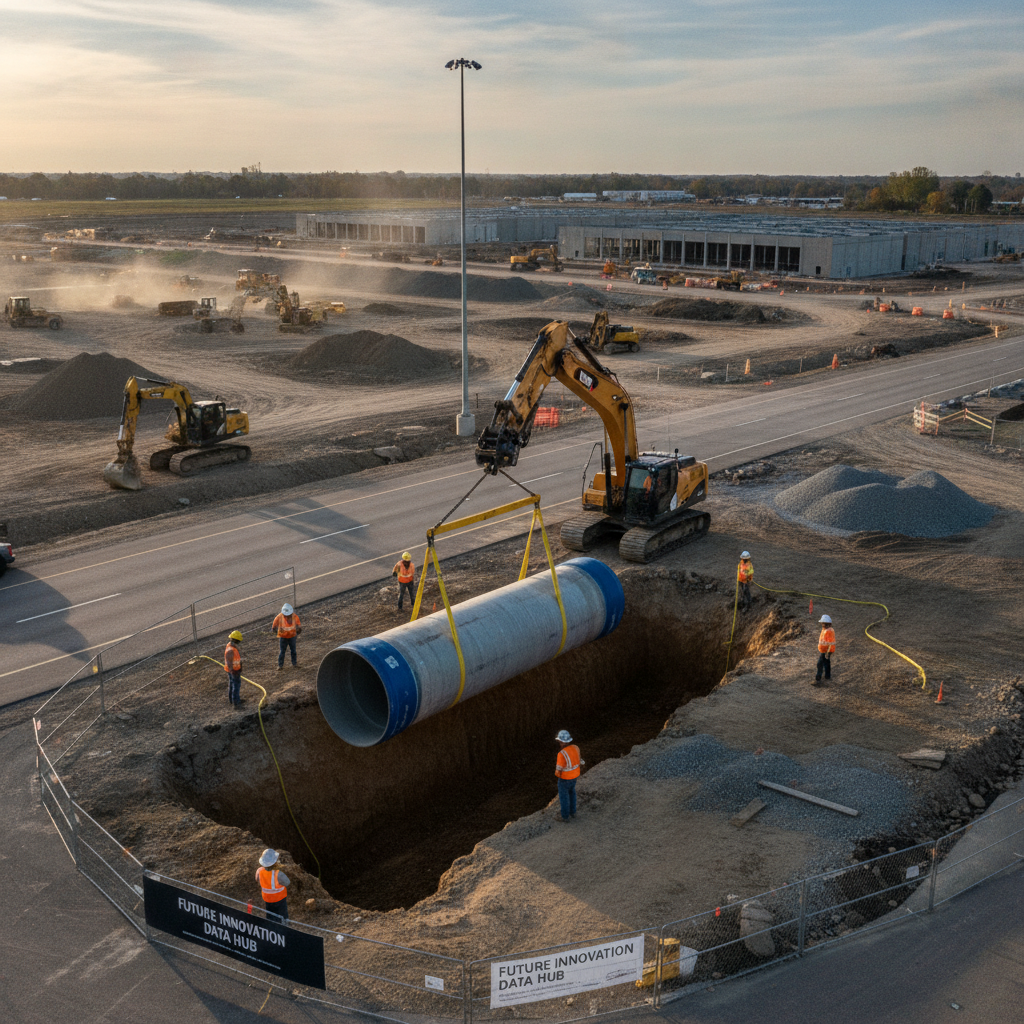

Constructing a multi-mile water main extension inevitably involves crossing existing infrastructure. This includes roadways, railroads, other wet and dry utilities, and environmentally sensitive areas. Each crossing presents a unique engineering and permitting challenge. For major roadways or environmentally sensitive areas, open-cut trenching may not be feasible or permitted. In these cases, trenchless technologies like horizontal directional drilling (HDD) or jack-and-bore are employed to install the pipe underneath the obstacle with minimal surface disruption. Successful navigation of these crossings requires extensive utility coordination with dozens of other asset owners. A critical first step is commissioning a Subsurface Utility Engineering (SUE) investigation to accurately locate existing underground infrastructure. Failing to identify a critical fiber optic duct bank or high-pressure gas main can lead to catastrophic construction accidents and project-killing delays. A well-defined construction sequencing plan is essential to manage these complex interfaces.
The RSP Engineers Approach to Water Main Extensions
At RSP Engineers, our process begins with a thorough utility feasibility study to confirm the public system has adequate capacity and to identify potential connection points and routes. We work closely with the data center development team to establish a robust design basis founded on a detailed water demand analysis. Our team performs multi-criteria route analysis and detailed hydraulic modeling to optimize the design for performance, cost, and constructability. We manage the entire lifecycle, from initial concept through final dedication. This includes leading the easement acquisition process, preparing comprehensive construction documents, and navigating the complex multi-agency permitting process. During construction, we provide construction administration and observation to ensure the infrastructure is built in strict accordance with the design and utility standards, culminating in a successful pressure test and turnover to the local utility.
Common Issues and Long-Lead Time Considerations
Several common issues can impact the schedule and budget of a water main extension. Unforeseen subsurface conditions, such as rock formations or contaminated soils discovered during excavation, can require significant redesign and increase construction costs. Delays in negotiating and acquiring necessary easements from private landowners are a primary driver of schedule overruns. It is critical to treat easement acquisition as a parallel critical path activity from day one. Furthermore, the procurement of materials can have a major impact on the timeline. Large-diameter pipe (24-inch and above), specialized valves, and custom fittings can have manufacturing lead times of six months or more. These items must be identified and ordered very early in the project, often well before all permits are in hand, to avoid having construction crews waiting on-site for materials to be delivered.
Partner with RSP for Your Mission-Critical Utility Infrastructure
Successfully delivering a water main extension for a data center campus requires a deep understanding of hydraulic engineering, utility standards, and the multi-agency regulatory landscape. The team at RSP Engineers has the expertise to manage these complex projects from initial feasibility through final closeout. Contact us today to discuss your project’s needs for utility master planning, off-site infrastructure design, and agency permitting. We provide the critical civil engineering support needed to ensure your facility has the reliable water supply it needs to operate on day one.
Conclusion
The design of a water main extension is a foundational element of data center site development. It is a complex civil engineering discipline that balances hydraulic performance, constructability, cost, and regulatory compliance. Success hinges on a meticulous water demand analysis, proactive utility coordination, and a realistic understanding of the long timelines associated with permitting, easement acquisition, and material procurement. Engaging an experienced civil engineering firm early in the site selection process is the best strategy to mitigate risks and ensure this critical infrastructure does not delay your project’s go-live date.
FAQs
-
The required fire flow is typically determined based on standards from the National Fire Protection Association (NFPA), the building’s size, construction materials, and the specific commodity being protected. The Authority Having Jurisdiction, usually the local fire marshal, has the final say and must approve the calculations and the proposed water supply design.
-
The two most significant schedule risks are typically easement acquisition and the procurement of long-lead time materials. Negotiating with multiple private landowners can be a lengthy and unpredictable process. Similarly, lead times for large-diameter pipe and specialized valves can extend for many months, making early planning and procurement essential.
-
Yes, using reclaimed or non-potable water for cooling is a growing trend for sustainability. However, it requires a separate ‘purple pipe’ infrastructure, on-site water treatment, and extensive permitting from health and environmental agencies. The availability and quality of a reclaimed water source must be confirmed with the local utility provider early in the site selection process.
