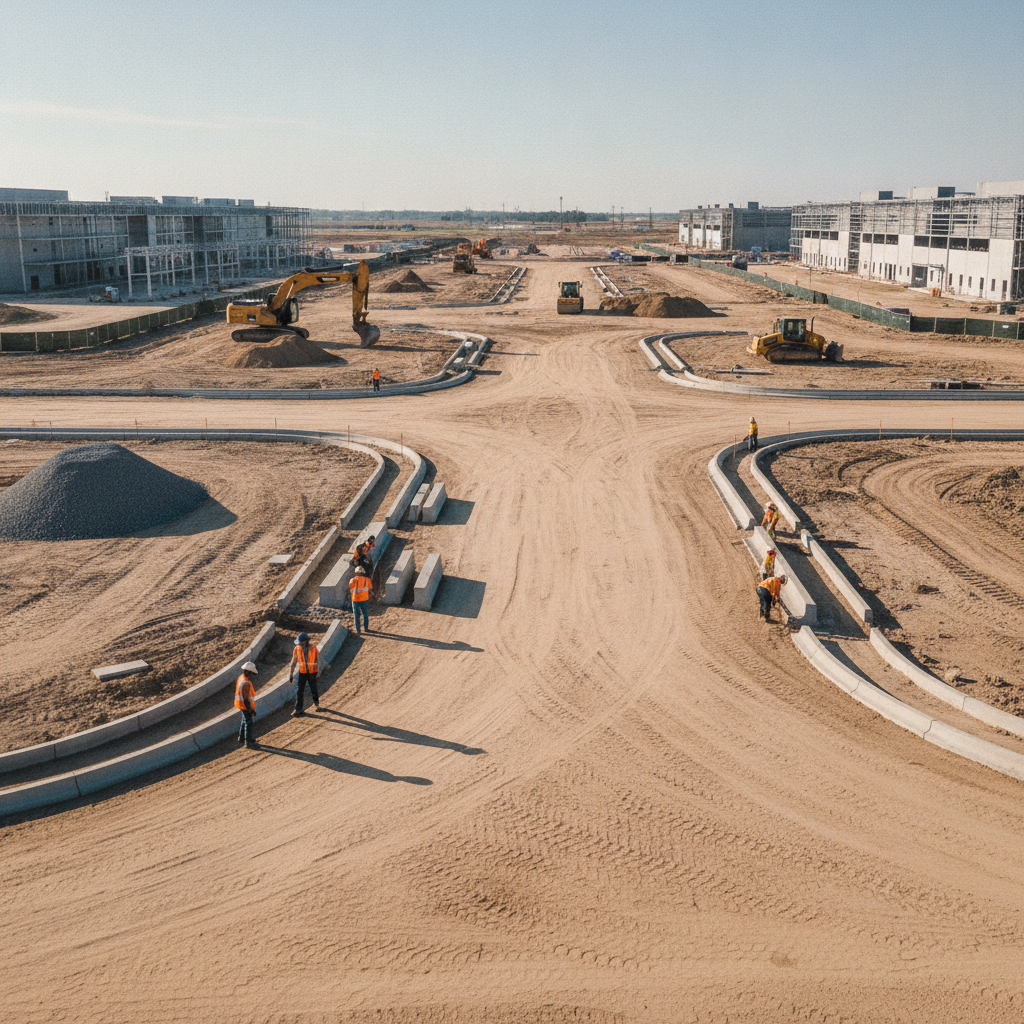

Internal Roadway Planning for Data Center Campuses

A comprehensive guide to internal roadway planning for data center campuses. Learn about roadway hierarchy, separating traffic, geometric design, and coordinating with utilities and stormwater from th

Establishing a Roadway Hierarchy for Campus Circulation

A key principle in campus planning is establishing a clear roadway hierarchy to segregate different types of traffic and create logical circulation patterns. This approach enhances safety, security, and operational efficiency. The hierarchy typically includes primary loop roads, secondary access roads serving individual data halls, and dedicated service or construction routes. A primary loop road often forms the main spine of the campus, providing redundant access to all major parcels and preventing a single blockage from isolating a facility. This is a critical resiliency feature for mission-critical development. Secondary roads branch off the main loop to provide direct access to employee parking, loading docks, and administrative areas. Their design focuses on efficient flow and clear wayfinding. By separating this daily operational traffic from heavy-duty vehicles, the risk of accidents is reduced and security protocols are easier to enforce. This strategic separation is a core component of effective site development and ensures that a generator fuel delivery does not conflict with an employee shift change. The entire network must be designed with a holistic view of the campus’s long-term operational needs.

Integrating Roadway Design with Master Site Planning

Data Center Campus Roadway Classification and Design Criteria

Roadway Type	Primary Function	Typical Pavement Section	Key Design Considerations
Primary Campus Loop	Main circulation spine, connects all parcels, provides redundant access	Heavy-duty asphalt or composite pavement	Accommodates utility mains, designed for full build-out traffic, wide turning radii
Data Hall Access Road	Connects primary loop to data halls, employee parking, and loading docks	Standard-duty asphalt, with reinforced concrete at docks	Clear wayfinding, separation of car/truck traffic, ADA compliance for pedestrian routes
Emergency Access Lane	Provides fire apparatus access to building perimeters	Reinforced turf, gravel, or heavy-duty asphalt	Must meet fire code width/strength, maintained clear at all times, no parking
Construction Haul Route	Segregated route for construction vehicles and material delivery	Thick aggregate base, potentially temporary asphalt	Physically separate from operational roads, dust control measures, durable for heavy loads
Utility Service Drive	Provides maintenance access to substations, generator yards, or tank farms	Gravel or light-duty asphalt	Designed for specific maintenance vehicles, security gate access, all-weather surface

The internal roadway network cannot be designed in a vacuum. It must be intricately woven into the campus master plan from the earliest stages of land development. The alignment of roads dictates the layout of building pads, the routing of major utility corridors, and the configuration of stormwater management systems. A common mistake is to finalize building locations without fully considering the access and circulation requirements, leading to inefficient layouts, tight turning radii, and costly rework. Effective integration involves laying out roadways in parallel with primary utility corridors for power, water, and fiber. This co-location simplifies installation, maintenance, and future upgrades, minimizing ground disturbance and construction complexity. Furthermore, the roadway’s grading and drainage design are fundamental to the overall site drainage design. Curbs, gutters, and storm inlets within the road right-of-way are the primary collection points for surface runoff, directing it toward detention basins or other treatment facilities. Planning these systems concurrently is essential for successful permitting and construction.

Geometric Design Standards and Safety Considerations

The geometric design of campus roadways must prioritize safety and functionality for the specific vehicles that will use them. This includes establishing appropriate lane widths, turning radii, intersection spacing, and sight distances. While employee vehicles have standard requirements, data center campuses must accommodate oversized and overweight vehicles, such as cranes, precast concrete haulers, and trucks delivering generators or cooling units. The design must ensure these vehicles can navigate the campus without damaging curbs, signage, or underground utilities. This requires careful roadway engineering and modeling of vehicle turning movements. Roadway design standards, including lane widths and intersection geometry, often reference national guidelines from organizations like AASHTO, but ultimately requirements vary by jurisdiction. Every project team must confirm the applicable requirements with the local, state, regional, and federal authorities that hold review authority over the site, including the local fire marshal and transportation department. Adherence to standards for vertical and horizontal curves is also critical for maintaining safe stopping sight distance and driver comfort. Proper ADA compliance for any associated pedestrian paths and crosswalks is also a non-negotiable design element.

Separating Construction and Operational Traffic

During the multi-year build-out of a data center campus, one of the greatest operational risks is the conflict between ongoing construction activities and the secure, stable operation of live data halls. A fundamental goal of the roadway master plan is to provide dedicated, segregated access for construction traffic. This is often achieved by establishing a separate construction entrance and a dedicated haul route that minimizes or eliminates any overlap with operational access roads, employee parking, and secured facility perimeters. This separation is vital for both security and safety. The civil engineering plan should account for temporary needs like construction worker parking, material laydown areas, and concrete washout facilities, locating them along the designated construction route. The pavement section of these haul routes must be designed to withstand the repeated stress of heavy equipment, dump trucks, and concrete mixers. By isolating these intensive activities, the operator can maintain a clean, secure, and professional environment around the active data centers, which is critical for client tours and daily operations. This phasing strategy is a hallmark of experienced site development professionals.

Emergency Vehicle Access and Fire Code Compliance

Ensuring rapid and unimpeded access for fire trucks and other emergency vehicles is a life-safety requirement and a primary focus of regulatory agency review. The internal roadway network must be designed in strict accordance with applicable fire codes, such as the International Fire Code (IFC) and standards from the National Fire Protection Association (NFPA). This includes specific requirements for minimum road widths (typically 20 feet or more of clear width), vertical clearance, and load-bearing capacity to support heavy fire apparatus. Dead-end roads exceeding a certain length must be equipped with an approved turnaround, such as a cul-de-sac or a hammerhead turn. The design of all intersections and turns must accommodate the turning radius of the largest emergency vehicle serving the jurisdiction. The civil engineering team must coordinate closely with the local fire marshal early in the design process to confirm all local amendments and preferences, ensuring the site plan design receives approval without delay. This proactive engagement is crucial for avoiding costly redesigns during the permitting process.

Pavement Design for Heavy and Specialized Loads

The pavement structure of a data center roadway is not one-size-fits-all. Different segments of the network are subjected to vastly different loading conditions. While employee parking lots may use a standard asphalt section, the primary loop roads, loading dock aprons, and equipment delivery routes require a much more robust design. These areas must support the immense point loads from cranes and the repetitive stress of heavy trucks delivering fuel, water, and critical equipment. A detailed pavement design is required to prevent premature failure like rutting, cracking, or subgrade collapse. The design process begins with a thorough Geotechnical soil report, which provides critical data on the subgrade soil’s strength and stability. Using this information, the Professional Engineer calculates the required thickness of the aggregate base and the asphalt or concrete surface layers. For areas with extremely heavy loads, such as equipment drop pads, reinforced concrete is often specified. This detailed analysis ensures long-term durability and minimizes maintenance costs, protecting the significant infrastructure investment and ensuring operational reliability for the entire campus.

RSP Engineers’ Approach to Data Center Roadway Network Design

At RSP Engineers, we approach data center roadway design as an integrated component of the overall site master plan. Our process begins with a comprehensive analysis of the project’s long-term goals, including phasing, security protocols, and traffic generation. We facilitate collaborative workshops with the client, architect, and other engineering disciplines to ensure the roadway layout supports every aspect of the campus, from utility distribution to security and emergency response. Our team of Civil engineers leverages advanced vehicle tracking and traffic modeling software to validate geometric designs and ensure safe navigation for all vehicle types. We work proactively with review agencies to identify and resolve potential issues early, streamlining the permit submittals process. During construction, we provide responsive construction administration services to ensure the roadway network is built to the exacting standards required for mission-critical facilities, delivering a final product that is durable, functional, and ready for the future.

Common Challenges in Campus Roadway Development

Even with careful planning, data center roadway projects can face significant challenges. One of the most common is underestimating the requirements for future phases, leading to a Phase 1 road network that cannot support the ultimate campus build-out without costly and disruptive modifications. Another frequent issue is a lack of coordination between the roadway design and the underground utility coordination, resulting in conflicts between storm drains, power conduits, and communication lines that require expensive field changes. Other challenges include failing to secure adequate right-of-way for future road widening or utility expansions, and designing pavement sections without a proper Geotechnical soil report, leading to premature pavement failure under heavy loads. Finally, insufficient planning for emergency vehicle access can lead to significant delays in permitting when the fire marshal rejects a site plan, underscoring the need for early and continuous coordination with all authorities having jurisdiction.

Partner with RSP Engineers for Your Mission-Critical Site Development

Developing a robust and scalable internal roadway network is a critical investment in the long-term success of your data center campus. The complexities of traffic segregation, heavy-duty pavement design, and agency approvals demand an experienced engineering partner. The team at RSP Engineers provides comprehensive site engineering services, from initial master planning and zoning compliance through detailed design, permitting, and construction. Contact us today to discuss how our expertise in civil engineering can provide a solid foundation for your next mission-critical project.

A Strategic Foundation for Data Center Operations

In conclusion, the internal roadway network of a data center campus is far more than asphalt and concrete. It is a strategic asset that dictates operational efficiency, safety, and the potential for future growth. A successful design requires a holistic approach that integrates roadway engineering with master planning, utility infrastructure, and security protocols. By prioritizing a clear circulation hierarchy, robust pavement design, and proactive agency review, developers can create a resilient foundation that supports the demanding environment of a mission-critical facility for decades to come. This level of integrated land development is essential for success in today’s competitive market. Related Articles Mastering Stormwater Management for Large-Scale Data Center Sites Utility Coordination Strategies for Mission-Critical Facilities Navigating the Land Development Permitting Process for Data Centers

FAQs

• How do you plan for future expansion in the initial roadway design?

  We design the primary roadway network based on the master plan for the full campus build-out. This means reserving adequate right-of-way, designing the core loop road to handle future traffic volumes, and stubbing out connections for future parcels. This ensures that future site development can proceed without redesigning the core infrastructure.

• What are the most critical vehicles to design for on a data center campus?

  While all vehicles are important, the design is often governed by the largest and heaviest ones. This includes fire apparatus, which dictates minimum turning radii and road widths per fire code, and the specialized transport vehicles used to deliver oversized equipment like generators, chillers, and transformers. The pavement design must account for these extreme loads.

• How does stormwater drainage integrate with the internal road network?

  The road network is a primary component of the stormwater management system. Roadways are graded to direct runoff to curb inlets, which then connect to an underground pipe system. This system conveys water to detention or retention ponds for treatment and controlled release. The drainage design and roadway design must be developed together.
