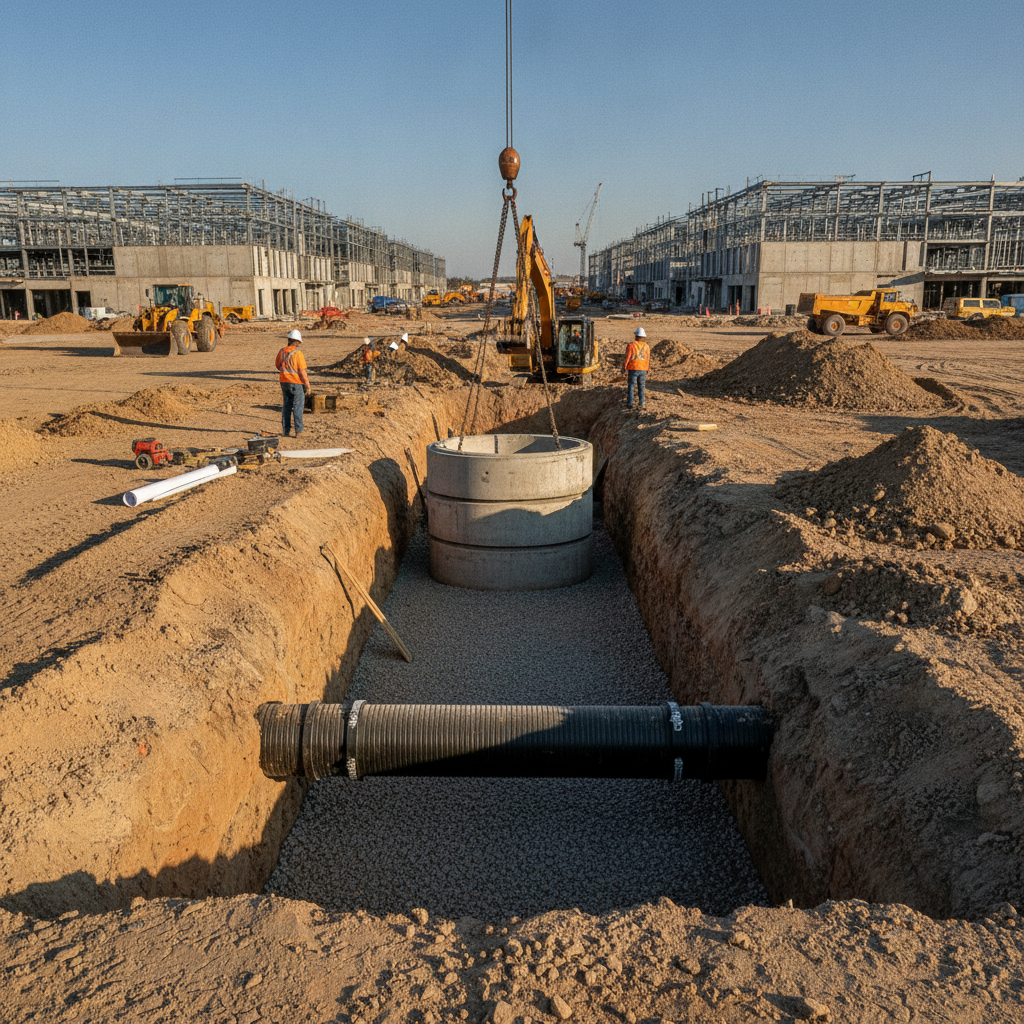

Gravity Sewer Design for Data Center Campuses
A technical guide to gravity sewer design for data center campuses, covering pipe sizing, slope, depth, utility coordination, permitting, and testing for mission-critical facilities.
Core Principles of Gravity Sewer Hydraulics
The fundamental concept behind a gravity sewer system is allowing wastewater to flow downhill from a higher elevation to a lower one, driven entirely by gravity. This eliminates the need for complex and maintenance-intensive pump stations, making it a highly reliable and cost-effective solution. The success of this system hinges on precise hydraulic design, governed by principles like the Manning’s equation, which relates flow velocity to pipe material, size, shape, and slope. A primary goal of the design is to achieve a minimum self-cleansing velocity, typically around 2 feet per second during peak flow conditions. This velocity is critical to ensure that suspended solids are transported effectively through the system, preventing sediment buildup, blockages, and premature pipe degradation. Failing to maintain this velocity can lead to operational issues and increased maintenance costs. The entire network of pipes, manholes, and connections must be engineered as a cohesive system to maintain consistent and predictable gravity flow from the point of origin to the public main.
Pipe Sizing and Minimum Slope Requirements
Key Design Parameters for Gravity Sewer Systems
| Parameter | Typical Design Consideration | Impact on Data Center Campus |
|---|---|---|
| Minimum Velocity | 2.0 feet per second (fps) at peak flow | Ensures solids are transported, preventing blockages that could disrupt campus operations. Critical for reliability. |
| Pipe Slope | Varies by pipe size (e.g., 0.40% for 8-inch pipe) | Balances excavation depth/cost against hydraulic performance. Must be carefully managed across large, relatively flat sites. |
| Pipe Cover | Minimum 3-4 feet; Maximum varies | Protects pipe from heavy construction traffic and future loads. Deep cover increases excavation costs and conflict potential. |
| Manhole Spacing | 400-500 feet maximum | Affects the overall layout and cost. Spacing must provide adequate maintenance access without interfering with other infrastructure. |
| Bedding Material | Crushed stone or approved granular fill | Critical for long-term pipe support. Poor bedding can lead to pipe failure, requiring costly and disruptive repairs. |
| Pipe Material | PVC, Ductile Iron Pipe (DIP) | Selection depends on depth, loading, and soil corrosivity. PVC is common, but DIP may be needed under heavy loads or in unstable soils. |
Proper pipe sizing is determined by calculating the anticipated peak wastewater flow from all connected facilities on the data center campus. This includes not only the main data hall support areas but also administrative buildings, security stations, and any future expansion areas. Engineers use fixture unit counts and flow calculations to establish a design peak flow rate, which then informs the required pipe diameter. While smaller pipes may be sufficient hydraulically, many jurisdictions mandate a minimum diameter (often 8 inches) for any sewer main intended for public dedication to ensure long-term capacity and reduce maintenance issues. The pipe’s slope is inextricably linked to its size and the goal of achieving self-cleansing velocity. Steeper slopes increase velocity but also result in deeper, more expensive excavations. Flatter slopes reduce excavation costs but risk sluggish flow and sediment deposition. The civil engineering team must find the optimal balance. Design standards for sanitary sewer design and minimum slope often vary by jurisdiction, and every project team must confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. This coordination ensures that the proposed system meets all local codes and will be accepted by the utility provider.
Navigating Depth, Cover, and Underground Conflicts
One of the greatest challenges in data center site development is the sheer density of underground infrastructure. Gravity sewer lines must be carefully routed to avoid conflicts with massive electrical and telecommunications duct banks, chilled water supply and return lines, domestic water mains, and extensive stormwater management systems. This requires meticulous utility coordination, often facilitated by 3D modeling and clash detection software to create a viable path for the sewer network. Engineers must also adhere to strict requirements for pipe depth and cover. Sufficient cover (the depth of soil above the pipe) is necessary to protect the pipe from traffic loads, surface activities, and frost heave in colder climates. However, excessively deep sewer lines dramatically increase excavation costs, shoring requirements, and dewatering complexity. The design must strategically navigate the site’s topography and existing utilities to maintain acceptable cover without creating prohibitively deep trenches, all while maintaining the required downward slope for gravity flow. These carefully planned routes are established within dedicated utility corridors shown on the final construction documents.
Manhole Spacing and Drop Structure Design
Manholes are essential components of a gravity sewer system, providing critical access for inspection, cleaning, and maintenance. They are typically placed at changes in pipe direction (horizontal or vertical), changes in pipe size, and at junctions where sewer lines converge. Jurisdictional standards dictate maximum manhole spacing, often around 400-500 feet, to allow for effective cleaning and video inspection of the pipeline segments. In areas with significant changes in ground elevation, a sewer line’s slope can become excessively steep, leading to high velocities that can cause scour, turbulence, and air entrainment. To manage this, engineers use drop structures, typically in the form of a drop manhole. An outside drop connection routes the flow down the exterior of the manhole barrel, dissipating energy before it enters the main channel at the bottom. This controlled drop protects the manhole structure and ensures smooth, laminar flow in the downstream pipe, preserving the integrity of the system by managing the flowline elevation change safely.
Geotechnical Considerations: Bedding and Groundwater
The long-term structural stability of a sewer pipe depends heavily on the surrounding soil conditions, a focus of Geotechnical Engineering. A proper foundation, known as pipe bedding, is crucial. This involves excavating the trench to a specific depth below the pipe and backfilling with a stable, granular material like crushed stone. This bedding provides uniform support along the length of the pipe, preventing sagging, joint separation, and structural failure over time. The type and thickness of bedding are specified based on the pipe material, native soil conditions, and anticipated surface loads. The presence of high groundwater tables can significantly complicate construction. Excavating trenches below the water table requires active groundwater dewatering using pumps and well points to keep the trench dry and stable during pipe installation. Uncontrolled groundwater can lead to trench collapse, compromise the bedding material, and cause buoyancy issues with the pipe itself. A thorough geotechnical investigation is essential to identify these conditions early, allowing the design and construction plan to incorporate necessary measures for ensuring trench stability and a successful installation.
Our Approach to Gravity Sewer Design at RSP Engineers
At RSP Engineers, our process begins with comprehensive utility master planning. We work with the client and design team to understand the full scope of the data center campus, including phased build-outs and future growth. This allows us to design a sewer system with adequate capacity for the ultimate campus configuration. We use advanced hydraulic modeling software to analyze the entire network, ensuring that all segments will meet velocity and capacity requirements under various flow scenarios. A critical step in our workflow is performing detailed clash detection in a 3D environment. By modeling the sewer system alongside all other proposed utilities—from electrical duct banks to fire water lines—we can identify and resolve spatial conflicts during the design phase, not in the field where they cause costly delays. This proactive coordination is essential for the dense utility environments of data centers. Finally, we manage the entire permitting process, preparing detailed permit submittals and coordinating with the local utility authority to secure all necessary approvals for connection and construction.
Common Issues in Data Center Sewer Design
Even with careful planning, several common challenges can arise. One is the underestimation of peak flow estimation, particularly from large administrative or support buildings, which can lead to an undersized system. Another frequent issue is the discovery of unforeseen utility conflicts during construction, which reinforces the need for thorough site investigation and 3D modeling. On some sites, encountering hard rock can dramatically increase costs and timelines for trenching, requiring specialized rock excavation techniques. Finally, poor construction sequencing can create significant problems. For example, installing deep sewer lines after other shallow utilities are already in place can be logistically impossible. The civil engineering plan must be integrated with the overall construction schedule to ensure that deep utilities are installed at the appropriate time, preventing rework and ensuring a smooth workflow for all trades on site.
Partner with RSP for Mission-Critical Utility Engineering
Designing and permitting robust utility infrastructure for data center campuses requires specialized expertise and proactive coordination. The team at RSP Engineers has a proven track record of delivering reliable and efficient site development solutions for mission-critical projects nationwide. We manage every aspect of the process, from initial utility master planning and detailed design to navigating the complexities of agency review and securing permits. Contact us to ensure your project’s foundational infrastructure is engineered for resilience and long-term success.
Conclusion
While it may seem like a basic component, gravity sewer design is a critical element of a data center’s operational resilience. Success requires a deep understanding of hydraulic principles, meticulous utility coordination to navigate congested underground spaces, and careful planning to address geotechnical challenges. By focusing on robust civil engineering, proactive permitting strategies, and adherence to proven design standards, developers can ensure their facility is supported by a reliable wastewater system built to last.
FAQs
-
Self-cleansing velocity is the minimum flow speed (typically 2 ft/sec) required in a sewer pipe to keep solid materials suspended and moving. It is critical because if the velocity is too low, solids will settle at the bottom of the pipe, causing blockages, reducing capacity, and potentially leading to sewer backups—an unacceptable risk for a mission-critical facility.
-
Coordination is achieved through intensive 3D modeling and clash detection. We model the precise location, size, and depth of all utility systems, including the sewer lines and duct banks. This allows us to identify and resolve vertical and horizontal conflicts during the design phase, ensuring there is adequate separation between systems as required by code and best practices for utility coordination.
-
If groundwater is present, a groundwater dewatering system is required. This typically involves installing well points or sump pumps to lower the water table within the construction zone, allowing the trench to be excavated in dry, stable conditions. This is critical for properly installing the pipe bedding and ensuring the long-term stability of the pipeline.
