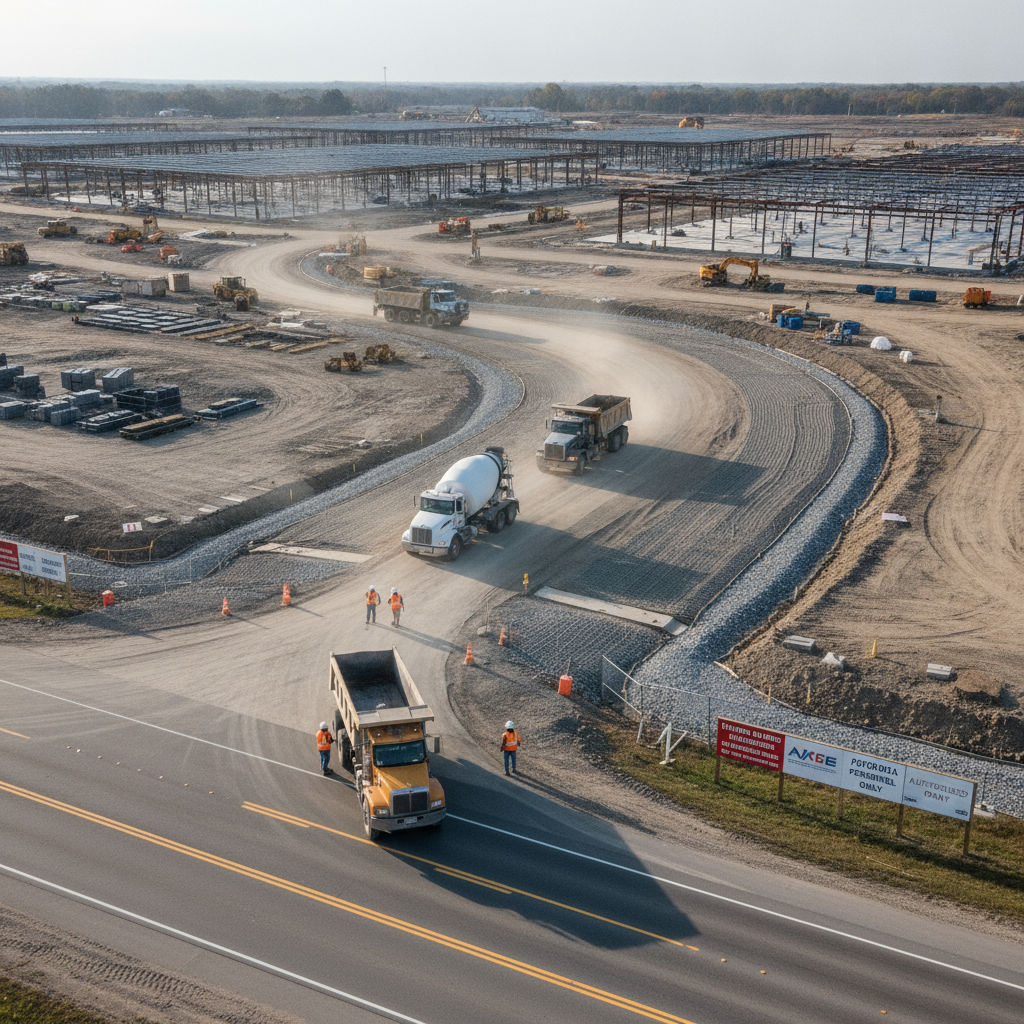

Designing Data Center Entrances for Heavy Construction Traffic
A guide to designing and permitting data center entrances for heavy construction traffic. Learn about geometric design, pavement sections, throat depth, and roadway authority approvals.
Geometric Design for Safe and Efficient Truck Maneuvering
The first principle of entrance design is ensuring large construction vehicles can enter and exit the site safely and efficiently without encroaching on opposing traffic lanes or dropping off the pavement. This is achieved through careful geometric design. We analyze the types of vehicles expected—often using a large design vehicle like a WB-67 tractor-trailer—to establish appropriate turning radii at the entrance apron. Inadequate radii force drivers into difficult, multi-point turns, which slows down operations and creates unsafe conditions on the adjacent public road. For sites on higher-speed roadways, dedicated deceleration lanes and tapers are often required by the roadway authority. These allow trucks to slow down and leave the main travel lanes without forcing following traffic to brake abruptly. Equally important is sight distance. The design must provide clear, unobstructed views for exiting drivers to see oncoming traffic and for drivers on the public road to see vehicles waiting to exit the site. This analysis considers road curvature, topography, and potential obstructions, ensuring compliance with nationally recognized standards like AASHTO guidelines.
Throat Depth and On-Site Stacking Capacity
Temporary vs. Permanent Entrance Design Considerations
| Feature | Temporary Construction Entrance | Permanent Operational Entrance |
|---|---|---|
| Pavement Section | Engineered for extreme heavy axle loads (e.g., thick aggregate base, potentially sacrificial asphalt layer or reinforced concrete). Focus is on durability over aesthetics. | Designed for operational traffic (employees, deliveries, maintenance vehicles). May have a standard-duty section with a focus on longevity and smooth ride quality. |
| Throat Depth | Maximized to accommodate long queues of construction trucks for security check-in, preventing backups onto public roads. | Sized for typical operational traffic, including shift changes and delivery vehicles, which is usually less intensive than peak construction traffic. |
| Geometric Design | Optimized for oversized and overweight vehicles (e.g., WB-67 design vehicle) with large turning radii and wide lanes. | Designed for standard passenger vehicles and delivery trucks. May incorporate more landscaping and aesthetic features. |
| Stormwater Management | Focus on sediment and erosion control, with temporary swales, silt fencing, and a stabilized entrance pad to prevent mud tracking. | Features permanent infrastructure like curb and gutter, storm drains, and stormwater treatment facilities (ponds, bioretention). |
| Signage & Marking | Temporary construction signage (e.g., "Trucks Entering/Exiting"), often with temporary markings. Focus is on safety and awareness. | Permanent, MUTCD-compliant signage and pavement markings, including stop bars, directional arrows, and street name signs. |
| Security Integration | Often features temporary guard shacks, gates, and fencing located well into the site to facilitate truck stacking. | Permanent guardhouse, access control systems (keycards, biometrics), and perimeter security integrated closer to the final building. |
One of the most common operational failures of a construction entrance is vehicle queuing that spills back onto the public road. This occurs when the entrance’s “throat depth”—the distance from the public right-of-way to the first on-site decision point, such as a security gate or check-in—is too short. A proper design includes a queuing analysis to determine the necessary on-site vehicle stacking length. This calculation is based on the projected peak arrival rate of trucks and the time it takes to process each vehicle. For a large data center project, this can mean designing a throat deep enough to accommodate a dozen or more trucks simultaneously, keeping them completely clear of public travel lanes. A detailed traffic impact study is often the mechanism used to quantify these needs and demonstrate to the permitting agency that the proposed entrance will not negatively impact the surrounding road network. Neglecting throat depth can lead to significant traffic backups, public complaints, and potential stop-work orders from the local jurisdiction.
Pavement Design for Heavy Axle Loads
The pavement section at a data center construction entrance must be engineered to withstand immense and repetitive stress. Standard commercial-duty asphalt sections are not sufficient for the constant traffic of fully loaded concrete mixers, dump trucks, and heavy equipment haulers. The design process begins with a thorough Geotechnical soil report, which analyzes the underlying soils and provides recommendations for subgrade stabilization. A weak subgrade is a primary cause of premature pavement failure, regardless of the surface thickness. The pavement design itself will specify a robust cross-section, often involving a thick aggregate base course and either a heavy-duty flexible pavement (asphalt) or a rigid pavement (concrete). Concrete aprons are frequently specified for the immediate entrance area due to their superior durability and resistance to rutting and shoving caused by slow-turning, heavy vehicles. The design must account for the cumulative impact of thousands of heavy axle loads over the entire construction period to prevent costly failures and repairs.
Permitting and Roadway Authority Coordination
No entrance can be constructed without explicit approval from the entity that owns and maintains the adjacent roadway. This could be a local, county, or state transportation agency. Securing an access permit is a critical path item that requires early and continuous coordination with the roadway authority. The application package is comprehensive, typically requiring a detailed Site plan design, traffic studies, drainage reports demonstrating no adverse impact, and plans for maintenance of traffic (MOT) during construction. The review process can be rigorous, with agency engineers scrutinizing every aspect of the design for compliance with their standards. Permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. Proactive engagement with the agency review staff helps identify potential issues early, allowing for design adjustments before a formal submittal and preventing lengthy delays in the project schedule.
Managing Mud Tracking and Site Runoff
A key requirement of any construction site is preventing mud, rock, and debris from being tracked onto public roadways. This is not only a public nuisance but also a safety hazard and a violation of environmental regulations. The design must include a stabilized construction entrance, which is a fundamental component of the project’s Stormwater Pollution Prevention Plan (SWPPP) required under the federal NPDES permit program. This entrance typically consists of a thick pad of coarse aggregate designed to dislodge mud from vehicle tires. For high-traffic data center sites, a simple aggregate pad may be insufficient. In these cases, a wheel wash station may be necessary. This can range from a simple pressure-washing station manned by a laborer to automated, drive-through systems. The goal is to ensure that every truck leaving the site has clean tires. This element of the design is critical for maintaining good public relations and ensuring uninterrupted compliance with local ordinances and federal NPDES permit conditions.
RSP’s Approach to Entrance Design and Permitting
At RSP Engineers, we treat entrance design as a critical, front-end component of land development. Our process begins with early due diligence and pre-application meetings with the governing roadway authority to establish clear design criteria and expectations. This proactive communication minimizes surprises during the formal review process. Our team of Civil engineers performs detailed traffic, geometric, and pavement analysis to develop a design that is both robust and cost-effective. We prepare comprehensive permit submittals that anticipate reviewer comments and clearly demonstrate compliance with all applicable codes. During construction, we provide construction administration services, reviewing contractor submittals and performing site inspections to ensure the entrance is built exactly as designed and approved, safeguarding the project’s schedule and budget.
Common Issues and Design Challenges
Even with careful planning, data center entrance projects can face hurdles. One of the most common is discovering inadequate sight distance due to existing topography or vegetation that cannot be easily altered, requiring complex geometric revisions or even a complete relocation of the proposed entrance. Another frequent challenge is encountering poor subgrade soils that necessitate costly soil stabilization or deep undercutting and replacement to provide a stable foundation for the pavement. Conflicts with major underground infrastructure are also a significant risk. Discovering a major fiber optic duct bank or high-pressure gas main at the proposed entrance location can trigger a major redesign and extensive utility coordination. Finally, underestimating truck traffic can lead to a queuing analysis that doesn’t reflect reality, resulting in traffic backups that require immediate and costly field modifications to resolve.
Partner with RSP Engineers for Your Data Center Site Development
Navigating the complexities of entrance design and permitting for a mission-critical facility requires specialized expertise. Contact RSP Engineers to leverage our nationwide experience. We provide comprehensive site engineering services for the land development industry, guiding projects from initial feasibility and zoning compliance through final design, permitting, and construction. Let our team ensure your project starts on a solid foundation.
Conclusion
A data center’s construction entrance is far more than a simple driveway; it is a piece of critical infrastructure that enables the entire project. Its design demands a rigorous civil engineering approach that addresses geometric safety, structural durability, and complex regulatory approvals. By focusing on a robust pavement design, ensuring adequate vehicle stacking, and engaging in proactive agency review coordination, developers can create an entrance that serves the demanding construction phase safely and efficiently, setting the stage for a successful project delivery.
FAQs
-
The process should begin during the initial due diligence phase of site selection. Securing access permits from roadway authorities can be a long-lead-time item, sometimes taking six months or more. Starting early de-risks the project schedule and ensures the chosen access point is viable before significant capital is invested.
-
Applications are often rejected for failing to meet the agency’s safety standards. Common reasons include inadequate sight distance, a substandard geometric design that doesn’t safely accommodate truck turning movements, or an incomplete or flawed traffic impact study that doesn’t sufficiently address the project’s impact on the local road network.
-
Yes, and this is often the most efficient approach. It involves designing the entrance from the outset to meet both the heavy-load requirements of construction and the final geometric, aesthetic, and zoning compliance standards for permanent operation. This avoids the cost and disruption of building a temporary entrance only to tear it out and replace it later.
