Data Center Water Storage Tank Planning
A guide to planning on-site water storage for data centers, covering sizing for fire and cooling, tank selection, geotechnical needs, and permitting. Learn more from RSP Engineers.
Sizing for Fire Suppression and Cooling Ride-Through
The primary function of an on-site water tank is to guarantee water availability when municipal systems are unavailable or insufficient. Sizing this tank is a critical calculation based on two distinct operational needs. The first is fire suppression, which is dictated by National Fire Protection Association (NFPA) standards and the requirements of the local fire marshal. This calculation involves determining the required fire flow in gallons per minute (GPM) and the necessary duration, often two to four hours, resulting in a dedicated fire protection reserve volume that must be maintained at all times. The second critical need is cooling system ride-through. Many data centers use evaporative cooling systems that require a constant supply of makeup water. During a municipal water outage, the on-site tank must provide this water to prevent the facility from overheating. The required volume depends on the cooling load, evaporation rate, and the desired ride-through duration, which could range from several hours to multiple days. A thorough civil engineering analysis is required to calculate both volumes and determine if they can be combined in a single tank with a dedicated fire reserve or if separate tanks are more practical.
Tank Type Selection: Ground-Level vs. Elevated Storage
Comparison of Water Storage Tank Materials and Types
| Tank Type | Key Advantages | Primary Considerations | Typical Applications |
|---|---|---|---|
| Bolted Steel (Glass-Fused or Epoxy-Coated) | Faster field erection, expandable, cost-effective for large volumes. | Requires periodic inspection of bolts and sealants; coating integrity is critical. | Large-capacity fire protection and process water storage. |
| Welded Steel | Extremely durable, long service life, monolithic structure. | Higher initial cost, longer field construction time, requires specialized labor. | Municipal water storage, large industrial facilities, high-seismic areas. |
| Precast Concrete | High durability, low maintenance, resistant to corrosion and impact. | Heavy panel weight requires large cranes; joint sealing is critical. | Underground or partially buried tanks, high-security sites. |
| Cast-in-Place Concrete | Highly customizable shape and size, very long lifespan. | Longest construction schedule, highest initial cost. | Architecturally integrated tanks, underground vaults, unique site constraints. |
| Fiberglass Reinforced Plastic (FRP) | Excellent corrosion resistance, lightweight, low maintenance. | Generally limited to smaller volumes compared to steel or concrete. | Storage of treated or deionized water, smaller process water applications. |

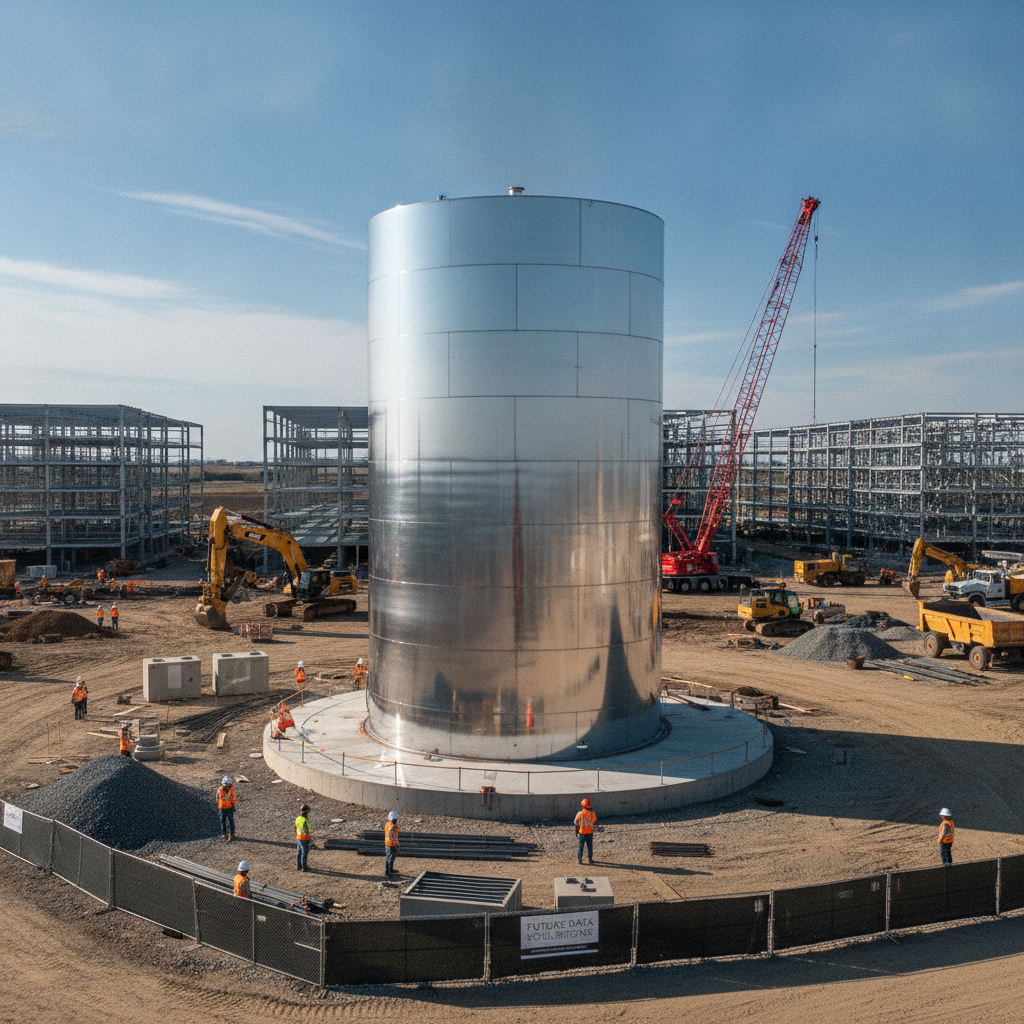

Once the volume is determined, the project team must select the appropriate tank type. The most common options are ground-level storage tanks and elevated water tanks. Ground storage tanks are cylindrical structures built on a concrete foundation at grade. They are cost-effective and easier to construct but require a dedicated fire pump house to generate the pressure needed for fire suppression systems. The design must account for the net positive suction head (NPSH) required by the pumps, influencing the tank’s outlet configuration and elevation. Elevated water tanks, in contrast, use gravity to provide water pressure, potentially reducing reliance on fire pumps and their associated power and maintenance needs. However, they have a significantly higher capital cost, a larger visual profile, and more complex foundation requirements. The choice between them involves a trade-off analysis considering the project’s budget, site footprint constraints, reliability targets, and the overall site development plan.
Site Planning, Setbacks, and Foundation Design
Siting the water storage tank is a crucial step in the site plan design process. The tank must be located with adequate access for maintenance vehicles and clear of underground and overhead utility easements. Proper setbacks from property lines, buildings, and critical infrastructure must be maintained. Tank siting and setback requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. Because of the immense weight of the stored water, foundation design is paramount. A comprehensive Geotechnical Engineering investigation is non-negotiable. This investigation, resulting in a Geotechnical soil report, determines the soil’s bearing capacity and informs the design of the foundation, which is typically a reinforced concrete ringwall or mat slab. The design must also account for seismic design categories and wind loads specific to the project location, ensuring the tank and its anchorage can withstand environmental forces.
Water Quality Management and Turnover
Water stored for long periods can become stagnant, leading to biological growth, sediment buildup, and loss of disinfectant residual. This poses a risk to both cooling systems and fire suppression infrastructure. An effective water quality management plan is essential. This often involves designing a system to ensure regular water turnover, where fresh water is introduced and older water is consumed. A common strategy is to use the tank for daily cooling tower makeup, which naturally cycles the water. If this is not feasible, a dedicated circulation system with a small pump may be required. In all cases, the design must comply with public health regulations and industry best practices, such as AWWA standards. Provisions for sampling ports, access hatches for cleaning, and a means of disinfection are critical components of a well-designed system.
Environmental and Climate Considerations
The tank’s design must be robust enough to handle local environmental conditions. In colder climates, freeze protection is a major concern. This can be addressed with tank insulation, immersion heaters, and circulation systems to prevent ice formation, which can damage the tank structure and block outlets. The design must also incorporate a thorough wind load analysis to ensure the structural integrity of the tank shell and roof, especially for taller ground-level tanks. Furthermore, the tank and its foundation must be designed to withstand seismic forces as defined by building codes like ASCE 7. The seismic loading requirements will dictate the foundation design, anchorage details, and potentially the need for flexible pipe connections. Proper stormwater drainage around the tank foundation is also critical to prevent erosion and protect the foundation from water infiltration.
Instrumentation, Controls, and Alarms
Modern water storage tanks are not passive vessels; they are actively monitored systems. A suite of instrumentation is necessary to provide operators with real-time status. This includes level sensors (e.g., ultrasonic or pressure transducers) to monitor water volume, temperature sensors for freeze protection systems, and flow meters on fill and discharge lines. These instruments must be integrated with the facility’s Building Management System (BMS) or a dedicated SCADA system. This integration enables automated control of fill valves and circulation pumps. It also provides critical alarms for conditions such as high or low water levels, low temperature (freeze warning), and pump or heater failure. These alarms are essential for ensuring the tank is always ready for a fire or cooling emergency and for facilitating proactive maintenance.
RSP’s Approach to Water Storage Tank Integration
At RSP Engineers, we approach on-site water storage as an integrated component of the overall site development strategy. Our process begins with a thorough needs assessment, collaborating with the client, fire protection engineer, and mechanical engineer to define the required volumes and performance criteria. Our team of Civil Engineers then leads the utility coordination, geotechnical investigation, and site plan design to ensure the tank is sited and supported correctly. We manage the complex permitting process, interfacing with local building departments, fire marshals, and health authorities to secure approvals. By overseeing the design from concept through construction administration, we ensure the final system is resilient, compliant, and maintainable, providing the reliability that mission-critical facilities demand. We are one of the leading Civil Engineering firms in the nation for this type of specialized work.
Common Challenges in Tank Design and Permitting
Developing on-site water storage presents several common challenges. Underestimating geotechnical constraints can lead to costly foundation redesigns and project delays. Unidentified utility conflicts below ground can force last-minute tank relocations, disrupting the entire site layout. Navigating the detailed requirements of the fire marshal and other review agencies requires deep experience with local codes and NFPA standards. Another frequent issue is failing to plan for long-term inspection and maintenance access, which can create operational headaches for the facility’s lifetime. Finally, balancing the often-competing demands of fire protection, cooling ride-through, and water quality in a single, cost-effective design requires careful value engineering and collaboration between all design disciplines.
Partner with RSP Engineers for Your Mission-Critical Infrastructure
Successfully integrating a large-scale water storage system into a data center campus requires specialized expertise. The team at RSP Engineers provides the comprehensive site engineering services needed to navigate this complex process. From initial feasibility studies and site development planning to detailed design and permitting, we ensure your critical water infrastructure is reliable, compliant, and built to last. Contact us to discuss how our Civil Engineers can support your next mission-critical project.
Conclusion
On-site water storage is a foundational element of data center resilience. Proper planning involves more than just specifying a tank; it requires a holistic civil engineering approach that considers fire and cooling demands, geotechnical conditions, and complex regulatory landscapes. By focusing on detailed geotechnical investigation, robust foundation design, and proactive utility coordination, developers can ensure this critical asset provides unwavering support for their facility’s operations for decades to come.
FAQs
-
The total volume is a composite calculation. It includes the dedicated fire suppression reserve, which is based on the required flow rate (GPM) and duration (hours) mandated by NFPA standards and the local fire marshal, plus the volume needed for cooling system ride-through during a projected municipal water outage.
-
Permitting processes vary, but they generally involve a site plan design review for zoning and setback compliance, a building permit for the foundation and tank structure, a review by the fire marshal for fire code compliance, and often a review by the local health department or environmental agency to ensure water quality protection.
-
Not necessarily. A single tank can often serve both purposes, but it must be designed with a guaranteed, inviolable reserve for fire protection. This is typically achieved by placing the cooling system outlet higher than the fire pump outlet. A combined system requires careful management of water turnover to prevent stagnation.
