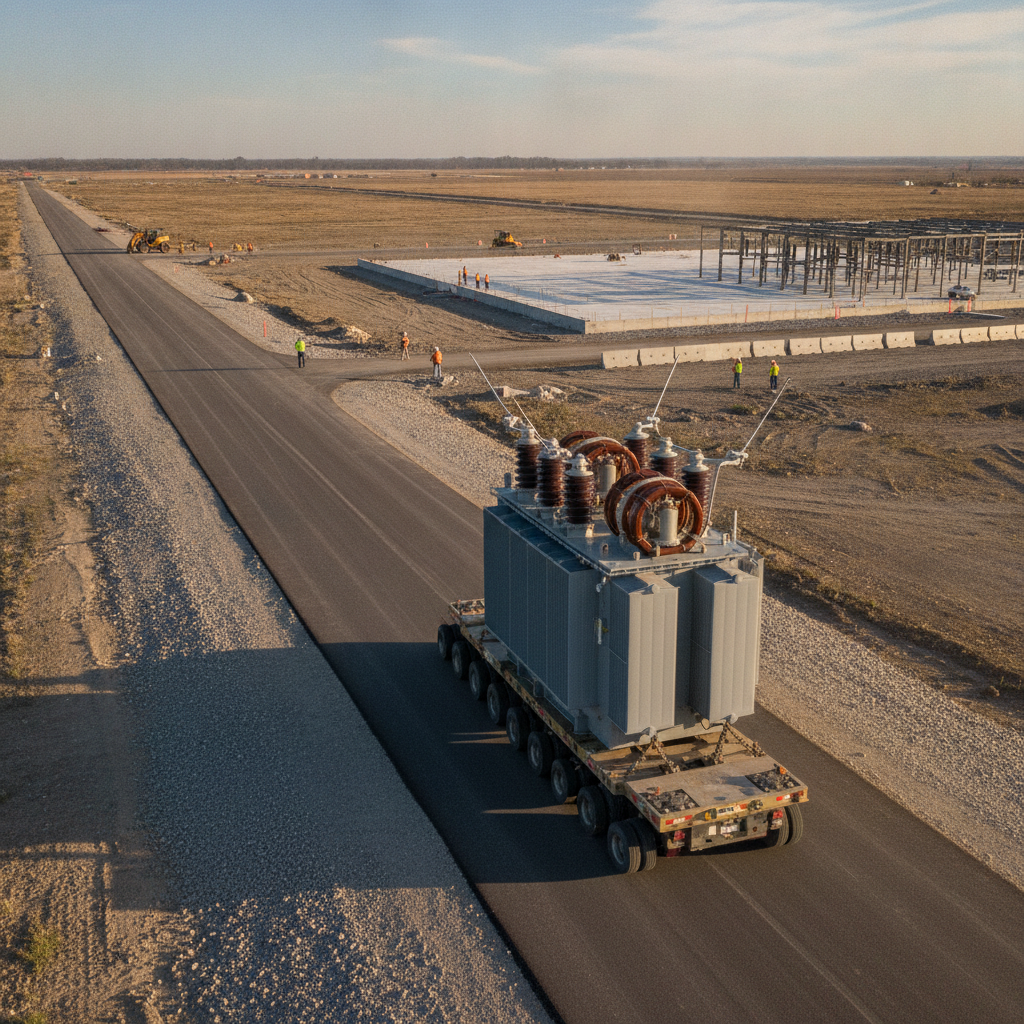

Data Center Access Road Geometry for Oversized Equipment
A technical guide to designing data center access roads for oversized and overweight equipment. Learn about turning radii, vertical grades, pavement design, and permitting from RSP Engineers.
Defining the Design Vehicle for Mission-Critical Deliveries
The first step in designing a heavy haul access road is to identify the controlling design vehicle. This is not a typical delivery truck but a highly specialized multi-axle transporter carrying equipment that can weigh hundreds of tons. The specifications for this vehicle—including its length, axle spacing, turning radius, and ground clearance—will dictate the entire road design. Our team of Civil Engineers works directly with the client, their equipment vendors, and the specialized hauling contractor to obtain these critical vehicle specifications before design begins. This early coordination is non-negotiable. Assuming a standard vehicle model will lead to a design that is fundamentally flawed. We analyze the specific transport configuration for the heaviest components, such as transformers or generators. This analysis informs the required lane widths, intersection geometry, and vertical clearances needed for safe passage. The goal is to create a design baseline that accommodates the most extreme delivery scenario the facility will ever face, preventing costly last-minute modifications or reliance on unproven workarounds during a critical delivery.
Horizontal Geometry: Radii, Lane Widths, and Clearances
Access Road Design Parameter Comparison
| Design Parameter | Standard Commercial Road | Data Center Oversized Load Route |
|---|---|---|
| Controlling Design Vehicle | WB-67 Semi-Trailer | Specialized Multi-Axle Transporter (Project-Specific) |
| Minimum Centerline Turning Radius | 50-75 feet | 100-200+ feet |
| Lane Width (Tangent) | 12 feet | 16-20 feet |
| Maximum Longitudinal Grade | 8-12% | 2-5% |
| Pavement Section | Standard-duty asphalt/concrete over aggregate base | Heavy-duty reinforced concrete or deep-strength asphalt over stabilized subgrade |
| Underground Structure Requirement | Standard load rating (e.g., H-20) | Specialized structural analysis and reinforcement for extreme axle loads |
| Vertical Clearance | 14.5 feet | 18+ feet, verified along entire route |
Standard intersection and curve radii are inadequate for the long, multi-axle vehicles used in heavy hauling. The primary challenge is off-tracking, where the rear wheels of the vehicle follow a much tighter path than the front wheels. To accommodate this, access roads require significantly larger turning radii. The design must provide a swept path that is free of obstructions like curbs, utility poles, fire hydrants, and security bollards. This often involves creating large, paved aprons at intersections or designing simple, sweeping curves instead of sharp turns. Lane widths must also be increased, particularly on curves, to provide adequate clearance and maneuverability. A typical 12-foot lane is often insufficient. The design must also consider a clear zone on either side of the pavement, ensuring no permanent structures impede the vehicle’s path. It is crucial to remember that design standards and permitting requirements for roadway geometry vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A comprehensive site plan design will clearly delineate these oversized access corridors and protected clear zones.
Vertical Geometry: Managing Grades and Vertical Curves
The vertical profile of an access road is just as critical as its horizontal layout. Heavy transport vehicles have immense weight and limited power, making steep grades a significant obstacle. The longitudinal grade of the access road should be kept to a minimum, typically much flatter than a standard commercial driveway, to ensure the transport vehicle can maintain traction and momentum. Abrupt changes in grade can be disastrous for vehicles with low ground clearance. A sharp crest vertical curve can cause the trailer to become high-centered, lifting the drive wheels off the ground, while a sharp sag vertical curve can cause the middle of the trailer to bottom out. The civil engineering design must incorporate long, gentle vertical curves to provide a smooth transition between different grades. This requires careful grading design and earthwork analysis to create a profile that is both functional for oversized loads and integrated with the site’s overall stormwater management system.
Pavement and Structural Design for Extreme Loads
The immense weight of oversized equipment imposes extreme stress on the underlying infrastructure. A standard-duty pavement section designed for cars and delivery trucks will fail catastrophically under a multi-hundred-ton load. The pavement design must be engineered specifically for the anticipated axle loads, which can be several times higher than on a public highway. This typically involves a much thicker aggregate base course and a robust surface layer of heavy-duty asphalt or reinforced concrete. This structural consideration extends below the surface. Any underground utilities, culverts, or vaults crossing the access path must be analyzed for their structural capacity. A shallowly buried storm drainpipe that is perfectly adequate for normal traffic may be crushed by a heavy haul vehicle. The design may require reinforcing existing structures, installing load-distributing concrete slabs, or rerouting utilities away from the heavy haul path. A thorough geotechnical investigation is essential to determine the soil’s bearing capacity and inform a resilient pavement and structural design.
Route Verification and Logistics Planning
A successful design must extend beyond the property line. The entire delivery route, from the nearest major highway to the equipment pad, must be verified. This process, known as route verification, involves a detailed survey of public and private roads to identify potential choke points. Obstacles can include low overhead power lines, bridges with insufficient weight ratings, tight intersections in town, and restrictive roundabouts. This analysis is a critical component of project due diligence and requires close utility coordination. The findings from the route survey inform both the site design and the logistics plan. In some cases, the route may require temporary modifications, such as lifting utility lines or laying down steel plates over sensitive areas. This phase also involves securing all necessary oversized load permits from the relevant transportation authorities. Effective logistics coordination between the engineering team, the client, the hauling contractor, and multiple public agencies is essential for a seamless delivery.
Our Process for Ensuring Successful Equipment Delivery
At RSP Engineers, we approach data center access as a critical infrastructure system. Our process is designed to identify and mitigate risks early, ensuring a predictable and successful outcome. We are one of the leading Civil Engineering firms providing comprehensive site engineering services for mission-critical projects nationwide. Phase 1: Feasibility and Route Analysis: We begin during site selection, performing high-level route studies to identify potential logistical constraints and inform due diligence. We work with equipment vendors to define the controlling design vehicle and establish a basis of design. Phase 2: Detailed Engineering Design: Our team develops a complete set of construction documents, detailing the horizontal and vertical geometry, grading and drainage design, heavy-duty pavement sections, and any necessary structural reinforcements for crossings. Phase 3: Agency Permitting and Coordination: We manage the complex process of securing permit submittals and approvals from all authorities having jurisdiction. This includes site development permits as well as coordination for transportation and oversized load permits. Phase 4: Construction Administration and Verification: We provide robust construction administration services to ensure the access road is built exactly to specification. We perform final checks and as-built surveys to verify the route is clear and ready before the scheduled delivery.
Common Issues and Design Oversights
Even with careful planning, several common oversights can jeopardize an oversized equipment delivery. A primary issue is failing to account for vertical clearance beneath on-site infrastructure, such as pipe racks between a central utility plant and the data hall. Another common mistake is placing permanent features like monument signs, security fencing, or landscaping too close to the required swept path. Finally, underestimating the structural requirements for crossing underground utilities is a frequent and costly error. Proactive civil engineering and interdisciplinary coordination are the best defense against these preventable problems.
Your Partner in Mission-Critical Site Development
Ensuring your critical equipment arrives safely and on schedule requires specialized expertise in roadway engineering, structural design, and logistical planning. The team at RSP Engineers provides the comprehensive site development services needed to navigate these complex challenges. From initial route feasibility studies to final construction administration, we deliver robust designs that protect your investment and your project timeline. Contact us today to discuss the access requirements for your next mission-critical facility.
Conclusion
Designing an access road for oversized equipment is a foundational task in data center development that demands meticulous attention to detail. It is a highly specialized civil engineering discipline that goes far beyond standard road design. By focusing on a project-specific design vehicle, carefully engineering the horizontal and vertical geometry, and ensuring the structural integrity of the entire route, developers can mitigate significant project risk. Proactive site development and logistics planning are the keys to a successful delivery and a fully operational facility.
FAQs
-
The design vehicle is the largest, heaviest, and most dimensionally constrained vehicle and load combination that will access the site. For data centers, this is typically a specialized multi-axle transporter carrying a primary transformer, generator, or chiller module, not a standard semi-trailer.
-
Planning should begin during the site selection and due diligence phase. A preliminary route verification can identify fatal flaws before land is even acquired. Detailed design of the on-site access road should be a priority during the initial site development design stages.
-
Not always. A thorough route survey is required to verify the capacity of public infrastructure. This includes checking bridge weight limits, overhead clearances, and intersection geometry. Coordination with local and state transportation agencies is essential to secure oversized load permits and plan any necessary temporary modifications or escorts.
