Water Reuse Opportunities on Data Center Campuses
Explore practical water reuse opportunities for data center campuses, including condensate capture, blowdown treatment, and stormwater harvesting. Learn how expert civil engineering can reduce water d
The Critical Role of Water in Data Center Cooling Operations
Understanding why data centers consume vast quantities of water is the first step in identifying conservation opportunities. The primary driver is heat rejection. Servers generate immense thermal loads that must be continuously removed to maintain optimal operating conditions. While various cooling methods exist, many large-scale facilities rely on evaporative cooling systems, which use the phase change of water from liquid to vapor to dissipate heat efficiently. This process is central to maintaining a facility’s target Power Usage Effectiveness (PUE). The metric directly measuring water consumption is Water Usage Effectiveness (WUE), which quantifies the amount of water used per kilowatt-hour of IT equipment energy. In evaporative cooling towers, water is lost through evaporation, drift, and a process called blowdown. As water evaporates, dissolved minerals and solids become concentrated. To prevent scaling and corrosion, a portion of this mineral-rich water, known as cooling tower blowdown, is periodically discharged and replaced with fresh makeup water. This blowdown stream, along with the constant need for makeup water, represents the largest component of a data center’s water footprint and a prime opportunity for reuse.
Identifying Key On-Site Water Sources for Reuse
Comparison of On-Site Water Reuse Opportunities
| Reuse Source | Typical Water Quality | Common Applications | Key Engineering Considerations |
|---|---|---|---|
| HVAC Condensate | High (low TDS, near distilled) | Cooling tower makeup, irrigation, toilet flushing | Requires dedicated collection piping from AHUs/CRAHs; minimal treatment (e.g., filtration) needed; consistent but relatively low volume. |
| Stormwater/Rainwater | Variable (low TDS but potential for sediment, pollutants) | Irrigation, cooling tower makeup (with treatment) | Requires large roof/pavement collection area, cisterns/ponds for storage, and robust drainage design; treatment needed to remove debris and contaminants. |
| Cooling Tower Blowdown | Low (high TDS, treatment chemicals) | Recirculation to cooling towers, dust control, irrigation (after significant treatment) | Requires advanced treatment (e.g., reverse osmosis) to reduce mineral concentration; produces a concentrated brine waste stream that needs disposal. |
| Greywater (Support Buildings) | Moderate (contains soaps, organics) | Toilet flushing, landscape irrigation | Requires separate plumbing (dual-pipe system); biological and chemical treatment needed; subject to strict health department regulations. |
| Treated Municipal Effluent (Purple Pipe) | Consistent (treated to non-potable standards) | Cooling tower makeup, irrigation | Dependent on availability from local utility; requires connection to a separate reclaimed water main; reduces on-site treatment complexity but relies on external supply. |
A data center campus is a surprisingly rich environment for water harvesting. A comprehensive site development plan will identify and quantify several key sources that can be captured and treated for non-potable uses. Each source has unique characteristics regarding volume, quality, and collection complexity, requiring a tailored engineering approach. Key sources include: Cooling Tower Blowdown: While high in total dissolved solids (TDS), this stream is a consistent and predictable source. With advanced treatment like reverse osmosis, a significant portion of blowdown water can be recovered and returned to the cooling loop, drastically reducing both makeup water demand and sewer discharge fees. HVAC Condensate: Air handling units (AHUs) and computer room air handlers (CRAHs) produce a steady stream of high-quality distilled water as they dehumidify the air. This condensate capture stream is clean, requires minimal treatment, and is ideal for direct reuse as cooling tower makeup water. Stormwater and Rainwater Harvesting: The large, impervious roof and pavement areas of a data center campus are perfect for capturing significant volumes of rainwater. A well-designed stormwater management system can direct this runoff to cisterns or retention ponds for treatment and subsequent use in irrigation or as a supplemental source for cooling towers. Greywater: Support facilities, such as on-site administrative offices or security buildings, generate greywater from sinks and showers. While a smaller volume, this source can be collected and treated for toilet flushing or landscape irrigation, further reducing the demand for potable water.

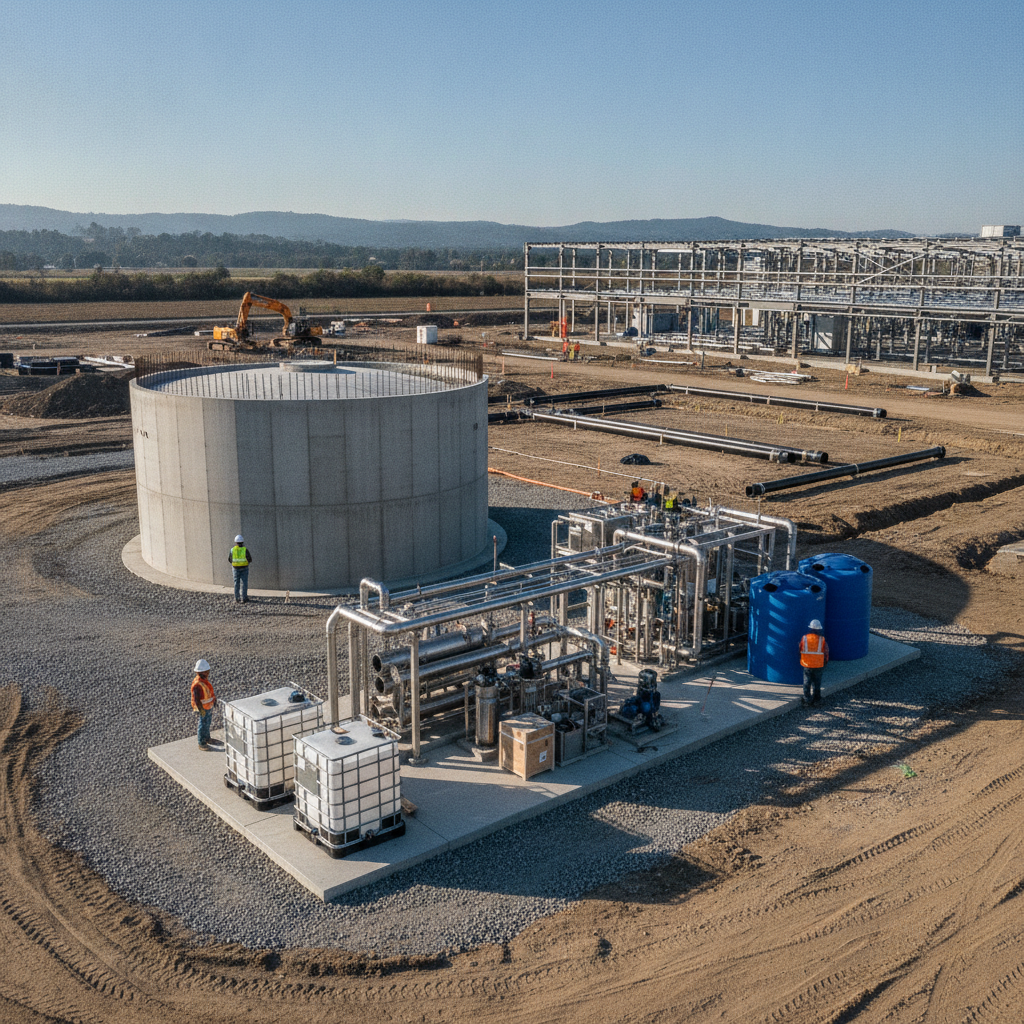

Treatment and Storage Systems for Reclaimed Water
Harnessing these alternative water sources requires robust infrastructure for treatment, storage, and distribution. The level of treatment depends entirely on the source water quality and the intended end-use. For instance, clean HVAC condensate may only require basic filtration, while treating cooling tower blowdown necessitates a more complex system. A typical water treatment train might include multi-media filtration, ultrafiltration, and reverse osmosis (RO) to remove suspended solids, organics, and dissolved minerals. UV disinfection is often used as a final step to ensure microbial control. Properly sized storage is also critical to buffer against supply and demand fluctuations. This often involves the design and installation of large-scale underground cisterns or above-ground tanks. The entire system—from collection points to treatment skids to storage and pumping—must be integrated into the overall site plan design. This requires careful coordination between civil, mechanical, and plumbing engineers to ensure all components work together seamlessly and meet the stringent reliability standards of a mission-critical facility. The design must also account for maintenance access, system redundancy, and fail-safes to protect facility operations.
Navigating the Regulatory and Permitting Landscape for Water Reuse
Implementing a water reuse system involves navigating a complex web of local, state, and federal regulations. The specific requirements for water quality, cross-connection prevention, and discharge limits are highly site-specific and require early and continuous engagement with regulatory bodies. Permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. This includes securing approvals from the local health department, the state environmental agency, and the municipal water and sewer utility. Key regulatory considerations include obtaining modifications to an existing NPDES permit if the reuse system alters the volume or character of the final discharge. Additionally, the reclaimed water must meet strict quality standards to prevent health risks and protect equipment from scaling or corrosion. A thorough permitting strategy, developed by a knowledgeable civil engineering firm, is essential. This strategy should address everything from initial concept approval to final construction inspection, ensuring that the design complies with all applicable building codes, plumbing codes, and environmental laws governing water reclamation and reuse.
Integrating Water Reuse into Civil Engineering and Site Design
A successful water reuse strategy cannot be an afterthought; it must be a foundational element of the land development process from the earliest stages of project planning. The civil engineering team plays a central role in integrating these systems into the campus layout. This includes orienting buildings to maximize rainwater harvesting, designing grading and drainage plans to direct stormwater to collection points, and allocating sufficient space for treatment facilities, storage tanks, and pump stations. Utility design becomes significantly more complex. The site will require multiple, distinct piping networks for potable water, sanitary sewer, fire protection, and one or more reclaimed water loops. Careful utility coordination is paramount to prevent cross-connections and ensure proper routing and separation. The design must also consider the geotechnical implications of large underground storage tanks and the structural requirements for treatment equipment pads. This integrated approach ensures that the water reuse system is not only functional but also cost-effective and seamlessly incorporated into the site’s overall infrastructure.
How RSP Engineers Approaches Water Reuse System Integration
At RSP Engineers, we follow a systematic process to help data center developers implement effective and compliant water reuse strategies. Our approach ensures that sustainability goals are met without compromising the reliability and performance of the mission-critical facility. Water Balance and Feasibility Assessment: We begin by creating a detailed water balance model for the campus, quantifying all water inputs and outputs. This allows us to identify the most viable reuse opportunities and conduct a feasibility study, including a preliminary ROI analysis. Technology Selection and Conceptual Design: Based on the assessment, our team evaluates various treatment technologies and develops a conceptual site plan design. We work with the client to select a solution that balances capital cost, operational complexity, and water savings. Permitting and Agency Coordination: We take a proactive approach to permitting, engaging with regulatory agencies early in the design process. Our deep understanding of the regulatory landscape helps streamline approvals and mitigate project delays. Integrated Engineering and Construction Documents: Our Civil Engineers collaborate closely with mechanical, electrical, and plumbing (MEP) teams to produce a fully integrated set of construction documents, ensuring all systems are coordinated. Construction Administration and Commissioning Support: During construction, we provide oversight and construction administration to ensure the systems are installed per design specifications. We also assist with the commissioning process to verify performance and compliance.
Common Challenges in Implementing Data Center Water Reuse
While the benefits are significant, developers should be aware of potential challenges. The initial capital expenditure for treatment equipment, storage tanks, and specialized piping can be substantial. The permitting process can be lengthy and complex, especially in jurisdictions with less experience in water reuse projects. Furthermore, these systems add a layer of operational complexity, requiring trained staff for monitoring, maintenance, and water quality management. Finally, physical space on a densely packed data center campus is always at a premium, and finding adequate room for treatment and storage infrastructure requires creative site development solutions.
Partner with RSP Engineers for Sustainable Site Development
Successfully implementing a water reuse strategy requires a partner with deep expertise in mission-critical facility design and a comprehensive understanding of water resource engineering. The team at RSP Engineers provides the integrated civil engineering, permitting, and utility coordination services necessary to turn sustainability goals into reality. We help clients navigate complex regulatory environments, design efficient and reliable systems, and deliver data center campuses that are both high-performing and environmentally responsible. Contact us to discuss how we can optimize your next project’s water strategy.
Conclusion: Building Resilient and Efficient Data Centers
As the demand for data continues to grow, so does the responsibility of the industry to manage its environmental footprint. Water reuse is a powerful tool that moves beyond simple conservation to create a circular water economy within the data center campus. By integrating strategies for capturing and treating on-site water sources, developers can enhance operational resilience, control costs, and demonstrate a tangible commitment to sustainability. This requires a forward-thinking approach to site development, grounded in expert civil engineering and a proactive permitting strategy, to build the data centers of the future.
FAQs
-
Savings vary widely based on climate, cooling design, and the specific reuse strategies implemented. However, it’s not uncommon for a comprehensive system combining condensate capture and blowdown recycling to reduce potable water consumption for cooling by 50-80% or more.
-
The primary hurdles often involve demonstrating compliance with public health standards to prevent cross-connections with potable water systems and meeting stringent water quality requirements set by state and local environmental and health departments. Early and transparent agency review is key to navigating this process.
-
Generally, yes. With proper treatment to control minerals, biologics, and corrosive elements, reclaimed water is an excellent source for cooling tower makeup. The treatment system must be designed to produce water that meets the specific quality parameters required by the cooling tower manufacturer to protect the equipment and maintain efficiency.
