Tailwater Effects on Data Center Drainage Systems
Learn how high tailwater conditions impact data center drainage systems. Our civil engineering experts explain modeling, design responses, and permitting for mission-critical facilities.
Defining Tailwater and Its Impact on Site Drainage

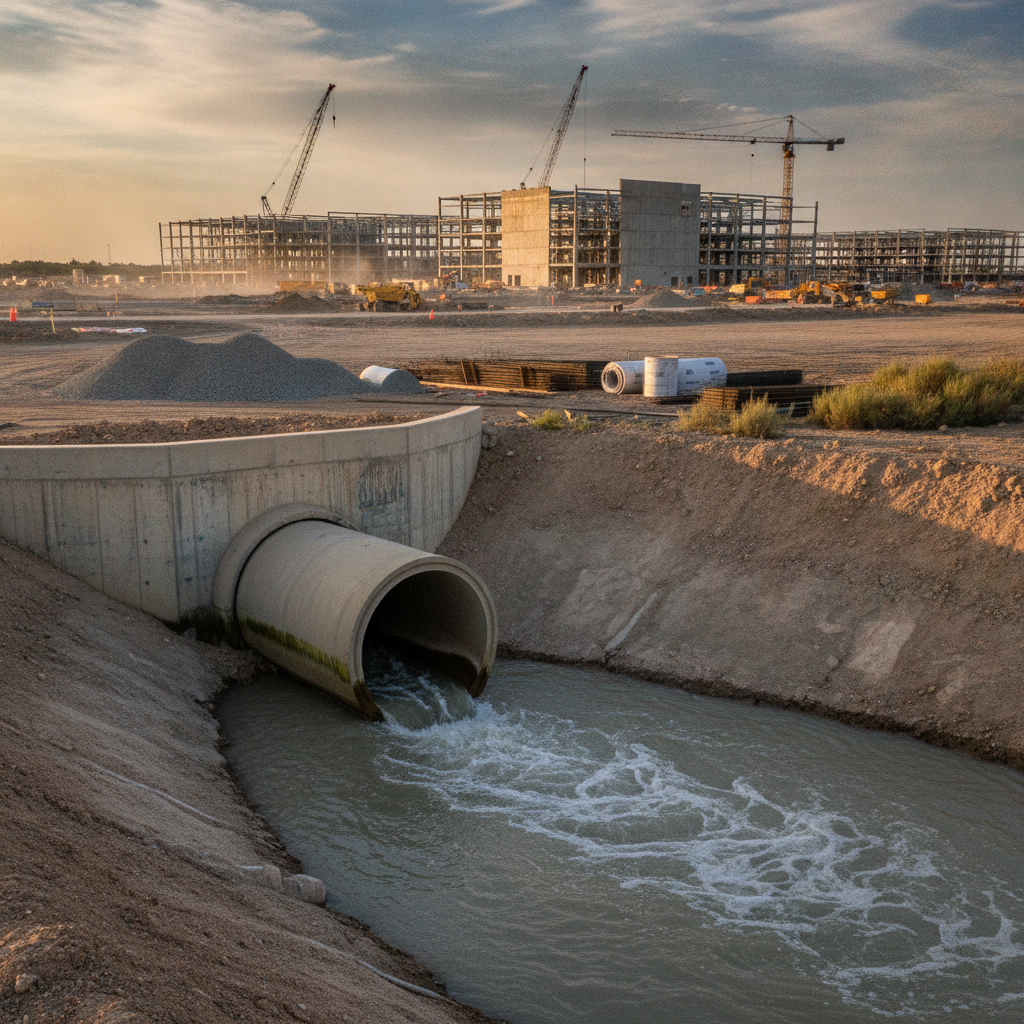

In civil engineering, tailwater refers to the water surface elevation at the downstream side of a hydraulic structure, such as the outfall pipe of a stormwater pond. When this elevation is high, it reduces the hydraulic gradient—the difference in elevation between the water on-site and the water in the receiving channel. This reduced gradient significantly decreases the velocity and capacity of the discharge pipe. In severe cases, if the tailwater elevation rises above the on-site water level, it can completely stop the discharge or even cause backflow into the site’s drainage system. High tailwater conditions are typically caused by factors external to the project site itself. These can include the flood stage of an adjacent river or canal, peak water levels in a downstream regional stormwater facility, or high tide conditions in coastal areas. A site’s drainage system does not operate in a vacuum; it is part of a larger watershed, and its performance is directly dependent on these downstream conditions. Ignoring tailwater is a critical oversight that can lead to inaccurate drainage calculations and an undersized or ineffective stormwater management system.
The Unique Drainage Risks for Mission-Critical Facilities
Tailwater Mitigation Strategy Comparison
| Strategy | Primary Function | Key Design Consideration | Relative Cost |
|---|---|---|---|
| Raised Building Pads | Elevates critical infrastructure above flood levels. | Requires significant earthwork and coordination with building architecture. May require a Geotechnical soil report. | High |
| Oversized Detention Ponds | Increases on-site stormwater storage capacity. | Requires more land area; pond geometry must be optimized for slow release. | Moderate |
| Flap Gates / Check Valves | Prevents backflow into the site's pipe system. | Proper specification for head pressure; requires routine inspection and maintenance. | Low |
| Pumped Discharge System | Actively forces water out against high tailwater. | Requires mechanical/electrical design, redundant power, and higher operational costs. | Very High |
| Redundant Outfalls | Provides alternative discharge paths. | Only feasible if multiple receiving bodies with different hydraulic profiles are available. | Moderate to High |
For a typical commercial development, minor, temporary flooding might be an inconvenience. For a data center, it’s a disaster. These mission-critical facilities have zero tolerance for water intrusion. Flooding can damage sensitive servers, compromise electrical systems, and disrupt the sophisticated cooling infrastructure necessary to prevent equipment from overheating. The financial and reputational costs of downtime are immense, making robust drainage design a primary pillar of risk mitigation. The challenge is that standard drainage design methodologies, which may be adequate for other types of projects, often fail to account for the extreme scenarios that could impact a data center. A design based solely on the site’s own rainfall and runoff, without considering a coincident downstream flood event, presents a significant vulnerability. Therefore, the civil engineering approach for data centers must be more rigorous, incorporating conservative assumptions and redundant systems to ensure continuous operation under the most adverse conditions.
Modeling Coincident Events and Boundary Conditions
Accurate analysis of tailwater risk requires sophisticated hydrologic and hydraulic modeling. The key is to simulate a “coincident event,” where a significant design storm occurs over the project site at the same time the receiving water body is at a high stage. This is accomplished in modeling software by setting a precise downstream boundary condition that reflects the peak water surface elevation of the river, channel, or downstream system. This forces the model to calculate the drainage system’s performance under the most restrictive discharge conditions. Determining the appropriate design criteria for these models is a critical step that involves extensive research and agency coordination. Modeling requirements and accepted design storm criteria for coincident events can vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. This often involves analyzing FEMA flood maps, reviewing regional watershed studies, and engaging in early discussions with permit reviewers to agree on a modeling approach that satisfies all regulatory concerns and adequately protects the facility.
Key Design Responses to Mitigate Tailwater Risk
Once the potential tailwater impacts are modeled, the civil engineering team can implement specific design strategies to mitigate the risk. These solutions focus on either preventing backflow, accommodating restricted outflow, or elevating the facility above potential floodwaters. Raised Finished Floor Elevations: The most direct solution is to elevate the data center’s main building pad and all critical equipment above the highest projected water surface elevation, including the effects of tailwater. This creates a buffer of safety against even extreme flooding scenarios. Increased Stormwater Storage: If discharge is limited, the water must be stored on-site. This often requires designing larger detention or retention ponds with additional freeboard. The system is designed to hold the excess runoff until downstream tailwater levels recede and normal discharge can resume. Backflow Prevention: Installing mechanical devices like flap gates or check valves on all outfall pipes is a crucial defense. These gates allow water to flow out but automatically close to prevent downstream water from flowing back into the site’s pipe network and ponds. Pumped Discharge Systems: In the most extreme or low-lying situations, a gravity-fed system may be insufficient. A pumped system can be designed to actively force stormwater from the site into the receiving water body, even against a high tailwater head. This adds mechanical complexity and requires redundant power but offers the highest level of control.
Permitting and Regulatory Compliance Challenges
Tailwater analysis is not just an internal design exercise; it is a critical component of the permitting process. Regulatory agencies responsible for stormwater and floodplain management will heavily scrutinize the project’s downstream analysis. They need assurance that the development will not be inundated by off-site conditions and that the project itself will not worsen flooding for adjacent properties. A thorough and well-documented tailwater analysis is essential for a smooth agency review. Projects located near or within a FEMA floodplain face additional regulatory hurdles. If the site design, including grading and stormwater infrastructure, alters the flood storage capacity or conveyance, a Letter of Map Revision (LOMR) or Conditional LOMR (CLOMR) may be required. Furthermore, if the outfall discharges into a designated Water of the U.S., compliance with the federal Clean Water Act, potentially requiring an NPDES permit, will be necessary. Navigating these complex regulatory landscapes requires deep expertise in both engineering and environmental compliance.
The RSP Engineers Approach to Tailwater Analysis
At RSP Engineers, our process for addressing tailwater risk is proactive and data-driven. We integrate this critical analysis from the earliest stages of site development to inform site layout, grading, and infrastructure design. Our approach includes: Comprehensive Due Diligence: We begin by identifying all potential receiving water bodies and researching their hydraulic characteristics. This includes a detailed review of FEMA flood maps, local and regional watershed studies, and any available historical flood data to establish a baseline understanding of tailwater risk. Advanced Hydraulic Modeling: Our team utilizes industry-standard software to build detailed hydraulic models that simulate coincident storm and tailwater events. We work collaboratively with regulatory agencies to establish conservative and defensible boundary condition parameters for our models. Integrated Site plan design: The results of our modeling directly inform the civil engineering design. We work seamlessly with the project’s architects and other consultants to integrate mitigation measures, such as raised finished floors and optimized pond locations, into the overall site plan. Proactive Agency Coordination: We believe in early and frequent communication with reviewing authorities. By presenting our methodology and findings upfront, we can address potential concerns proactively, build consensus on the design approach, and streamline the permit submittals process.
Common Issues and Pitfalls in Tailwater-Impacted Designs
Several common mistakes can compromise a data center’s resilience to tailwater. One of the most frequent is relying on outdated or incomplete data to set the downstream boundary condition, leading to an underestimation of the true risk. Another is failing to consider future conditions, such as projected increases in rainfall intensity or sea-level rise, which can render a design inadequate over the facility’s lifespan. During the design phase, there is often pressure for value engineering that can target critical but misunderstood features like flap gates or extra storage volume. Finally, poor construction sequencing or improper installation of outfall structures and backflow preventers can create a false sense of security, as the system will not perform as designed during a real event. Frequently Asked Questions What is the most common cause of high tailwater for inland data center sites? For inland sites, the most common cause is the flood stage of an adjacent river, stream, or major drainage canal. A large storm event upstream in the watershed can cause water levels to rise significantly, creating a high tailwater condition at the point where the data center’s system discharges. How does a high tailwater condition affect the performance of a stormwater detention pond? High tailwater severely restricts a pond’s ability to discharge water. This means the pond will fill up faster and drain much slower than designed. To compensate, the drainage design must include a larger storage volume to hold the runoff on-site until the downstream water level recedes. Is a flap gate always necessary on a stormwater outfall pipe? Not always, but it is a highly recommended and cost-effective risk mitigation tool for any site with potential tailwater issues. A detailed risk assessment based on the elevation difference between the site and the receiving water body will determine if it’s critical. For a mission-critical facility like a data center, the low cost of a flap gate is excellent insurance against catastrophic backflow. Can a complex tailwater analysis affect my project’s permit approval timeline? Yes, absolutely. Reviewing agencies will pay close attention to the downstream analysis and hydraulic modeling. If the analysis is incomplete, uses incorrect assumptions, or is poorly documented, it will likely trigger multiple rounds of review comments, significantly delaying permit submittals and approvals. How do engineers determine the correct tailwater elevation to use for design? The design tailwater elevation is determined through a combination of sources. It often starts with the base flood elevations shown on FEMA maps. This is then refined using detailed hydrologic and hydraulic modeling of the receiving water body, incorporating specific criteria required by the local or state reviewing agency. The goal is to identify a conservative elevation that represents a realistic worst-case scenario.
Your Partner for Mission-Critical Site Development
Designing for tailwater is a complex challenge that requires a specialized skillset and a forward-thinking approach. The team at RSP Engineers has extensive experience navigating the unique demands of data center site development. We provide the expert civil engineering, complex stormwater management analysis, and strategic permitting guidance necessary to protect your investment and ensure operational resilience. Don’t let a downstream issue create an on-site disaster.
Conclusion
Tailwater is a powerful and often invisible force that can determine the success or failure of a data center’s drainage infrastructure. A proactive approach that prioritizes detailed hydraulic modeling, conservative design assumptions, and robust mitigation strategies is non-negotiable. By treating tailwater analysis as a core component of the design process, developers and their engineering teams can safeguard these vital facilities against flooding. Ultimately, a resilient drainage design is a fundamental investment in the long-term operational continuity and success of any mission-critical project.
