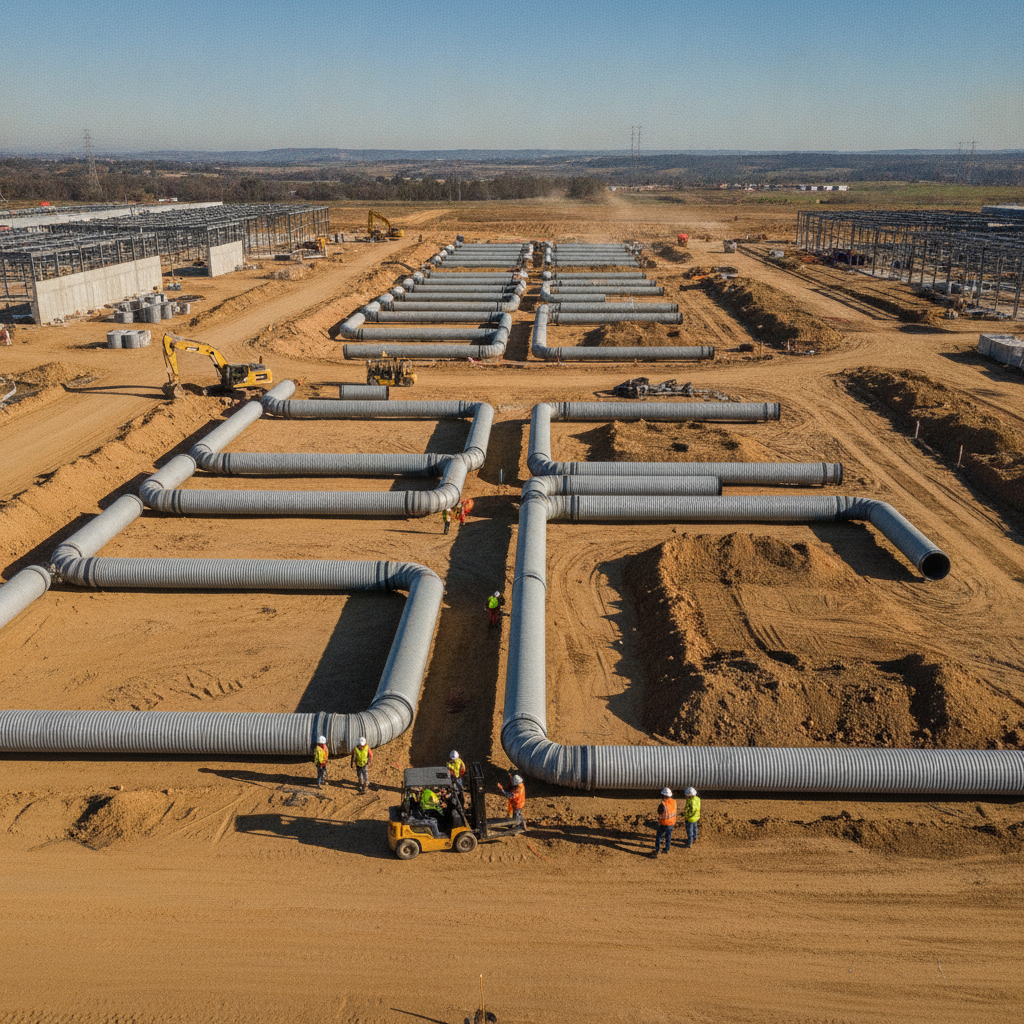

SWMM Modeling for Data Center Pipe Networks
Explore how SWMM modeling and dynamic wave routing are critical for designing resilient stormwater pipe networks for data centers. Learn about surcharging, node flooding, and why steady-state methods
Why Standard Stormwater Calculations Fall Short for Data Centers
For decades, many commercial sites have been designed using steady-state methods like the Rational Method. These approaches are useful for estimating peak flows for sizing individual pipes but operate on a simplified premise that doesn’t account for the dynamic, time-varying nature of storm events and complex pipe networks. For a data center, where even minor localized flooding can compromise equipment or access, this simplified approach introduces unacceptable risk. The sheer scale of impervious surfaces on a data center campus generates immense volumes of runoff, which must be managed by an intricate network of inlets, pipes, and storage facilities. Steady-state methods fail to model critical hydraulic phenomena such as backwater effects, where downstream conditions restrict flow and cause water levels to rise upstream. They cannot simulate surcharging, where pipes flow full under pressure, or the complex interactions within looped or branching pipe networks. A data center’s stormwater management system must perform predictably under a wide range of storm intensities and durations. Relying on simplified calculations can lead to undersized systems, unexpected flooding at key infrastructure points, and costly post-construction retrofits.
Core Components of a SWMM Model for Site Drainage
Comparison: Steady-State vs. Dynamic Wave (SWMM) Modeling
| Feature | Steady-State Method (e.g., Rational Method) | Dynamic Wave Modeling (SWMM) |
|---|---|---|
| Backwater Analysis | Not capable. Assumes uniform flow and cannot model downstream effects. | Fully capable. Accurately models HGL profiles based on downstream tailwater conditions. |
| Surcharge & Pressure Flow | Cannot simulate. Assumes gravity flow within the pipe. | Accurately models pressurized flow when HGL exceeds the pipe crown. |
| Looped & Branched Networks | Limited. Requires manual separation and simplified assumptions. | Effectively models complex, interconnected networks and flow splits. |
| Time-Varying Rainfall | Uses a single peak rainfall intensity for the entire calculation. | Uses a full rainfall hydrograph (e.g., NOAA Atlas 14) to simulate the entire storm event over time. |
| Storage Routing | Requires simplified methods (e.g., Modified Puls) separate from the pipe analysis. | Integrates storage routing directly within the network simulation for accurate timing. |
| Design Application | Suitable for preliminary sizing of simple, linear storm drain runs. | Essential for final design and risk analysis of complex, mission-critical infrastructure. |
A SWMM model is a comprehensive digital representation of a site’s hydrologic and hydraulic characteristics. A Professional Engineer builds the model by defining several key components that work together to simulate the journey of a raindrop from where it lands to its final discharge point. The primary components include subcatchments, which represent the distinct drainage areas like rooftops, parking lots, and green spaces, each with specific properties like area, slope, and imperviousness. The conveyance system is modeled using nodes and links. Nodes represent junctions in the system, such as manholes, inlets, and storage units. Links, typically represented as conduits, connect the nodes and simulate the behavior of pipes, culverts, or open channels. Each conduit is defined by its shape, size, material roughness, and length. Finally, outfalls represent the boundary conditions where the stormwater system discharges to a receiving water body, a municipal storm sewer, or a regional pond. The accuracy of the drainage design depends entirely on how well these components reflect the as-built reality of the site.
Dynamic Wave Routing: Capturing Complex Hydraulic Behavior
The true power of SWMM for data center design lies in its ability to perform dynamic wave routing. This advanced hydraulic calculation solves the full Saint-Venant equations of unsteady flow, allowing it to accurately model the most complex hydraulic conditions. Unlike simpler routing methods, dynamic wave routing accounts for the conservation of both mass and momentum as water moves through the pipe network. This means it can simulate flow reversals, backwater effects from downstream restrictions, and pressurized, surcharged flow—all common occurrences in large, low-slope pipe networks found at data center sites. This level of detail is critical for ensuring system resilience. For example, if a primary outfall is temporarily submerged during a major storm, a dynamic model can predict how water will back up through the system and identify which inlets or manholes are at risk of flooding. These modeling standards and permitting requirements often vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. Using dynamic wave routing provides the design engineer with a clear understanding of the system’s performance under stress, which is essential for protecting mission-critical assets.
Analyzing Surcharging and Node Flooding in Pipe Networks
Two of the most critical outputs from a SWMM analysis are reports on surcharging and node flooding. Surcharging occurs when the hydraulic grade line (HGL)—the level to which water would rise in a vertical tube connected to the pipe—exceeds the crown (top interior surface) of the pipe. This indicates the pipe is flowing full and under pressure. While some surcharging may be acceptable deep within a system, it raises a red flag that the network is nearing its capacity. Node flooding is a more severe condition where the HGL exceeds the ground surface elevation at a node (like a manhole or inlet), causing water to spill out onto the site. SWMM quantifies the volume and duration of flooding at each node, allowing engineers to pinpoint exact failure points in the drainage design. For a data center, node flooding near electrical yards, loading docks, or building entrances is an unacceptable failure. The model allows the civil engineering team to test different pipe sizes, slopes, and storage options to eliminate these flooding risks before a single shovel breaks ground.
Modeling Inlets, Storage, and Outlet Control Structures
An effective stormwater management system does more than just convey water; it also controls its release rate. SWMM excels at modeling the components responsible for this control. The model can simulate the specific hydraulic performance of different storm drain inlets, accounting for how efficiently they capture surface flow and whether they are prone to bypass during intense rainfall. This is crucial for preventing surface ponding in critical operational areas like parking lots and access roads. Furthermore, SWMM can accurately model both above-ground detention ponds and complex underground storage systems, such as pipe arch chambers or concrete vaults. The model simulates how these facilities fill during a storm and how their discharge is controlled by outlet structures like weirs, orifices, or multi-stage control boxes. This detailed modeling is essential for demonstrating compliance with regulations that limit post-development discharge rates to pre-development levels, a common requirement in land development projects nationwide.
Interpreting SWMM Results for Resilient Data Center Design
A SWMM model generates a vast amount of data, and the key to a successful project is the correct interpretation of these results. The civil engineering team analyzes output tables, graphs, and profile plots to assess the system’s performance during simulated design storms (e.g., the 25-year, 24-hour storm event). Key metrics include peak water surface elevations at all nodes, peak flow rates and velocities in all conduits, and the total volume of flooding at any overflow locations. This analysis directly informs design decisions. If a pipe is shown to be severely surcharged, it may need to be upsized. If an inlet is overwhelmed, a larger or more efficient type may be specified. If node flooding occurs, the design might require additional upstream storage or a larger downstream conveyance pipe. This iterative process of modeling, analyzing, and refining the site plan design ensures the final infrastructure is robust, efficient, and fully compliant with all applicable zoning compliance and drainage regulations.
Our Process: Integrating SWMM into Data Center Site Development
At RSP Engineers, we integrate advanced hydraulic modeling as a core component of our site development process for data centers. Our approach ensures that stormwater infrastructure is not just a line item, but a strategic asset contributing to facility resilience. Data Collection & Site Analysis: We begin by gathering high-resolution topographic data, geotechnical information, and all applicable regulatory criteria to establish a baseline for the model. Model Setup & Calibration: Our engineers construct a detailed SWMM model representing the proposed site layout, including all buildings, pavement, utilities, and drainage features. Design Storm Simulation: We simulate a range of design storm events as required by the authority having jurisdiction, analyzing system performance under various stress levels. Results Analysis & Optimization: We meticulously review model outputs to identify and eliminate potential failure points, optimizing the drainage design for both performance and cost-effectiveness. Reporting for Permit Submittals: We prepare comprehensive drainage reports with clear exhibits from the SWMM model to demonstrate regulatory compliance and facilitate efficient agency review.
Common Challenges in Data Center Stormwater Modeling
Even with powerful tools like SWMM, several challenges can arise. Inaccurate or low-resolution topographic survey data can lead to a model that doesn’t reflect real-world conditions. It’s also critical to account for phased build-outs; a model must consider the hydraulic impacts of future expansion to avoid undersizing infrastructure today. Modeling the precise behavior of proprietary inlet structures or complex outlet control devices requires careful attention to manufacturer data. Finally, coordinating the storm drain network with a dense web of other underground utilities (power, data, water, sewer) is a major challenge in utility coordination that must be addressed early in the design process.
Partner with RSP Engineers for Your Mission-Critical Site Design
Designing and permitting a data center requires a deep understanding of the unique risks and regulatory complexities involved. An inadequate stormwater system is not an option. The team at RSP Engineers leverages advanced tools like SWMM to deliver resilient, compliant, and cost-effective site solutions. Our expertise in civil engineering, stormwater management, and utility coordination ensures your mission-critical facility is built on a foundation of security and reliability. Connect with us to discuss how our detailed hydraulic modeling and site engineering services can protect your investment.
Conclusion: Building Future-Proof Infrastructure with Advanced Modeling
For data center developers and operators, SWMM is more than just a design tool—it is a critical risk management platform. By moving beyond simplified calculations and embracing dynamic hydraulic modeling, project stakeholders can gain a clear and accurate understanding of how their site will perform under real-world storm conditions. This foresight allows for the design of robust drainage design systems that protect billions of dollars in assets and ensure operational continuity. Investing in a thorough civil engineering analysis and advanced stormwater management modeling is a fundamental step in building the resilient, future-proof infrastructure the digital world depends on.
FAQs
-
SWMM, or the Storm Water Management Model, is a dynamic rainfall-runoff simulation model developed by the U. S. Environmental Protection Agency (EPA). It is used for data centers because its advanced hydraulic analysis capabilities can accurately predict complex flow behaviors like surcharging and backwater, which is critical for protecting high-value, mission-critical infrastructure from flooding.
-
Yes. SWMM is a comprehensive model that simulates the entire hydrologic cycle on a site. It calculates the amount of runoff generated from different surfaces (subcatchments) based on rainfall data and then routes that flow through the conveyance network of inlets, pipes, and channels (conduits and nodes), providing a complete picture of site stormwater management.
-
SWMM provides detailed, defensible data that demonstrates a design’s compliance with local and state stormwater regulations. The model’s outputs, such as peak flow rates, water surface elevations, and storage volumes, are used in drainage reports submitted to regulatory agencies. This robust documentation streamlines the agency review process and helps secure necessary land development permits.
