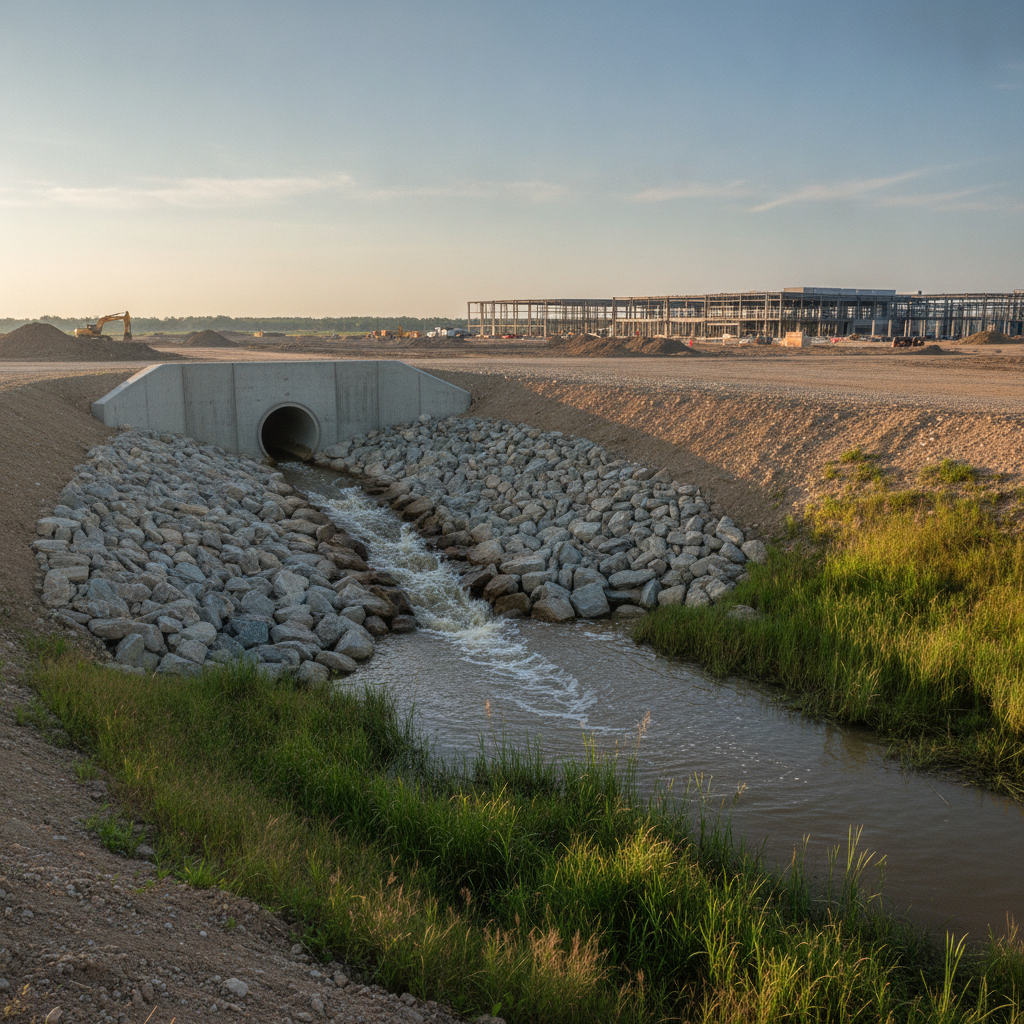

Stormwater Outfall Design for Data Center Campuses
A technical guide to stormwater outfall design for data center campuses. Learn about discharge points, energy dissipation, scour protection, permitting, and downstream stability from civil engineering
Identifying a Viable and Legal Point of Discharge
The first step in outfall design is identifying a legally and physically suitable point of discharge. This is not merely about finding the lowest point on the property. A civil engineer must conduct a thorough downstream analysis to trace the historic and proposed flow path to a receiving water body, such as a stream, river, or engineered channel, that has adequate capacity to accept the new flow without adverse impacts. This analysis confirms the project has a “legal positive outfall,” a fundamental requirement for most development permits. The investigation involves reviewing topographic surveys, aerial imagery, and local drainage maps to understand the downstream system. Key considerations include the condition of the receiving channel, the presence of existing structures like culverts or bridges, and the proximity of downstream properties. The goal is to find a location where the discharge will not increase flood risk or cause erosion on neighboring land. This often requires securing drainage easements across adjacent properties, a process that should be initiated early in the land development timeline.
Hydraulic and Hydrologic Modeling for Outfall Sizing
Comparison of Common Outfall Scour Protection Measures
| Measure | Primary Mechanism | Key Design Considerations | Ideal Application |
|---|---|---|---|
| Riprap Apron | Lining the channel with large, angular stones to resist erosive forces. | Stone size (d50), apron length and thickness, filter fabric requirement, slope. | Low-to-moderate velocity discharges where flow is well-distributed. |
| Engineered Energy Dissipator | Forcing flow through a structured device (e.g., baffled chute, impact basin) to create hydraulic jumps and turbulence. | Inlet velocity, tailwater conditions, structural design of concrete components. | High-velocity, high-volume discharges from large pipes or culverts. |
| Stilling Basin | A formal basin at the pipe outlet that slows water and dissipates energy before it enters the receiving channel. | Basin geometry, baffle block placement, end sill height, hydraulic jump analysis. | Constrained sites or where a high degree of energy removal is required for sensitive downstream areas. |
| Level Spreader | Converting concentrated flow into shallow sheet flow over a wide, level lip. | Precise level construction, stable downstream vegetated area, low inflow velocity. | Discharges to stable, vegetated slopes where concentrated flow is undesirable. |
| Vegetated Channel with Turf Reinforcement Mat (TRM) | Using erosion-resistant vegetation combined with a permanent synthetic mat to increase shear stress resistance. | Allowable shear stress of the TRM/vegetation system, flow depth, channel slope. | Lower-velocity channels where a natural aesthetic is desired and conditions support robust vegetation. |
Once a discharge location is identified, detailed hydraulic and hydrologic (H&H) modeling is required to size the outfall structure and its protective measures. Data center campuses generate high peak flow rates due to their significant impervious coverage. The drainage design must accommodate these flows, which are calculated based on design storm events (e.g., 25-year, 100-year storms) as defined by local and state criteria. Engineers use sophisticated software to model the entire stormwater management system, from the collection network to the detention pond and the final outfall. This modeling determines the critical exit velocity of the water leaving the outfall pipe or channel. Unchecked, this high-velocity flow can instantly scour the receiving channel, leading to severe erosion and destabilization. The H&H analysis provides the core data needed to design energy dissipation features and ensure the outfall performs predictably under a range of storm conditions. This analysis is a cornerstone of the permit submittals to regulatory agencies.
Energy Dissipation and Scour Protection Strategies
Managing high exit velocities is arguably the most critical aspect of outfall design. The primary goal is to dissipate the energy of the concentrated flow before it impacts the natural channel. A scour analysis is performed to quantify the erosive forces and select an appropriate countermeasure. Without effective energy dissipation, the outfall can quickly fail, creating a safety hazard and triggering environmental violations. Several proven methods are used to protect the outfall and receiving channel. These range from simple riprap aprons for lower-velocity systems to complex, engineered structures for high-energy discharges. Common strategies include stilling basins, which use baffles to slow flow within a concrete structure, and impact basins. The selection depends on the calculated exit velocity, soil conditions, site constraints, and maintenance requirements. The design must provide a stable transition from the engineered outfall to the natural downstream environment, ensuring long-term channel protection.
Ensuring Downstream Channel and Bank Stability
A successful outfall project protects not only the immediate discharge point but also the entire downstream channel reach that may be affected by the new flow regime. While detention ponds are designed to match pre-development peak flow rates, the volume and duration of discharge can still alter the geomorphology of a natural stream. The civil engineering design must account for these potential impacts by evaluating the stability of the downstream channel banks and bed. This analysis often involves principles of geotechnical engineering and fluvial geomorphology. Engineers assess the channel’s existing condition, soil types, and vegetative cover to determine its susceptibility to erosion. If the analysis indicates a risk of destabilization, channel improvements may be required. These can include bank stabilization with turf reinforcement mats, articulated concrete blocks, or bioengineered solutions like live stakes and fascines. The objective is to ensure the downstream system remains in a state of dynamic equilibrium after the data center is constructed.
Navigating Outfall Permitting and Agency Review
Stormwater outfalls are heavily regulated structures that require approvals from multiple local, state, and sometimes federal agencies. The permitting process is a critical path item in the project schedule and demands careful coordination. Permit applications typically require detailed construction plans, supporting H&H calculations, a downstream analysis, and an erosion and sediment control plan. Permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. Common permits include a National Pollutant Discharge Elimination System (NPDES) permit for construction activities and potentially a separate permit from the local drainage authority or public works department. If the outfall discharges into or impacts “waters of the United States,” such as a stream or wetland, a Clean Water Act Section 404 permit from the U.S. Army Corps of Engineers may be necessary. Proactive agency review and pre-application meetings, facilitated by an experienced civil engineering firm, can streamline this complex process and avoid costly delays.
Easement Acquisition and Off-Site Landowner Coordination
Often, the ideal location for a stormwater outfall and its associated conveyance system is on an adjacent property. This requires the data center developer to acquire legal rights to construct and maintain the infrastructure on land they do not own. This is accomplished by securing a permanent drainage easement from the neighboring landowner. The easement is a legal document that is recorded with the property deed and grants specific rights for the installation and maintenance of drainage facilities. Negotiating and acquiring these off-site easements can be a lengthy and complex process. It is crucial to identify the need for easements early during the due diligence or conceptual design phase. The land development team, including legal counsel and the Professional Engineer, must work closely with the affected landowners to explain the project’s necessity, address their concerns, and agree on fair compensation. Failure to secure these rights can halt a project or force a costly and less effective redesign.
The RSP Engineers Approach to Outfall Design and Permitting
At RSP Engineers, we approach stormwater outfall design with a comprehensive, risk-based methodology. Our process begins with a rigorous site feasibility and due diligence study to identify a legal and stable point of discharge early in the project lifecycle. We then develop detailed hydrologic and hydraulic models to accurately predict flow rates and velocities, forming the basis for a resilient design. Our team integrates the outfall design seamlessly with the overall site development plan, ensuring it works in concert with the on-site stormwater management system. We manage the entire permitting process, from pre-application meetings with regulators to the final approval of construction plans. By engaging in proactive agency review and clear communication, we help our clients navigate the regulatory landscape efficiently. During construction, we provide administration and inspection services to ensure the outfall is built exactly to specification, protecting our client’s investment for the long term.
Common Challenges in Data Center Outfall Projects
Even with careful planning, data center outfall projects can encounter significant challenges. One of the most common issues is an inadequate downstream analysis, which can lead to unforeseen impacts and potential legal liability if downstream properties experience flooding or erosion. Another frequent pitfall is underestimating the time and complexity involved in securing off-site drainage easements, which can severely delay project timelines. During the design phase, value engineering that compromises the robustness of scour protection measures can lead to premature failure and costly emergency repairs. Finally, navigating the overlapping jurisdictions of multiple regulatory agencies can be difficult without an experienced guide. A clear understanding of the permitting pathway for NPDES, state environmental agencies, and local authorities is essential to keeping the project on track. Frequently Asked Questions What is a ‘legal positive outfall’? A legal positive outfall is a point of discharge for stormwater runoff that can be proven to have a continuous, legally secured path to a receiving water body or municipal storm sewer system with sufficient capacity. It ensures that runoff from a development will not be unlawfully diverted onto neighboring properties or into an area with inadequate drainage design, which could cause flooding or erosion. How does the scale of a data center campus affect outfall design? The immense impervious area of a data center campus generates a massive volume and high peak flow rate of stormwater runoff. This requires a much larger and more robust outfall system compared to a typical commercial development. The energy dissipation structures must be engineered to handle significantly higher forces, and the downstream analysis must cover a larger area to ensure no adverse impacts occur. Can we discharge stormwater directly into a nearby wetland? Discharging directly into a wetland is highly regulated and often discouraged or prohibited unless the stormwater is adequately treated and the discharge mimics natural sheet flow. It typically requires extensive environmental permitting, including potential review under the Clean Water Act. The design must prove there will be no negative impacts to the wetland’s hydrology or ecology, often requiring complex stormwater management features like level spreaders to prevent erosion. What kind of long-term maintenance does a stormwater outfall require? Routine maintenance is critical for ensuring an outfall functions as designed. This includes regular inspections (especially after major storm events) to check for erosion or scour, removing accumulated sediment or debris from the outfall structure and energy dissipator, and maintaining the vegetation in and around the receiving channel. A formal maintenance plan and access easement are key components of a successful site development project. Who is responsible for erosion that occurs downstream of our new outfall? Generally, a property owner is responsible for the impacts caused by their stormwater discharge. If a new outfall causes or exacerbates erosion on downstream properties, the developer or owner of the data center could be held liable. This is why a comprehensive downstream analysis and a robust, professionally engineered scour protection system are critical to mitigating risk and demonstrating due diligence.
Partner with RSP Engineers for Your Mission-Critical Site Development
Designing a resilient stormwater outfall for a data center campus requires a specialized blend of technical expertise and regulatory knowledge. The team at RSP Engineers has a proven track record of delivering comprehensive site engineering services for mission-critical facilities nationwide. We manage every aspect of the process, from initial due diligence and stormwater management design to complex multi-agency permitting and construction administration. Let us help you protect your investment and ensure your project’s long-term success. Contact us today to discuss your data center development needs.
Conclusion: A Critical Component of Site Infrastructure
The stormwater outfall is more than just the end of a pipe; it is a critical piece of infrastructure that protects the data center, the environment, and downstream communities. A successful design hinges on a deep understanding of hydrology, hydraulics, and geotechnical principles. By focusing on a legal positive outfall, robust energy dissipation, and proactive agency review, developers can mitigate risks and ensure regulatory compliance. Investing in expert civil engineering for outfall design is essential for the resilience and sustainability of any large-scale land development project.
