Selecting Freeboard for Critical Data Center Buildings
Learn how to determine the optimal freeboard for mission-critical data centers. We cover regulatory minimums, risk tolerance, insurance factors, and cost-benefit analysis for resilient site design.
Understanding Base Flood Elevation (BFE) and Regulatory Minimums
The starting point for any freeboard discussion is the Base Flood Elevation (BFE). This is the computed elevation to which floodwater is anticipated to rise during the base flood, which is the flood event having a 1-percent chance of being equaled or exceeded in any given year (also known as the 100-year flood). The BFE is typically determined from FEMA Flood Insurance Rate Maps (FIRMs), which are the official public source for floodplain information and are used to administer the National Flood Insurance Program (NFIP). Local governments adopt these maps and enforce floodplain management ordinances that set the minimum standards for construction in flood-prone areas. These local ordinances almost always require a minimum amount of freeboard, often one to three feet above the BFE, for the lowest floor of a new structure. This regulatory minimum is designed to provide a basic level of protection and account for uncertainties in flood modeling. However, these minimum freeboard requirements vary by jurisdiction, and it is essential for the project team to confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. For a standard commercial building, meeting this minimum might be sufficient, but for a data center, it should be considered the absolute floor, not the target elevation.
Beyond the Minimum: Assessing Risk Tolerance for Mission-Critical Facilities
Key Factors Influencing Freeboard Selection
| Factor | Minimum Consideration (Regulatory Compliance) | Enhanced Consideration (Mission-Critical Resilience) |
|---|---|---|
| Flood Source | 100-year Base Flood Elevation (BFE) from effective FEMA FIRM. | 500-year flood elevation, plus analysis of other potential sources (e.g., dam failure, localized stormwater). |
| Future Conditions | Based on historical data used in current regulatory maps. | Incorporates projections for sea-level rise, increased rainfall intensity, and future watershed build-out. |
| Site Access | Finished floor of the main building is elevated. | Finished floor, all critical equipment pads, and primary/secondary access roads are elevated and accessible. |
| Equipment Protection | Focus on elevating the building's lowest floor. | Elevation of all critical infrastructure, including exterior generators, fuel tanks, cooling systems, and utility transformers. |
| Stakeholder Influence | Satisfies the local floodplain administrator and building department. | Satisfies owner's risk tolerance, insurer requirements, lender due diligence, and corporate standards. |
| Design Basis | Meets the letter of the local floodplain ordinance. | A comprehensive Basis of Design report documents a risk-informed decision based on multiple data sources. |
The fundamental difference between a data center and a typical commercial building is risk tolerance. Data centers are designed for near-continuous operation, with uptime guarantees of 99.999% or higher. The cost of downtime—measured in millions of dollars per hour—far exceeds the potential structural damage from a flood. Therefore, the civil engineering design must prioritize operational resilience over simple code compliance. Relying on the 100-year BFE plus a minimum freeboard may not adequately protect against more extreme, albeit less frequent, storm events. A more prudent approach for mission-critical infrastructure involves evaluating higher-return-period storms, such as the 500-year flood event (a 0.2-percent annual chance flood). Designing to this more conservative standard provides a significantly higher margin of safety. This decision is driven by a comprehensive risk assessment that weighs the upfront cost of additional site work against the immense potential losses from a business interruption event. The goal is to protect not just the physical asset but the continuity of the digital services it supports.
The Influence of Insurance, Financing, and Corporate Standards
Regulatory agencies are not the only stakeholders influencing freeboard decisions. Insurance underwriting teams and project lenders play a crucial role. Insurers for high-value assets like data centers conduct their own sophisticated risk modeling and may require elevations significantly higher than local code mandates to provide favorable premiums or even to issue a policy at all. A higher, more conservative freeboard demonstrates a commitment to long-term asset protection, reducing the insurer’s perceived risk. Similarly, institutions providing project financing will scrutinize the project’s vulnerability to natural hazards to protect their investment. They often require a thorough flood risk analysis as part of their due diligence process. Furthermore, many large technology companies and data center operators have their own internal, globally applied corporate design standards that are far more stringent than local building codes. These standards are born from experience and a deep understanding of the operational risks involved, often dictating a design elevation based on the 500-year flood level or other advanced criteria.
Factoring in Future Conditions and Climate Data
A critical flaw in relying solely on historical data like that used for many current FIRMs is that it does not account for future conditions. A forward-looking site development strategy must incorporate projections for climate change adaptation. This includes analyzing potential sea-level rise for sites in coastal regions, as well as updated rainfall intensity-duration-frequency (IDF) curves that reflect trends of more intense precipitation events. Watersheds are also dynamic; future upstream development can increase runoff and alter flood behavior, rendering historical flood models less accurate. Sophisticated drainage design and hydrologic modeling should incorporate data from sources like the National Oceanic and Atmospheric Administration (NOAA) and other climate science bodies to project future conditions over the expected 30- to 50-year lifespan of the facility. Establishing a freeboard based on future conditions hydrology ensures the facility remains resilient not just on opening day, but for decades to come, protecting it from foreseeable and evolving environmental threats.
Site-Specific Engineering and Cost-Benefit Analysis

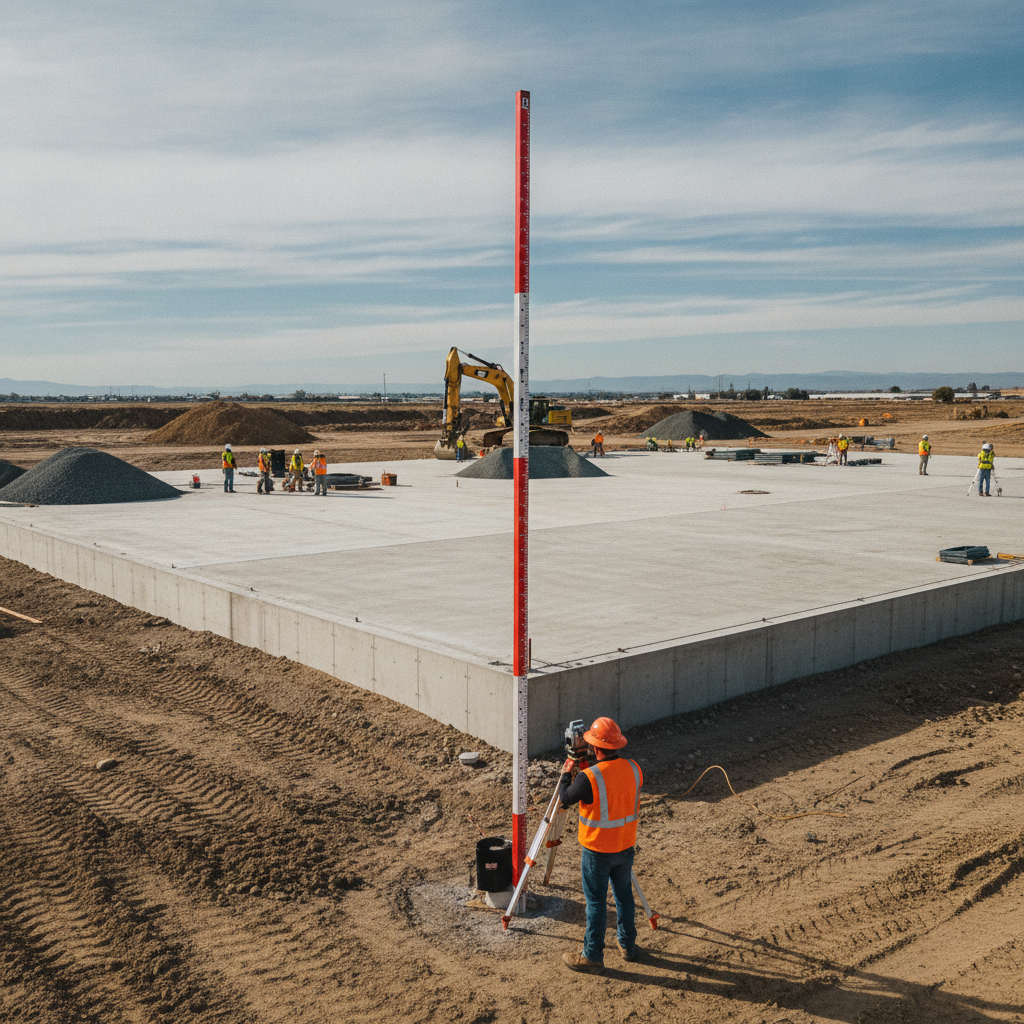

Achieving a higher freeboard is a significant engineering task with direct cost implications. The primary methods include importing structural fill to raise the entire site pad or elevating the building on structural foundations like stem walls. The choice depends on a cost-benefit analysis informed by a thorough geotechnical analysis of the site’s soil conditions. Importing massive quantities of fill requires careful planning for sourcing, hauling, and compaction, and it fundamentally alters the site’s topography, impacting the overall site grading plan and stormwater management system. A skilled civil engineering team must perform an earthwork balancing calculation to determine the volume of fill required and its associated cost. This analysis also considers the cascading effects on other site elements. For example, raising the building pad requires longer and potentially steeper access drives, which must still meet ADA compliance standards. Ramps, retaining walls, and modified utility connection profiles may be necessary, all of which add to the project’s complexity and budget. The engineer’s role is to present these options clearly so the owner can make an informed decision.
Protecting More Than Just the Building Slab
An effective flood protection strategy extends beyond the four walls of the data hall. A common oversight is focusing solely on the building’s finished floor elevation while neglecting the array of critical infrastructure that supports it. The true measure of resilience is the critical equipment elevation—the lowest elevation of any component essential for continuous operation. This includes emergency generators, their associated fuel tanks, primary and backup cooling systems, main electrical switchgear, and fiber optic entry points. Comprehensive utility coordination is essential to ensure that all power, water, and data conduits are routed and terminated above the design flood elevation. Furthermore, ingress and egress routes for staff and service vehicles must remain passable during a flood event to allow for refueling and maintenance. This holistic approach, often termed comprehensive site hardening, ensures that the facility can not only survive a flood but continue to operate through it without interruption.
The RSP Engineers Approach to Establishing Design Flood Elevation
At RSP Engineers, we treat freeboard selection as a strategic process, not just a line on a plan. Our approach involves a multi-step, collaborative effort to define and achieve the right level of resilience for each unique project. We begin with exhaustive due diligence, which includes a detailed review of all applicable federal, state, and local floodplain regulations. This is followed by a comprehensive flood risk analysis that leverages the latest FEMA data, supplemental hydrologic and hydraulic modeling, and future climate projections. A key step is a collaborative workshop with the client and key stakeholders to define risk tolerance, operational requirements, and uptime goals. Based on this, our team develops several elevation options, complete with conceptual site plans and preliminary cost estimates for the associated site work. Finally, we document the chosen path in a formal Basis of Design report, creating a clear and defensible record for permitting and ensuring stakeholder alignment.
Common Oversights in Data Center Flood Protection
Even with the best intentions, project teams can make critical errors in planning for flood resilience. One of the most common is simply defaulting to the minimum freeboard required by the local code without a proper risk assessment. Another frequent oversight is failing to elevate critical utility infrastructure and exterior equipment pads to the same level of protection as the main building. Teams may also overlook the vulnerability of site access, assuming that if the building is dry, operations can continue, while ignoring the reality that access road flooding can prevent staff and fuel deliveries from reaching the site. Finally, a design based purely on historical flood data without considering future climate trends can compromise the long-term viability of the asset. A comprehensive flood vulnerability assessment conducted by experienced engineers is the best way to avoid these pitfalls.
Partner with RSP Engineers for Resilient Site Design
Selecting the right freeboard is a critical decision that impacts the long-term viability and resilience of your data center investment. Don’t leave it to chance or settle for the bare minimum. The team at RSP Engineers has nationwide experience guiding clients through this complex process. We provide the in-depth flood risk analysis, rigorous civil engineering, and strategic guidance needed to protect your mission-critical facility. Contact us today to discuss your project’s requirements for site development, stormwater management, and agency permitting.
Conclusion: Freeboard as a Strategic Investment
In conclusion, determining the freeboard for a data center is far more than a regulatory checkbox; it is a strategic investment in operational continuity and asset protection. Moving beyond minimum code requirements to embrace a risk-based approach that incorporates future conditions, stakeholder requirements, and a holistic view of site infrastructure is essential. This process requires a sophisticated risk assessment and detailed civil engineering analysis. By making a deliberate and well-documented decision on freeboard, developers and operators can ensure the long-term resilience of their facilities against evolving flood risks.
FAQs
-
Freeboard is a factor of safety expressed in feet above a projected flood level for purposes of floodplain management. It’s the vertical distance between the Base Flood Elevation (BFE) and the lowest floor or critical component of a structure, intended to provide a safety margin against flood events that exceed predictions.
-
For a mission-critical facility, relying solely on the BFE is generally insufficient. The BFE represents the 100-year flood, but insurers, investors, and operators with low risk tolerance often require protection against more severe events, like the 500-year flood, and consideration for future climate conditions.
-
Adding significant freeboard increases initial construction costs, primarily due to the need for imported fill material or more complex structural foundations. It also impacts the site grading plan, stormwater management system, utility profiles, and the design of access roads to ensure they meet slope and ADA compliance requirements.
