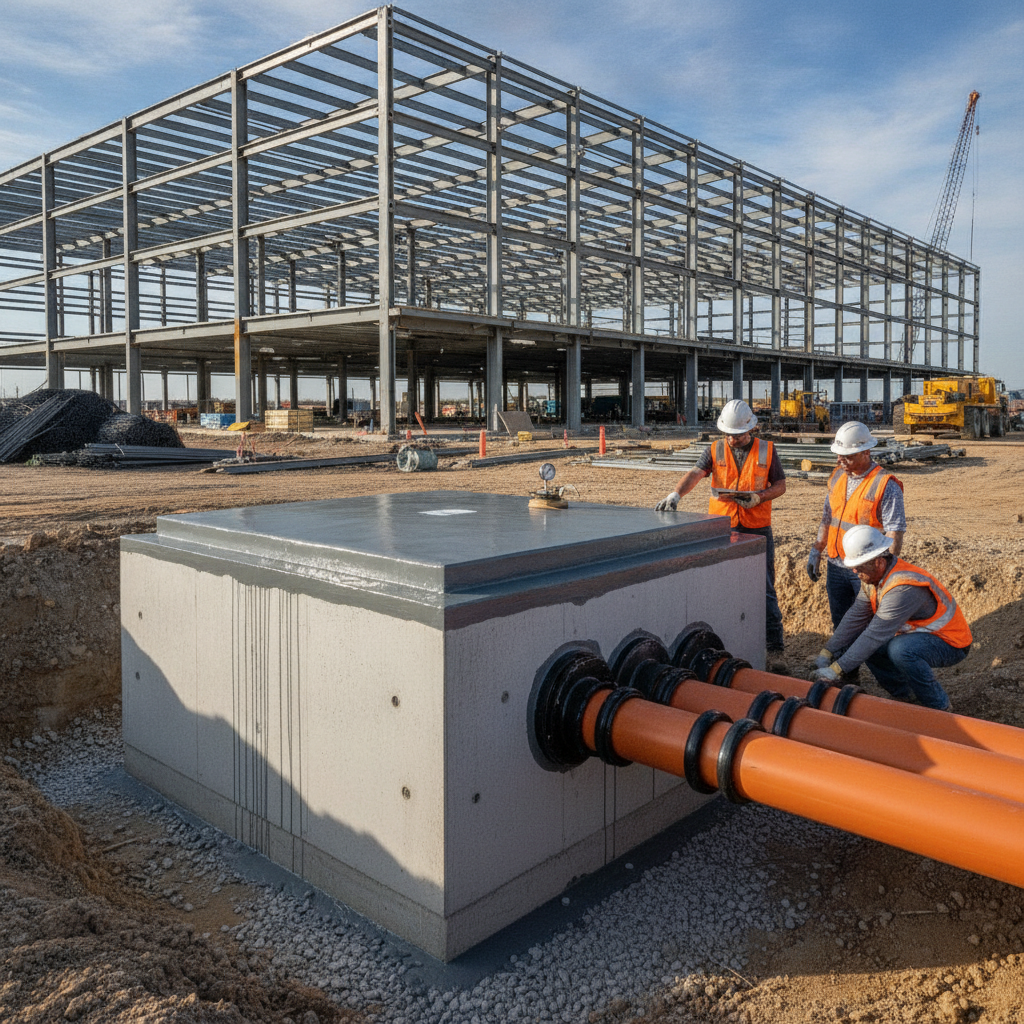

Protecting Underground Utilities From Flooding

Learn essential civil engineering strategies for protecting underground utilities from flooding at data centers, including sealed duct banks, waterproof manholes, and elevated entry points.

Assessing Flood Risk for Utility Infrastructure

The first step in designing a resilient utility system is to comprehensively understand the site’s specific flood risks. This process begins with a review of Federal Emergency Management Agency (FEMA) Flood Insurance Rate Maps (FIRMs) to identify the property’s location relative to designated special flood hazard areas. A civil engineering team will determine the Base Flood Elevation (BFE), which is the anticipated height of floodwaters during a 1-percent-annual-chance flood event. This elevation becomes a critical benchmark for the entire site development plan. Beyond regulatory maps, a thorough site investigation includes a detailed topographical survey and a Geotechnical Engineering analysis. The Geotechnical soil report provides crucial data on soil permeability and the seasonal high groundwater table, which can pose a significant threat to buried infrastructure even in the absence of surface flooding. Understanding these factors allows engineers to design appropriate dewatering systems for construction and specify long-term waterproofing and drainage solutions. This initial due diligence is fundamental to a successful permitting strategy and a resilient final design.

Designing Watertight Duct Bank Systems

Comparison of Utility Flood Protection Strategies

Protection Strategy	Primary Function	Key Design Considerations	Common Applications
Sealed Duct Banks	Prevents water infiltration into power and fiber conduits.	Gasketed conduits, watertight spacers, hydraulic cement, link seals at penetrations.	All underground electrical and communication lines in flood-prone areas.
Waterproof Manholes	Seals utility access points from surface water intrusion.	Bolt-down, gasketed frames and covers rated for hydrostatic pressure.	Manholes and handholes located within the 100-year floodplain or low-lying areas.
Internal Vault Drainage	Actively removes any water that enters a utility vault.	Sump pit, automated sump pump, reliable power source, proper discharge routing.	Large electrical or fiber optic vaults housing critical splices and equipment.
Elevated Entry Points	Keeps the utility-building interface above flood levels.	Conduit penetrations must be above the Base Flood Elevation plus freeboard.	All utility entries into a mission-critical building's foundation or walls.
Backflow Preventers	Stops floodwater from entering a facility via sewer/storm pipes.	Proper sizing, location on main laterals, and adherence to plumbing codes.	Sanitary sewer and storm drainage systems for facilities in flood hazard areas.

The core of a flood-resilient utility network is the duct bank—the concrete-encased bundle of conduits for power and communications. A standard duct bank is not inherently waterproof. To protect critical infrastructure, engineers specify watertight systems using specialized materials and construction techniques. This often involves using gasketed PVC or HDPE conduits, where flexible seals at each joint prevent water infiltration under pressure. Additionally, all conduit entry points into manholes, vaults, and the building itself must be sealed with hydraulic cement or mechanical link seals to create a continuous waterproof barrier. The design must also account for the entire pathway from the utility source to the building. Every penetration and connection point is a potential vulnerability. The selection of materials and sealing methods is a critical part of the civil engineering design and is often subject to review by the local utility provider and the authority having jurisdiction. It is important to note that specific design and permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A properly executed sealed duct bank is a primary defense against widespread utility failure during a flood.

Securing Manholes, Handholes, and Utility Vaults

While duct banks protect the conduits, the access points—manholes, handholes, and vaults—present a significant vulnerability. Standard manhole covers are designed to shed rainwater but are not built to resist submergence. For mission-critical sites, engineers specify heavy-duty, bolt-down, watertight manhole frames and covers equipped with gaskets. These systems can withstand the hydrostatic pressure exerted by standing floodwater, preventing it from pouring into the utility system below. Inside larger utility vaults, a secondary line of defense is necessary. Even with watertight lids, some seepage or condensation can occur. Therefore, these vaults are often designed with a sump area and an automatic sump pump to actively remove any water that enters. The pump’s discharge must be routed to an appropriate location in the stormwater management system, and its power supply must be reliable and redundant. This combination of passive (sealing) and active (pumping) systems provides robust protection for sensitive electrical and fiber optic splices housed within these structures, ensuring long-term utility coordination and reliability.

Strategic Conduit Routing and Elevated Entry Points

A fundamental principle of flood protection is to keep critical infrastructure out of the water’s path whenever possible. During the initial site plan design, civil engineers analyze site topography to route underground utilities through higher ground, minimizing their exposure to low-lying, flood-prone areas. While complete avoidance is not always feasible, strategic routing can significantly reduce the length of conduit exposed to the highest-risk zones. This proactive approach to drainage design and utility layout is a cost-effective way to enhance resilience. Perhaps the most critical point of protection is where the utilities enter the data center building. All conduit penetrations through the foundation or exterior walls must be located above the BFE, plus any required freeboard (an additional margin of safety). Elevating these entry points ensures that even if the surrounding area is flooded, water cannot flow directly into the building through the utility conduits. Each penetration must be meticulously sealed using engineered waterproofing systems to prevent any leakage around the conduits, protecting the facility’s critical building code compliance.

Preventing Backflow in Gravity-Fed Systems

While electrical and communication conduits are a primary concern, gravity-fed utilities like sanitary sewer and storm drains pose another significant threat. During a flood, rising water in the public main can reverse flow, pushing floodwater and sewage back into the facility through floor drains and plumbing fixtures. This can cause extensive damage, contamination, and operational disruption. The primary defense against this is the installation of backflow prevention devices. These engineered valves are installed on the main sanitary and storm sewer laterals before they exit the property. They are designed to allow normal outflow but automatically close to prevent reverse flow when external pressure is detected. The selection and installation of these devices are governed by plumbing codes and utility provider standards. Proper utility coordination and permitting are essential to ensure these critical devices are correctly specified and approved as part of the overall stormwater management and site utility plan.

The Role of Geotechnical Engineering in Utility Protection

The interaction between soil and water is a critical factor in protecting underground utilities. A thorough Geotechnical Engineering investigation provides the data needed to design for challenges like hydrostatic pressure, soil liquefaction, and long-term groundwater infiltration. The Geotechnical soil report will inform the structural design of utility vaults and thrust blocks, ensuring they can resist the buoyant forces exerted by saturated soil during a flood. It also guides the design of foundation systems for any above-ground utility structures. Furthermore, understanding groundwater behavior is essential for both construction and long-term operation. During construction, a dewatering plan may be required to keep the utility trenches dry enough for proper installation and sealing of conduits. For the life of the facility, a permanent underslab drainage system or perimeter foundation drains might be necessary to manage a persistently high water table. This integration of Geotechnical Engineering and civil engineering is fundamental to creating a truly resilient site development plan.

Inspection, Testing, and Commissioning Protocols

A resilient design is only effective if it is constructed correctly. A rigorous program of inspection, testing, and commissioning is required to verify the integrity of the flood protection systems. After installation and before backfilling, all conduits within a sealed duct bank should undergo a mandrel test to ensure they are clear of obstructions and a low-voltage test to detect any breaches in the conduit walls. The entire system can also be pressure-tested with air or water to confirm that all joints and seals are watertight. This quality assurance process should be managed by the civil engineering team as part of their construction administration services. Detailed documentation of all tests provides the facility owner with confidence that the system was built to specification. Commissioning these systems is not a step to be overlooked; it is the final confirmation that the significant investment in utility hardening will perform as designed during a critical flood event, ensuring zoning compliance and operational readiness.

How RSP Engineers Approaches Utility Hardening

At RSP Engineers, our approach to protecting mission-critical utilities is proactive and integrated. We begin with a comprehensive flood risk assessment that combines regulatory data with detailed site-specific analysis. Our site engineering services team collaborates closely with geotechnical engineers, architects, and utility providers to develop a holistic protection strategy. We believe that resilience is not achieved through a single solution, but through layers of defense. Our process involves designing robust passive systems like sealed duct banks and waterproof manholes, complemented by active systems like sump pumps where necessary. We prioritize strategic routing and elevated entry points as part of the initial site plan design. Throughout the permitting and construction phases, our team provides diligent oversight and construction administration to ensure every detail is executed to the highest standard, delivering a facility prepared to withstand environmental challenges and maintain continuous operation.

Common Issues in Utility Flood Protection

Even with a well-conceived design, several common issues can compromise the effectiveness of utility flood protection. The most frequent problem is improper installation by contractors unfamiliar with the stringent requirements of watertight systems. A single poorly sealed joint or conduit penetration can negate the entire design. Another issue is value engineering that removes critical redundancies or specifies inferior materials to cut costs, creating long-term vulnerabilities. Design teams must also consider all potential water sources. Focusing solely on riverine flooding or coastal surge while ignoring intense, localized rainfall can be a mistake. Inadequate site grading and stormwater management can lead to significant ponding that can overtop manholes and infiltrate utility systems. A comprehensive drainage design that addresses all forms of flooding is essential for true resilience.

Partner with RSP for Resilient Site Development

Ensuring the resilience of your mission-critical facility starts from the ground down. Protecting your essential power and data connections from flood risk requires specialized expertise in civil engineering, stormwater management, and complex utility coordination. The team at RSP Engineers has the nationwide experience to guide your project through risk assessment, design, permitting, and construction. Don’t leave your facility’s uptime to chance. Contact us today to discuss our comprehensive site engineering services and how we can help you build a secure and resilient site.

Conclusion

In the world of mission-critical facilities, the chain of reliability is only as strong as its weakest link. Underground utilities are a foundational link that is too often overlooked until it’s too late. A proactive, defense-in-depth approach to utility flood protection is not an expense—it is an investment in operational certainty. By integrating robust civil engineering principles, from sealed duct banks to intelligent drainage design, developers can significantly mitigate the risk of water-related outages and safeguard their critical infrastructure for the long term.

FAQs

• What is the most critical utility to protect from flooding at a data center?

  While all utilities are important, the incoming high-voltage power feeds and redundant fiber optic lines are the most critical. Loss of either can result in a complete facility shutdown. Therefore, the duct banks housing these lines receive the highest level of flood protection, including fully sealed conduits and secure vaults.

• How do you seal a conduit that is already installed?

  Retrofitting a seal on an existing conduit penetration can be challenging but is often possible using chemical grouts or mechanical link-seal systems. Link seals consist of rubber blocks that are compressed around the pipe within the wall opening to create a watertight barrier. The effectiveness depends on the condition of the existing conduit and the surrounding concrete.

• Are sump pumps in utility vaults reliable during a major flood event?

  Their reliability depends entirely on the design. A reliable system includes a high-quality pump, a non-clogging intake, and, most importantly, a redundant power source. The pump should be wired to the facility’s uninterruptible power supply (UPS) or backup generator to ensure it remains operational even if grid power is lost during the storm.
