Protecting Electrical Equipment From Surface Drainage
Learn essential civil engineering and site drainage strategies for protecting mission-critical electrical equipment at data centers, including pad elevation, trench drains, and stormwater management.
The Critical Role of Site Grading and Pad Elevation

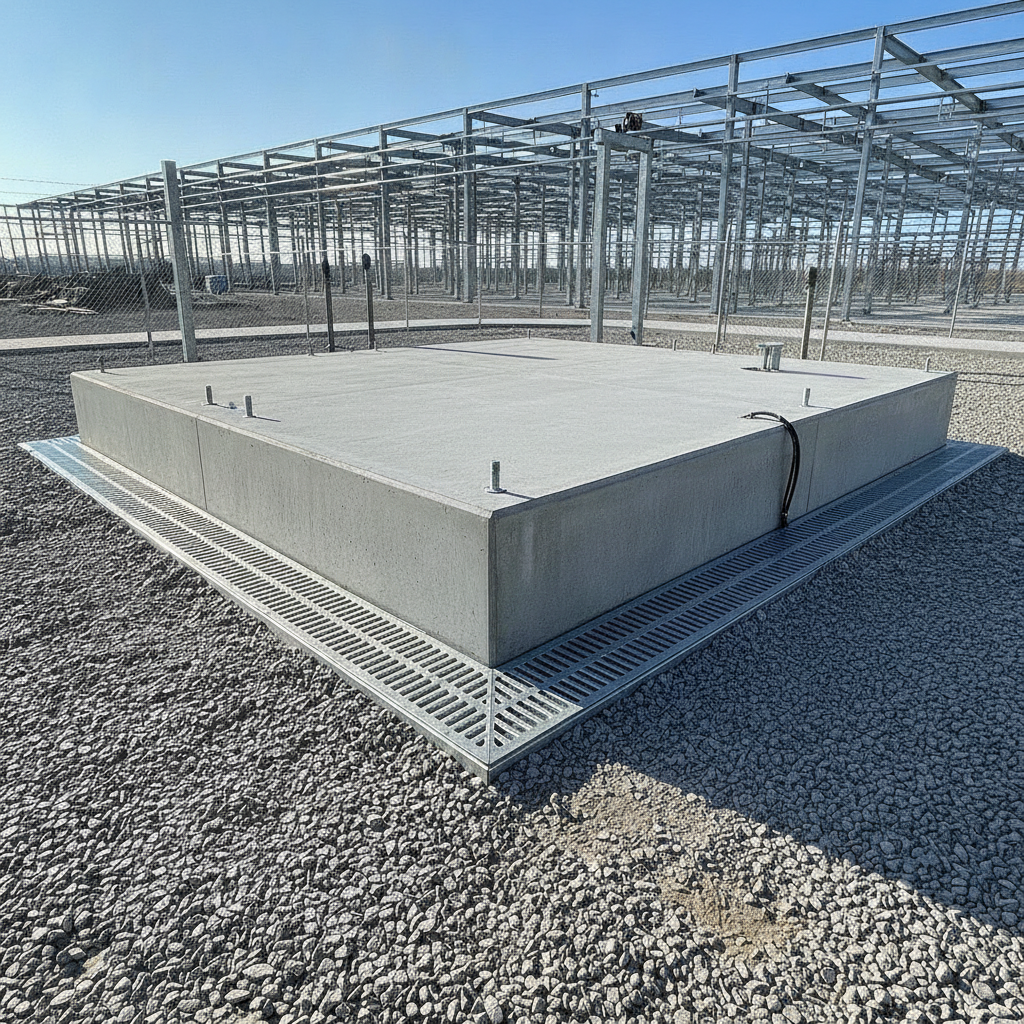

The most fundamental principle in protecting equipment from surface water is elevation. A well-designed site uses grading to create positive drainage, ensuring that water flows away from critical infrastructure, not towards it. The process begins by establishing a finished floor elevation (FFE) for the main building that provides a safe margin above anticipated storm surge or ponding levels. This same logic extends to all exterior electrical equipment. Equipment pads for transformers, switchgear, and generators must be elevated above the surrounding grade. This simple act prevents water from pooling at the base of the equipment. The surrounding yard should then be carefully sloped away from these pads, directing water towards designated collection points like swales or storm drains. This requires a detailed understanding of the site’s topography and a precise drainage design to ensure that slopes are sufficient for flow but not so steep as to cause erosion. This foundational step in site development is a non-negotiable for long-term operational security.
Implementing Surface Drainage Systems: Trench and Area Drains
Drainage Protection Measures for Key Electrical Components
| Component | Primary Drainage Risk | Key Civil Engineering Solution | Design Consideration |
|---|---|---|---|
| Transformer Pad | Ponding at equipment base, water intrusion into containment | Elevate pad above grade, slope yard away, provide controlled containment drain | Containment must drain stormwater while retaining potential spills. |
| Switchgear / MCCs | Sheet flow from adjacent pavement or landscape areas | Install trench drains upgradient of the equipment pad | Ensure drain capacity exceeds calculated flow from the tributary area. |
| Generator Yard | Surface ponding, fuel system contamination | Positive grading across the yard, area drains at low points | Coordinate drain locations with equipment layout and maintenance access paths. |
| Duct Bank Manhole | Groundwater and surface water intrusion | Watertight lids, sealed conduit penetrations, grade surface away from lid | Route duct banks to avoid known wet areas or drainage paths where possible. |
| Substation Yard | Widespread sheet flow and potential for standing water | Comprehensive grading plan, swales, and a network of catch basins | Surface material (e.g., gravel) must allow for some infiltration while preventing erosion. |
While proper grading is the first step, it must be supported by an active collection system. Trench drains and area drains are essential tools for intercepting and redirecting surface water around equipment yards. A trench drain, or channel drain, is a linear system that is highly effective at capturing sheet flow across a wide area, such as along the edge of a large concrete pad or across an access driveway. Area drains and catch basins are used to collect water from localized low points. The selection and placement of these systems are critical components of the overall stormwater management strategy. Sizing calculations must account for the drainage area and anticipated rainfall intensity to prevent the system from being overwhelmed. Furthermore, design and permitting requirements for these systems can vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A comprehensive drainage design ensures these elements work together to keep critical areas dry.
Subsurface Infrastructure: Protecting Duct Banks and Manholes
The threat of water isn’t limited to the surface. Underground duct banks and electrical manholes are highly vulnerable to water intrusion, which can lead to cable failure and costly, complex repairs. A key aspect of utility coordination and site design is routing these subsurface systems to avoid low-lying areas, swales, or zones with a high water table wherever possible. When avoidance isn’t feasible, protective measures are essential. Manholes should be specified with watertight lids and frames, and all conduit penetrations must be properly sealed to prevent groundwater from seeping in. The ground surface around manholes should be graded to divert water away from the lid. For duct banks, ensuring proper conduit sealing and utilizing strategically placed drains or sump pumps in critical manholes can provide an additional layer of protection. This attention to subsurface detail is a hallmark of thorough civil engineering for mission-critical projects.
Containment Design That Manages Stormwater Effectively
Large, oil-filled transformers require secondary containment systems to prevent environmental contamination in the event of a leak. However, a common design flaw is creating a concrete basin that effectively traps rainwater, submerging the base of the transformer and creating a new set of problems. The engineering challenge is to design a system that contains oil but allows clean stormwater to escape. This is often achieved with specialized drainage outlets that incorporate oil-water separators or manually operated valves that remain closed under normal conditions. The design must satisfy both environmental regulations and operational needs. Navigating the permitting for these systems requires a clear understanding of federal and local environmental codes. An effective design balances zoning compliance with the practical need to prevent equipment from sitting in a permanent pool of water.
Integrating Drainage with Overall Stormwater Management Plans
Protecting individual equipment pads is only part of the solution. These localized drainage systems must tie into a comprehensive, site-wide stormwater management plan. This master plan accounts for all the impervious surfaces on the site—roofs, parking lots, roadways, and equipment yards—and routes the collected runoff to a detention or retention facility before it is discharged off-site. This holistic approach is essential for managing water volume and flow rates during major storm events. The site-wide system, which may include ponds, underground chambers, or bioretention swales, is designed to meet local and federal regulations, such as those under the National Pollutant Discharge Elimination System (NPDES) program. Effective civil engineering ensures that the micro-drainage strategies around electrical gear are seamlessly integrated with the macro-level plan, providing robust protection under a wide range of weather conditions and ensuring full agency review approval.
Floodplain Considerations and Resiliency Planning
For sites located near or within a floodplain, resiliency planning is paramount. The design process must begin with a thorough review of Federal Emergency Management Agency (FEMA) flood maps to identify the Base Flood Elevation (BFE), which is the anticipated water level during a 1-percent-annual-chance (or 100-year) flood. Local regulations often require critical facilities to be elevated even higher. All essential electrical equipment and building finished floors must be set at an elevation that includes the BFE plus a factor of safety known as freeboard. This ensures that even during a major flood event, the facility’s core infrastructure remains operational. This forward-looking aspect of site development protects the asset against extreme weather and is a key consideration for investors and insurers. A Professional Engineer experienced in floodplain management is crucial for these projects.
Our Process: A Proactive Approach to Site Drainage Design
At RSP Engineers, we believe that protecting mission-critical infrastructure begins with a proactive and integrated design process. Our approach is built on a foundation of thorough due diligence and collaborative engineering. We start by analyzing topographic surveys, geotechnical reports, and floodplain data to understand the site’s inherent characteristics and constraints. This allows us to develop a preliminary site plan design that anticipates and mitigates potential water-related issues from day one. Our team works in close collaboration with electrical, structural, and architectural partners to ensure our drainage design is seamlessly integrated with equipment layouts and building footprints. This multidisciplinary coordination prevents conflicts and ensures that protection measures are both effective and constructible. We manage the complexities of the agency review and permitting process, submitting clear and comprehensive plans that demonstrate compliance. Finally, through our Construction Management Services, we verify that the design is implemented correctly in the field, ensuring the finished site performs as intended.
Common Issues and How to Avoid Them
Even with a solid plan, certain issues can arise during design and construction. A common mistake is value engineering that reduces grading slopes or drain sizes to cut costs, only to create performance issues later. Another frequent problem is a lack of coordination between the civil and electrical plans, leading to underground utility conflicts with storm drain pipes. This highlights the importance of robust utility coordination throughout the design phase. During construction, improper installation of trench drains or incorrect grading can render the system ineffective. Post-construction, the most common failure is a lack of maintenance. Drains and catch basins can become clogged with sediment and debris, and must be inspected and cleaned regularly to function properly. We advise clients to develop a formal maintenance plan as part of the project closeout process to ensure long-term reliability.
Partner with RSP Engineers for Mission-Critical Site Design
Protecting your data center investment requires a deep understanding of the risks posed by surface and subsurface water. The team at RSP Engineers brings decades of experience in designing resilient and compliant sites for mission-critical facilities nationwide. Our expertise in site development, stormwater management, and utility coordination ensures your project is built on a foundation of safety and reliability. Don’t leave your critical infrastructure vulnerable. Contact us today to discuss how our site engineering services can safeguard your next project from the ground up.
Conclusion: Fortifying Your Infrastructure from the Ground Up
In conclusion, the reliability of a data center is directly tied to the quality of its civil engineering. A sophisticated drainage design is not an accessory; it is a fundamental component of risk management that protects high-value electrical assets from the predictable threat of water. By prioritizing proper grading, implementing robust collection systems, and integrating site-specific measures with a comprehensive stormwater management plan, developers can ensure the long-term resilience and uptime of their mission-critical facilities. This proactive investment in infrastructure is essential for success in a competitive digital world.
FAQs
-
As a general rule, pads should be elevated a minimum of 6 inches above the surrounding finished grade, but this can increase significantly based on the site’s overall drainage design and proximity to floodplains. The final elevation should be determined by a Professional Engineer based on a detailed hydraulic analysis.
-
A trench drain is a long, narrow channel designed to intercept sheet flow over a wide, linear area, like in front of a generator yard. An area drain (or catch basin) is a point-specific inlet designed to collect water from a localized low point in a graded surface. Both are key tools in stormwater management.
-
Protection involves a multi-layered approach: routing duct banks away from low areas, ensuring all conduit joints and manhole penetrations are sealed and watertight, and grading the surface around manholes to divert water away. This is a critical part of utility coordination.
