Modeling Underground Storage Systems for Data Centers
Explore the critical civil engineering process of modeling underground stormwater storage for data centers. Learn how stage-storage, outlet controls, and infiltration are represented in hydraulic mode
The Unique Stormwater Demands of Mission-Critical Facilities
Unlike typical commercial developments, data centers have zero tolerance for downtime or on-site flooding. The immense value of the servers and infrastructure housed within them necessitates a higher standard of care in drainage design. These facilities are characterized by high impervious coverage—large building footprints, access roads, and equipment pads—which maximizes the volume and peak rate of stormwater runoff. The goal of the civil engineering design is to capture, store, and safely release this runoff in a controlled manner. Underground storage is often the preferred solution because it preserves valuable surface area for building expansion, parking, or critical equipment placement. However, its below-ground nature makes it impossible to visually inspect its performance during a storm. This is why the hydraulic model is so critical; it serves as the digital twin of the physical system, allowing engineers to simulate its response to various rainfall events and verify that the stormwater management strategy is sound before a single shovel breaks ground. A failed system could lead to catastrophic equipment damage and service interruptions.
Representing Underground Chambers in Hydraulic Models
Key Parameters for Underground Storage Modeling
| Parameter | Modeling Input/Representation | Impact on System Design & Performance |
|---|---|---|
| Chamber/Pipe Geometry | Stage-storage table based on manufacturer specifications and layout. | Directly determines the primary storage volume. Incorrect geometry leads to significant errors in capacity calculations. |
| Stone Backfill Void Ratio | A percentage (e.g., 40%) applied to the volume of the stone envelope. | Significantly increases total storage. Overestimating this value can lead to an undersized system that fails during large storms. |
| Outlet Orifice/Weir | Rating curve or equation defining flow vs. head. | Controls the peak discharge rate. This is the primary mechanism for meeting regulatory requirements for runoff control. |
| Infiltration Rate | Exfiltration rate (e.g., inches/hour) based on geotechnical data. | Reduces required storage volume and helps meet drawdown requirements. Requires suitable soil and groundwater conditions. |
| Tailwater Elevation | Fixed elevation or dynamic hydrograph representing downstream conditions. | High tailwater can submerge the outlet, reducing discharge capacity and increasing the required storage volume. Critical for accurate performance simulation. |
| Pretreatment Unit Head Loss | Minor loss coefficient or elevation drop across the structure. | Ensures upstream conveyance system does not back up. Affects the hydraulic grade line leading into the storage system. |

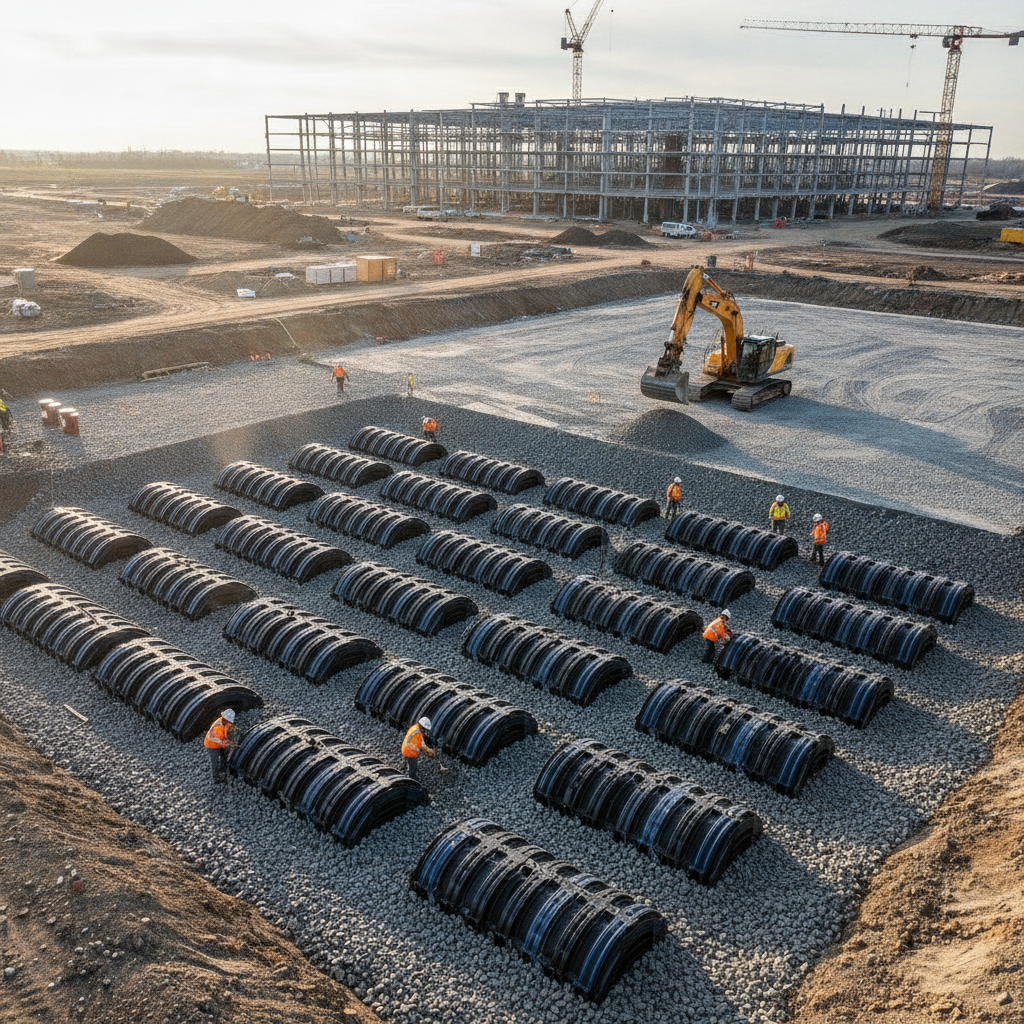

The core of an underground system is typically a series of interconnected chambers, vaults, or large-diameter pipes designed to hold water. In a hydraulic model, this volume is not represented as a simple pond. Instead, engineers develop a stage-storage relationship, which is a curve or table that defines how much volume is available at each incremental water depth (stage). This calculation must account for the specific geometry of the storage units—whether they are arched chambers, circular pipes, or rectangular vaults. Furthermore, these systems are almost always embedded in a layer of clean, crushed stone. This stone aggregate provides structural support and additional storage capacity in the gaps, or voids, between the stones. A critical input for the model is the stone void ratio (typically 30-40%), which must be accurately factored into the stage-storage calculation. The model combines the internal volume of the chambers with the void volume of the surrounding stone to create a complete representation of the system’s total storage capacity. This detailed approach is essential for right-sizing the system and ensuring efficient land development.
Defining Outlet Control Structures and Discharge Rates
An underground storage system is designed to detain runoff, not retain it indefinitely. The outflow is managed by an outlet control structure, which is meticulously designed to limit the post-development discharge rate to pre-development levels or other regulatory limits. Common control elements include orifices (small circular or rectangular openings), weirs (notched plates), or pipes of a specific diameter and slope. The hydraulic model simulates how these structures perform under varying head (water pressure) conditions within the storage system. The model calculates the peak discharge for various design storms (e.g., 10-year, 25-year, 100-year events) to demonstrate compliance with applicable regulations. Permitting requirements for peak discharge rates and allowable release points vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. Accurately modeling the outlet control structure and its interaction with downstream tailwater conditions is fundamental to securing permits and avoiding costly redesigns during agency review.
Incorporating Infiltration and Exfiltration
Many modern underground systems are designed to promote infiltration, allowing captured stormwater to percolate into the underlying native soils. This approach helps recharge groundwater and can reduce the required storage volume by providing another pathway for water to exit the system. To model this, engineers must incorporate exfiltration, typically represented as a calculated flow rate based on the soil’s saturated hydraulic conductivity. This critical data point is determined through a site-specific Geotechnical Engineering investigation, which includes soil borings and infiltration testing. The geotechnical soil report provides the necessary parameters for the model. However, infiltration is not always feasible or desirable. Factors like high groundwater tables, poor soil quality, or the presence of soil contaminants can preclude its use. The model must accurately reflect the site-specific conditions, whether the system is designed as a sealed vault or an open-bottom infiltration gallery, as this choice significantly impacts the overall drainage design and performance.
Modeling Pretreatment and Water Quality Components
Beyond managing flood risk, stormwater systems for data centers must also address water quality. Runoff from parking lots and roadways can carry pollutants like hydrocarbons, heavy metals, and sediment. To comply with federal programs like the National Pollutant Discharge Elimination System (NPDES), many projects require a pretreatment component to remove these pollutants before the runoff enters the main underground storage system. These components, such as hydrodynamic separators or baffle boxes, are represented in the hydraulic model as nodes or junctions. While their primary function is water quality, they can introduce minor head losses that affect the hydraulic grade line of the overall system. The civil engineering model must account for these losses to ensure that water can flow freely into the storage chambers without backing up into the upstream conveyance pipes. This attention to detail is crucial for creating a fully integrated system that meets both quantity and quality objectives for permit submittals.
Verifying System Performance: Drawdown and Recovery Analysis
A key regulatory requirement for many detention systems is that they must recover their storage volume within a specific timeframe after a storm, often 24 to 72 hours. This is known as drawdown. The purpose is to ensure the system is ready for a potential subsequent storm event. The hydraulic model is the primary tool used to verify that the proposed design meets this performance standard. The simulation is run for an extended period after the rainfall ends to track the water level as it recedes through the outlet structure and/or infiltration. If the model shows the system fails to draw down in the required time, the design must be revised. This could involve increasing the size of the low-flow orifice, adding a secondary outlet, or enhancing the system’s infiltration capabilities (if site conditions permit). This drawdown analysis is a critical component of the engineering report submitted for permitting and demonstrates the long-term viability and resilience of the stormwater management plan.
RSP’s Approach to Underground Stormwater Modeling
At RSP Engineers, our process for designing and modeling underground systems for data centers is rigorous and collaborative. We begin with a thorough site analysis, including a review of topographic data, environmental constraints, and local regulatory requirements. We work closely with the Geotechnical engineer to understand soil properties and groundwater conditions, which directly inform our modeling assumptions. Our team uses industry-standard hydraulic modeling software to build a detailed digital representation of the entire drainage network. Our approach is iterative. We model preliminary layouts to inform the overall site plan design, allowing the project architect and other disciplines to proceed with confidence. As the design progresses, we refine the model to incorporate precise grading, utility crossings, and outlet conditions. This ensures our final drainage design is not only compliant but also cost-effective and constructible. We prepare comprehensive reports and exhibits that clearly demonstrate system performance, facilitating a smoother agency review process for our clients.
Common Challenges in Modeling and Design
Even with advanced software, modeling underground systems presents several challenges. One of the most common is accurately defining the downstream tailwater condition, which can be influenced by off-site culverts, channels, or regional floodplains. Inaccurate tailwater assumptions can lead to a system that is either over-designed or, more dangerously, undersized. Another challenge is integrating the large footprint of the storage system with a dense network of other underground utilities. Thorough utility coordination is essential to avoid conflicts with power, water, sewer, and fiber optic lines that are also critical to the data center’s operation. Furthermore, construction-phase issues, such as encountering unexpected rock or groundwater, can necessitate last-minute design changes. A well-structured and flexible model allows engineers to quickly evaluate alternatives and provide solutions without delaying the project schedule. This adaptability is a hallmark of experienced Civil Engineering firms.
Partner with RSP for Your Data Center Site Development
Successfully navigating the complexities of data center site design requires a team with specialized expertise. At RSP Engineers, we provide comprehensive site engineering services tailored to the unique demands of mission-critical facilities. Our team excels at delivering robust stormwater management solutions, from initial feasibility studies and hydraulic modeling to final permitting and construction administration. We understand the critical importance of protecting your investment through meticulous drainage design and seamless utility coordination. Let our experts handle the complexities of your site’s civil infrastructure so you can focus on bringing your facility online. Contact us today to discuss how we can support your next data center project.
Conclusion
Accurate hydraulic modeling is not just a regulatory hurdle; it is a fundamental component of risk management for any data center development. A well-designed and properly modeled underground storage system provides critical protection against flooding, ensures regulatory compliance, and maximizes the usable land area on a project site. The process requires a deep understanding of civil engineering principles, detailed site data, and expertise in specialized software. By investing in a thorough modeling effort upfront, developers can avoid costly construction-phase changes, prevent future operational disruptions, and ensure the long-term resilience of their mission-critical infrastructure. Partnering with an experienced civil engineering firm is the first step toward achieving a successful and secure site development outcome.
FAQs
-
Most industry-standard software (like SWMM, ICPR, or HEC-HMS) uses similar underlying hydraulic principles. The choice often depends on regulatory agency preference and the specific complexities of the site. The key is not the software itself, but the quality of the input data and the expertise of the Professional Engineer building the model. A skilled engineer can produce a reliable drainage design using any of these powerful tools.
-
The geotechnical soil report is critical. It provides the infiltration rates used to model exfiltration, which can significantly reduce the required storage volume. It also identifies the seasonal high groundwater table, which determines the minimum elevation of the system to ensure it can dewater properly and function as designed. Without a thorough geotechnical investigation, the model would rely on conservative assumptions that could lead to a larger, more expensive system.
-
Yes. While the primary function is often flood control (quantity), these systems are integral to water quality compliance. They are typically preceded by a pretreatment device to capture gross pollutants. The detention process itself allows finer sediments to settle out. Furthermore, systems designed for infiltration help filter runoff through native soils, providing an additional layer of treatment before it reaches groundwater, which is a key part of NPDES permit compliance.
