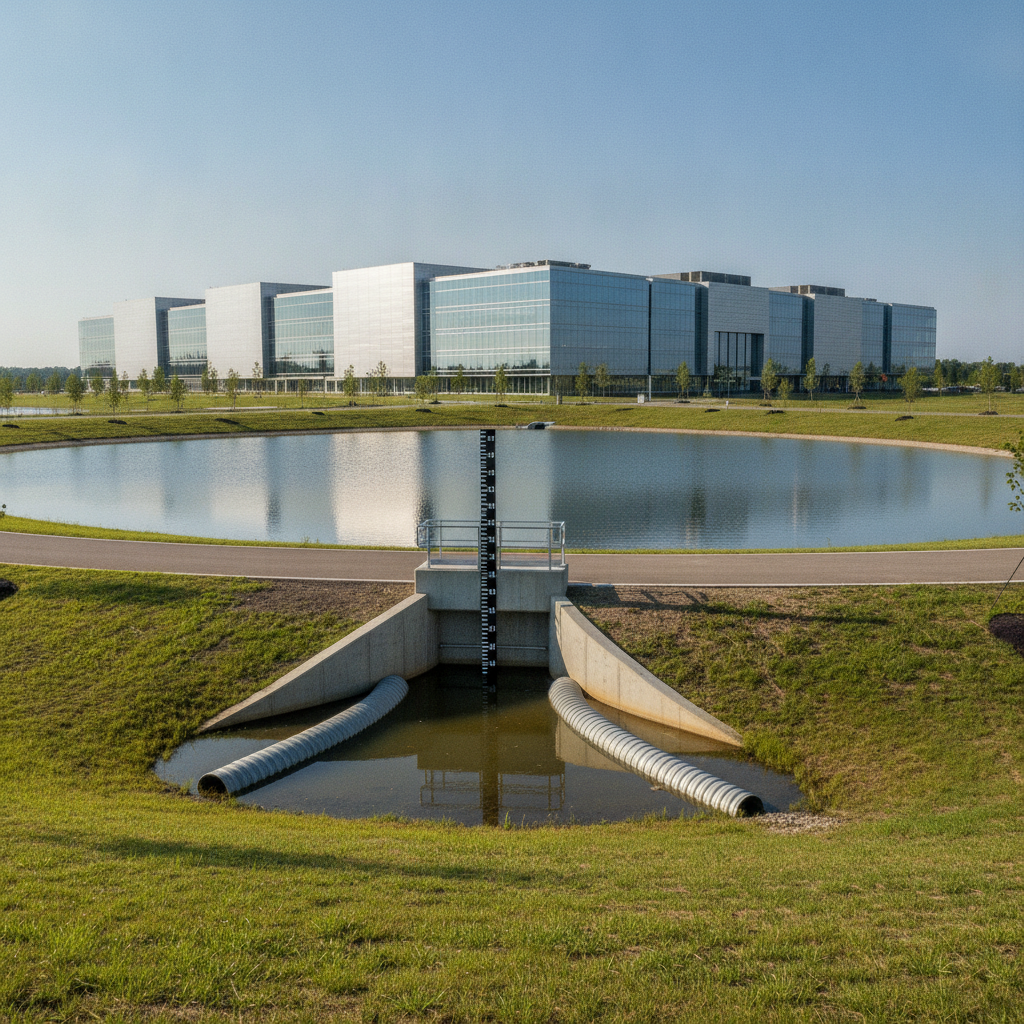

Modeling Data Center Pond Recovery and Drawdown
A technical guide to modeling stormwater pond recovery and drawdown for data centers. Learn how civil engineers analyze back-to-back storms, infiltration, and tailwater to ensure site resilience.
The Critical Role of Stormwater Recovery in Data Center Site Design
Data centers house sensitive, high-value equipment that is exceptionally vulnerable to water damage. A flooding event can lead to catastrophic equipment failure, data loss, and extended downtime, resulting in significant financial and reputational damage. Effective stormwater management is a foundational element of risk mitigation. The primary goal is to ensure that post-development runoff rates and volumes do not exceed pre-development conditions, preventing adverse impacts on downstream properties and infrastructure. Pond recovery modeling directly addresses the risk of back-to-back storm events. A pond that fails to drain adequately after one storm has diminished capacity to handle the next, increasing the risk of overtopping and site flooding. For a mission-critical facility, this is an unacceptable risk. Therefore, the drainage design must prove that the system can reliably restore its required treatment and attenuation volume within a specified timeframe, ensuring continuous site protection and operational continuity.
Regulatory Frameworks and Performance Standards for Drawdown
Comparison of Drawdown Modeling Parameters
| Parameter | Outlet-Controlled System Considerations | Infiltration-Based System Considerations |
|---|---|---|
| Primary Driver | Size and configuration of orifices, weirs, and pipes in the outlet control structure. | Saturated hydraulic conductivity (Ksat) of the underlying and surrounding soils. |
| Key Geotechnical Data | Soil stability for embankment and structure foundations. Less sensitive to permeability. | Geotechnical soil report with infiltration testing (e.g., double-ring infiltrometer) and seasonal high water table determination. |
| Critical Downstream Factor | Tailwater elevation in the receiving conveyance system (ditch, pipe, or channel). | Groundwater elevation and potential for mounding. Less sensitive to downstream water levels. |
| Common Modeling Software | ICPR, SWMM, HEC-RAS, and other dynamic hydraulic models focusing on structure hydraulics. | MODRET, SWAT, or models with integrated groundwater-surface water interaction modules. |
| Failure Risk | Clogging of the outlet orifice or pipe; downstream capacity restrictions causing high tailwater. | Soil clogging over time (biofouling); underestimation of seasonal high water table; inaccurate soil data. |
| Regulatory Focus | Demonstrating peak discharge rate control and meeting drawdown time via controlled release. | Proving long-term infiltration capacity and ensuring separation from the water table. |
The design of a stormwater pond is governed by a matrix of local, state, and federal regulations. A central requirement is demonstrating that the pond can recover a specific volume of storage within a mandated period, often ranging from 24 to 72 hours post-storm. This ensures the system is prepared for subsequent rainfall and that water quality treatment objectives are met. The specific recovery time, design storm frequency (e.g., 25-year, 100-year), and rainfall distribution (e.g., NOAA Atlas 14) are dictated by the reviewing agency. Permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A thorough zoning compliance and permitting review is the first step in any design process. Submittals must typically include detailed hydrologic and hydraulic models, supporting calculations, and construction plans prepared by a licensed Professional Engineer. These documents undergo rigorous agency review to ensure they meet all applicable stormwater design criteria and protect public health, safety, and welfare.
Key Mechanisms of Pond Drawdown: Infiltration vs. Outlet Control
A pond’s ability to draw down is primarily driven by two mechanisms: infiltration into the underlying soil and controlled release through an outlet structure. Most designs incorporate a combination of both. Infiltration-based systems rely on the vertical and horizontal movement of water through the soil, a process known as exfiltration. The effectiveness of this method is entirely dependent on the site’s subsurface conditions, including soil permeability and the depth to the seasonal high water table. A detailed Geotechnical soil report is non-negotiable for quantifying these parameters. Outlet-controlled systems use structures like orifices, weirs, and pipes to slowly release water into a downstream conveyance system. The outlet structure design is carefully calibrated to meet peak discharge rate limitations and drawdown time requirements. The modeling for these systems focuses on stage-storage-discharge relationships, ensuring the release rate is controlled and predictable. Many modern ponds, particularly wet detention systems, use a combination of a permanent pool for water quality and an outlet structure to bleed off excess storm volume over the required recovery period, a key aspect of drainage design.
Modeling Back-to-Back Storm Events and Verifying Storage Availability
To prove a site’s resilience, engineers must model sequential storm scenarios. This isn’t as simple as running a single storm simulation. The analysis must account for the antecedent moisture conditions—the state of the system before the storm arrives. For a back-to-back event, the second storm begins while the pond is still draining from the first, meaning the initial water level is elevated and surrounding soils may be saturated. Using sophisticated software like ICPR, SWMM, or HEC-HMS, engineers create a continuous simulation. The model routes the hydrograph from the first storm through the pond, calculating the drawdown over time. Then, the hydrograph for the second storm is introduced. The critical test is whether the peak water level during the second storm remains below the pond’s overflow elevation. This storage volume verification provides quantitative proof that the site development plan is resilient and compliant with regulatory performance standards.
The Influence of Groundwater and Tailwater on Drawdown Performance
Two external factors can significantly impede pond recovery: groundwater and tailwater. A high seasonal water table can reduce or even eliminate a pond’s ability to drain via infiltration. If the groundwater level is near the pond bottom, there is no hydraulic gradient to drive exfiltration. This is known as groundwater mounding and must be accurately modeled to avoid overestimating a pond’s recovery capability. This is a critical consideration during the site plan design phase. Tailwater refers to the water level in the downstream channel or pipe that the pond discharges into. If the downstream system is swollen from the same storm, this high tailwater can submerge the pond’s outlet pipe, drastically reducing the discharge rate or stopping it altogether. Accurate tailwater conditions, often derived from FEMA flood studies or separate downstream network models, must be used as a boundary condition in the pond model. Ignoring tailwater can lead to a design that appears to work on paper but fails in reality.
How Drawdown Assumptions Impact Pond Footprint and Project Costs
The assumptions made during drawdown modeling have direct consequences for the project’s physical layout and budget. A design that relies on optimistic infiltration rates or ignores potential tailwater issues may result in an undersized pond. While this might seem to save space initially, it creates significant permitting and operational risks. Conversely, a highly conservative design with slow drawdown requires a much larger pond volume to meet storage requirements. This larger pond consumes valuable real estate that could otherwise be used for buildings, parking, or equipment yards, directly impacting the project’s bottom line. The civil engineering team must strike a balance, creating a robust and compliant design that is also efficient. This involves a trade-off analysis between excavation costs, land use, and long-term performance, often explored through value engineering exercises during the site development process.
Our Approach to Data Center Stormwater Modeling
At RSP Engineers, our process for modeling data center pond recovery begins with comprehensive due diligence. We conduct a thorough review of regulatory requirements, existing utility mapping, and available topographic and geotechnical data. Our team performs a detailed site investigation to verify field conditions, which informs our initial site plan design and stormwater concept. We utilize industry-standard modeling software to build a dynamic representation of the site’s hydrology. Our analysis includes rigorous testing of back-to-back storm events, sensitivity analysis for tailwater and groundwater assumptions, and optimization of the pond footprint. We work collaboratively with the entire project team, providing clear documentation and responsive support during the agency review and permitting process to ensure a smooth path to approval.
Common Challenges in Pond Recovery and Drawdown Analysis
Even with careful planning, several challenges can arise during the design and permitting of data center stormwater systems. The most common issue is discovering that initial assumptions about soil or groundwater conditions were inaccurate, requiring a late-stage redesign. This often stems from an inadequate Geotechnical soil report or unforeseen site variability. Another frequent challenge is restrictive downstream conditions. The existing public drainage system may lack the capacity to accept the proposed discharge, forcing a more complex and expensive on-site storage solution. Finally, coordinating the stormwater design with the extensive underground utility networks required for a data center—including power, fiber, water, and sewer—demands meticulous utility coordination to avoid conflicts and ensure all systems can be constructed and maintained effectively.
Partner with RSP Engineers for Your Mission-Critical Site Development
Designing resilient and compliant stormwater management systems for data centers requires specialized expertise. The team at RSP Engineers has a deep understanding of the unique challenges posed by mission-critical facilities. We provide comprehensive civil engineering services, from initial due diligence and master planning to detailed drainage design, permitting, and construction administration. Let us help you navigate the complexities of pond recovery modeling and deliver a site that is secure, compliant, and ready for operation. Contact us today to discuss your project needs.
Ensuring Site Resilience Through Advanced Stormwater Modeling
In conclusion, the modeling of pond recovery and drawdown is not merely a regulatory checkbox; it is a fundamental component of risk management for data center development. An accurately modeled and robustly designed stormwater system provides critical protection against flooding, ensuring operational continuity for these vital facilities. Achieving this requires a deep understanding of hydrology, hydraulics, and geotechnical principles. By focusing on detailed analysis of back-to-back storms, tailwater effects, and groundwater interaction, our civil engineering team ensures your site development project is built on a foundation of resilience.
FAQs
-
Pond recovery time is the duration required for a stormwater pond to drain a specific volume of water after a storm, making that storage available for the next event. It is a critical regulatory requirement and a key measure of site resilience. For a mission-critical data center, ensuring rapid recovery is vital to prevent flooding from sequential storms.
-
A back-to-back storm simulation is a continuous hydrologic model that applies a second design storm to the model while the pond is still draining from the first. This tests the system under stressed conditions, with elevated starting water levels and potentially saturated soils, to verify that the pond volume is sufficient to prevent overtopping.
-
Yes, absolutely. If the seasonal high water table is at or near the bottom of the pond, it can significantly slow or completely stop drawdown via infiltration. The water in the pond has nowhere to go. This is why accurate geotechnical investigation to determine the seasonal high water table is a critical part of the civil engineering design process.
