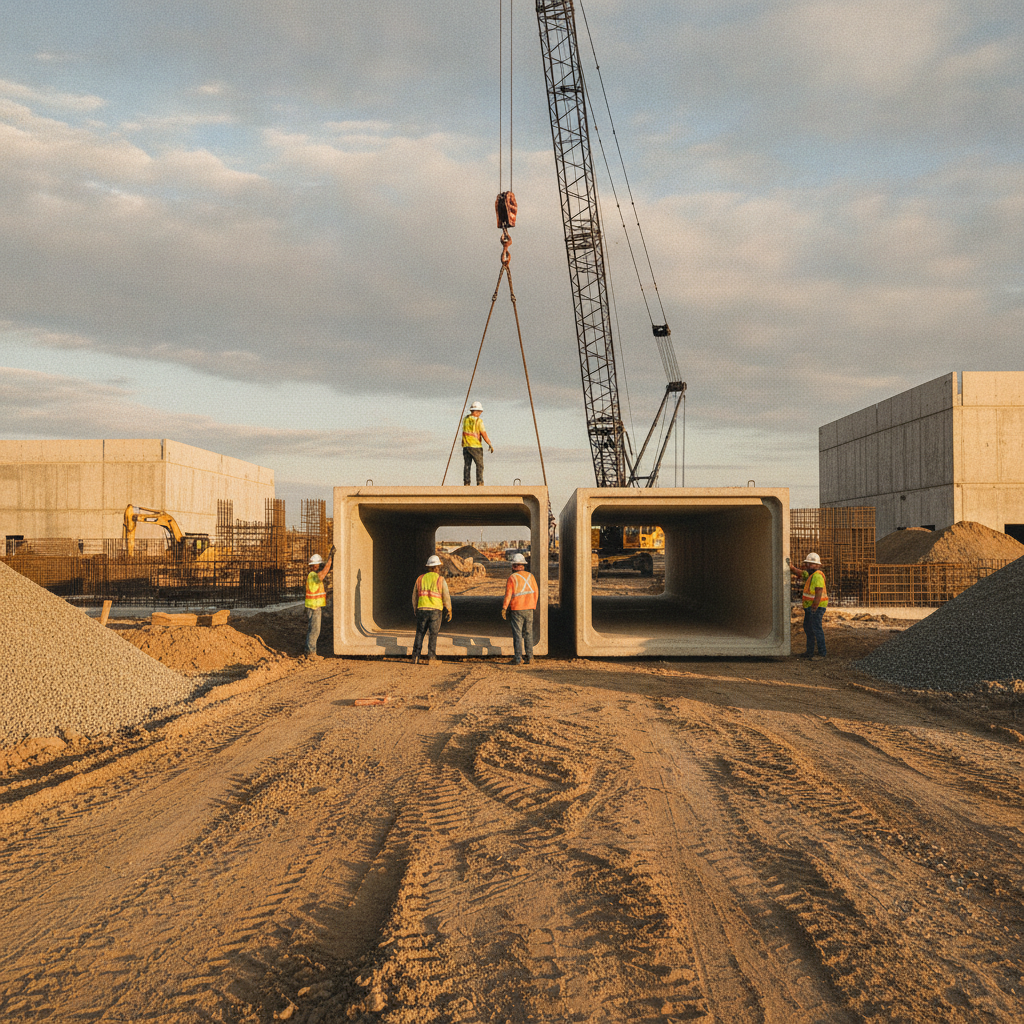

Modeling Culvert Crossings at Data Center Entrances
A technical guide to modeling culvert crossings for data centers. Learn about inlet/outlet control, storm sizing, scour protection, and permitting for mission-critical site access.
The Hydraulic Principles of Culvert Design
At its core, a culvert is a hydraulic structure designed to convey water under an obstruction. Its performance is governed by a complex interplay of factors, primarily whether it operates under inlet control or outlet control. In inlet control, the flow capacity is dictated by the geometry of the culvert entrance and the depth of the upstream water (headwater). The barrel’s length, slope, and roughness are less significant. Conversely, outlet control conditions exist when flow is restricted by high downstream water levels (tailwater) or the hydraulic friction within the culvert barrel itself. A thorough hydraulic analysis is required to determine which condition governs under various storm events. The analysis involves calculating the headwater depth—the water elevation at the culvert’s entrance—for specific flow rates. This value is compared against allowable limits to ensure the roadway is not overtopped and that upstream properties are not adversely impacted. The tailwater depth, or the water elevation at the culvert’s exit, is equally important as it can submerge the outlet and significantly reduce the culvert’s capacity, forcing it into outlet control. Accurate hydraulic modeling using software like HEC-RAS is essential to simulate these conditions and ensure a resilient design.
Sizing Culverts for Design Storms and Emergency Events
Culvert Design Parameter Comparison
| Parameter | Single Large Box Culvert | Multi-Barrel Pipe Culvert | Arch Culvert |
|---|---|---|---|
| Hydraulic Efficiency | Excellent for high flows; wide, open span minimizes obstruction. | Good, but center piers can collect debris and reduce efficiency. | Good, often preferred in environmentally sensitive areas for maintaining a natural stream bottom. |
| Construction Footprint | Can be large, requiring significant excavation and potentially temporary dewatering. | Can be more adaptable to phased construction; individual barrels are easier to handle. | Often requires specialized footings and a wider excavation to accommodate the arch shape. |
| Debris Handling | Superior. The large, single opening is less prone to clogging from floating debris. | Moderate. Prone to clogging if one barrel becomes blocked, which can cascade to others. | Good, especially for fish passage, but can be susceptible to blockage from large woody debris. |
| Maintenance Access | Good. Easy for personnel to enter for inspection and cleaning. | Difficult, especially for smaller diameter pipes that may require remote camera inspection. | Generally good, with an open bottom that allows for easier inspection of the natural channel. |
| Structural Span | Can achieve very long, clear spans suitable for wide channels or multi-lane roads. | Limited by the practical diameter and structural capacity of individual pipes. | Can achieve moderate to long spans, providing a good balance of structure and hydraulics. |
Data center infrastructure demands a conservative, risk-averse approach to design. This means sizing culverts not just for common rainfall events but also for more extreme storms to ensure emergency access is maintained. The process involves analyzing both a design storm and a check storm. The design storm (e.g., a 25-year or 50-year storm event) represents the standard for which the system must operate without roadway overtopping or significant upstream flooding. The check storm (e.g., a 100-year storm event) serves as a safety check to ensure catastrophic failure is avoided and that emergency vehicle access is preserved even in a more severe scenario. Rainfall data for these analyses are typically sourced from federal resources like NOAA Atlas 14, which provides precipitation frequency estimates across the United States. Design storm frequency requirements and freeboard criteria often vary by jurisdiction, and it is crucial to confirm all applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. For a data center, the consequence of losing access justifies designing to a higher standard, often exceeding minimum local requirements to protect the asset and ensure operational continuity during extreme weather.
Scour Protection and End Treatment Selection
Water flowing into and out of a culvert accelerates, creating turbulent conditions that can erode the surrounding soil—a process known as scour. Unchecked scour can undermine the culvert’s foundation, headwalls, and the roadway embankment, leading to structural failure. A comprehensive scour analysis is a critical step in designing a durable crossing. This analysis informs the design of necessary countermeasures to protect the structure and surrounding channel. Common scour protection measures include riprap aprons, articulated concrete blocks, and concrete energy dissipators placed at the culvert outlet to slow the water and prevent erosion. The choice of end treatments also plays a vital role. Concrete headwalls and wingwalls provide structural stability, improve hydraulic efficiency at the entrance, and prevent embankment erosion. While simpler options like mitered ends exist, the robust protection offered by full headwalls is often warranted for the high-value infrastructure of a data center.
Navigating Permitting for Crossings in Regulated Waters
When a culvert crossing impacts a regulated stream, wetland, or other water body, a complex permitting process is triggered. At the federal level, the U.S. Army Corps of Engineers (USACE) often has jurisdiction under Section 404 of the Clean Water Act, which regulates the discharge of dredged or fill material into Waters of the United States. Obtaining a Section 404 permit can be a lengthy process requiring detailed environmental documentation, an alternatives analysis, and potentially mitigation for any unavoidable impacts. Beyond federal requirements, state environmental agencies and local floodplain administrators typically have their own distinct regulations and permitting processes. These can include requirements related to water quality, flood storage compensation, and protected species. Early engagement with all regulatory bodies is essential for a successful project. A thorough permit submittal package, supported by sound engineering and environmental science, is key to navigating the agency review process efficiently and avoiding costly project delays.
Culvert Material and Structural Considerations
The choice of culvert material directly impacts the project’s longevity, cost, and hydraulic performance. The most common materials for data center access roads are reinforced concrete pipe (RCP) and precast concrete box culverts. Concrete offers exceptional durability, a long service life, and the structural capacity to handle the heavy loads from construction traffic and fully loaded tractor-trailers. Other materials like corrugated metal pipe (CMP) and high-density polyethylene (HDPE) may be suitable for smaller, less critical applications but are often less preferred for primary data center access due to their lower rigidity and shorter design life. The structural design must account for both dead loads (the weight of the soil cover above the culvert) and live loads (vehicular traffic). A geotechnical analysis of the underlying soils is necessary to ensure the foundation can support the structure without excessive settlement. Proper installation, including bedding preparation and backfill compaction, is just as critical as the design itself. Improper installation can lead to structural distress, joint separation, and premature failure of the culvert system.
The RSP Engineers Approach to Culvert Modeling and Design
At RSP Engineers, we approach data center culvert design with a focus on resilience and risk mitigation. Our process is systematic and thorough, ensuring all variables are considered. It begins with comprehensive data collection, including a detailed topographic survey, a site-specific geotechnical investigation, and a deep dive into the regulatory requirements of all reviewing agencies. This foundational data informs our hydrologic and hydraulic modeling. Using industry-standard software like HEC-RAS modeling, we simulate a range of storm events to analyze culvert performance, confirm headwater elevations, and assess potential scour. This analysis drives the final design, which is detailed in a complete set of construction documents. We then manage the entire permitting process, preparing clear and defensible permit submittals and coordinating directly with agency staff. During construction, we provide construction administration services, reviewing contractor submittals and ensuring the final installation meets the design intent and project specifications.
Common Issues in Data Center Culvert Projects
Even with careful planning, culvert projects can face challenges. One of the most common issues is underestimating the tailwater elevation from a downstream system, which can severely compromise a culvert’s capacity. Another frequent problem is inadequate scour protection, which can lead to costly and dangerous erosion over time. On a crowded data center site, conflicts with critical underground infrastructure are a major concern, making thorough utility coordination an absolute necessity before any excavation begins. Finally, permitting delays are a significant risk, often stemming from incomplete applications or unresolved questions from environmental agencies regarding impacts to wetlands or wildlife. Proactively addressing these potential issues through detailed modeling, robust design, and clear communication with all stakeholders is the best strategy to keep the project on schedule and on budget.
Your Partner in Mission-Critical Site Development
Designing resilient infrastructure for data centers requires a specialized skill set that blends technical expertise with a deep understanding of operational risk. The team at RSP Engineers provides the expert civil engineering, stormwater management, and site development services needed to ensure your facility’s access is secure and reliable. From initial feasibility studies and hydraulic modeling to final permitting and construction support, we are your trusted partner in building the foundation for digital infrastructure. Contact us to discuss your project’s unique challenges.
Conclusion: Ensuring Resilient Access for Digital Infrastructure
A culvert crossing at a data center entrance is far more than a simple pipe in the ground; it is a critical asset that ensures operational continuity. Its design requires a rigorous hydraulic analysis, a conservative approach to storm event sizing, and careful attention to long-term durability and scour protection. By investing in expert civil engineering and thorough modeling, data center developers can mitigate the significant risks associated with site access and ensure their facilities remain secure and operational, regardless of the weather. Successful project execution hinges on a design that satisfies both hydraulic performance requirements and complex regulatory compliance.
FAQs
-
Inlet control occurs when the culvert barrel can convey more flow than the inlet opening will accept. The flow capacity is limited by the headwater depth and inlet configuration. Outlet control occurs when flow is restricted by factors downstream, such as high tailwater or the friction and slope of the culvert barrel itself.
-
The design storm (e. g. , 25-year) ensures the culvert operates without overtopping under normal design conditions. The check storm (e. g. , 100-year) is a safety verification to ensure that even in a more extreme event, the failure is not catastrophic and that critical functions, like emergency access, are maintained.
-
Permits depend on the location and nature of the water body being crossed. They can include a federal Section 404 permit from the USACE for impacts to Waters of the U. S. , state-level environmental resource permits, and local floodplain development permits. Requirements vary significantly by jurisdiction.
