Metering Strategies for Data Center Water Systems
Explore essential water metering strategies for data centers, including master vs. submetering, deduct meters for cooling, and utility coordination. A civil engineering guide for developers.
Master Metering vs. Submetering: A Foundational Choice
The first decision in any data center water strategy is the overall architecture: will you rely on a single master meter or implement a comprehensive submetering program? A master meter is the primary meter installed by the utility provider, measuring the total volume of potable water entering the entire site. While simple, it provides a single data point that offers no insight into where the water is actually being used on a large, complex campus. Submetering involves installing additional, privately-owned meters downstream of the master meter to isolate and measure water flow to specific systems. For a data center, this typically means separate meters for cooling tower makeup, domestic water systems (restrooms, kitchens), and irrigation. This approach creates a detailed water balance analysis, allowing operators to reconcile the sum of the submeters with the master meter’s reading. Any significant discrepancy can signal a major leak in the underground distribution network, enabling rapid response and preventing costly water loss and potential site damage. For any large-scale site development, a submetering strategy is essential for granular control.
Metering for Cooling System Water Use and Sewer Credits
Data Center Water Metering Strategy Comparison
| Meter Type | Primary Purpose | Key Benefit | Typical Location |
|---|---|---|---|
| Master Meter | Measure total water consumption for the entire campus. | Primary billing meter required by the utility provider. | At the property line in a utility-owned vault or easement. |
| Cooling Makeup Submeter | Isolate and measure all water supplied to cooling towers. | Foundation for calculating sewer credits and tracking cooling efficiency. | On the makeup water line, typically near the central utility plant. |
| Evaporation Deduct Meter | Quantify water lost to evaporation that does not enter the sewer. | Directly reduces sewer utility bills by substantiating non-sewered water use. | Often the same as the cooling makeup meter, when approved by the utility for this purpose. |
| Domestic Submeter | Measure water used for restrooms, kitchens, and other sanitary purposes. | Enables leak detection and internal cost allocation. | Downstream of the master meter, on the branch line serving administrative or support buildings. |
| Irrigation Submeter | Measure water used for landscape irrigation. | Supports water conservation efforts and provides data for additional sewer credits. | On the dedicated irrigation service line, before the distribution valves. |
The largest water consumer in most data centers is the cooling system, specifically evaporative cooling towers. These systems dissipate heat by evaporating water, a process that consumes millions of gallons. This water is supplied to the towers as makeup water to replace what is lost to evaporation, blowdown, and drift. Accurately metering this makeup water is the first step, but the real financial optimization comes from accounting for the water that never enters the sanitary sewer system. This is the critical role of the deduct meter. Because a significant portion of the cooling water evaporates into the atmosphere, it does not contribute to the wastewater stream that requires treatment. Most sewer authorities calculate billing based on the assumption that a high percentage of water consumed is returned to the sewer. By installing a deduct meter on the makeup water line and providing data on evaporative loss, operators can apply for substantial sewer credits. This directly reduces operational expenditures and is one of the most significant financial benefits of a sophisticated metering plan. The civil engineering design must incorporate the proper placement and configuration of these meters to satisfy utility requirements.
Domestic Water and Irrigation System Metering
While cooling systems represent the largest share of water use, metering for domestic and irrigation systems is also a critical component of a comprehensive strategy. Submetering the domestic water supply to administrative buildings, restrooms, and support facilities helps in identifying leaks, promoting conservation, and allocating costs internally if the campus has multiple tenants or departments. An unusually high reading on a domestic submeter can be the first indication of a costly leak that would otherwise go unnoticed until the next master utility bill arrives. Similarly, metering irrigation systems provides multiple benefits. It allows facility managers to optimize landscape watering schedules based on actual consumption data rather than just timers, supporting water conservation goals, especially in water-scarce regions. Like cooling tower evaporation, water used for irrigation does not enter the sanitary sewer system. Therefore, data from an irrigation submeter can also be used to apply for sewer credits, further reducing utility costs. This level of detail is invaluable for both operational management and sustainability reporting.
Sizing, Accuracy, and Technology Integration
The effectiveness of a metering strategy hinges on the technical specifications of the meters themselves and their integration with campus-wide monitoring systems. Proper meter sizing is paramount. A meter that is too large for its application will not accurately register low flow rates, while an undersized meter can create a pressure drop and fail under peak demand. The goal is to select a meter with a high turndown ratio—the ability to accurately measure a wide range of flow rates. This ensures that both trickle flows from a potential leak and peak flows during a cooling tower fill cycle are captured. Modern meters (such as magnetic or ultrasonic types) offer high accuracy and digital outputs that can be seamlessly integrated with a Building Management System (BMS) or a Data Center Infrastructure Management (DCIM) platform. This integration transforms metering from a monthly billing tool into a real-time operational asset. The BMS can be configured to generate alarms for abnormal flow conditions, track consumption trends, and automate the collection of data for WUE calculations and other sustainability reports. This level of utility coordination and data management is a hallmark of modern, efficient facility design.
Utility Coordination and Permitting for Meter Installations

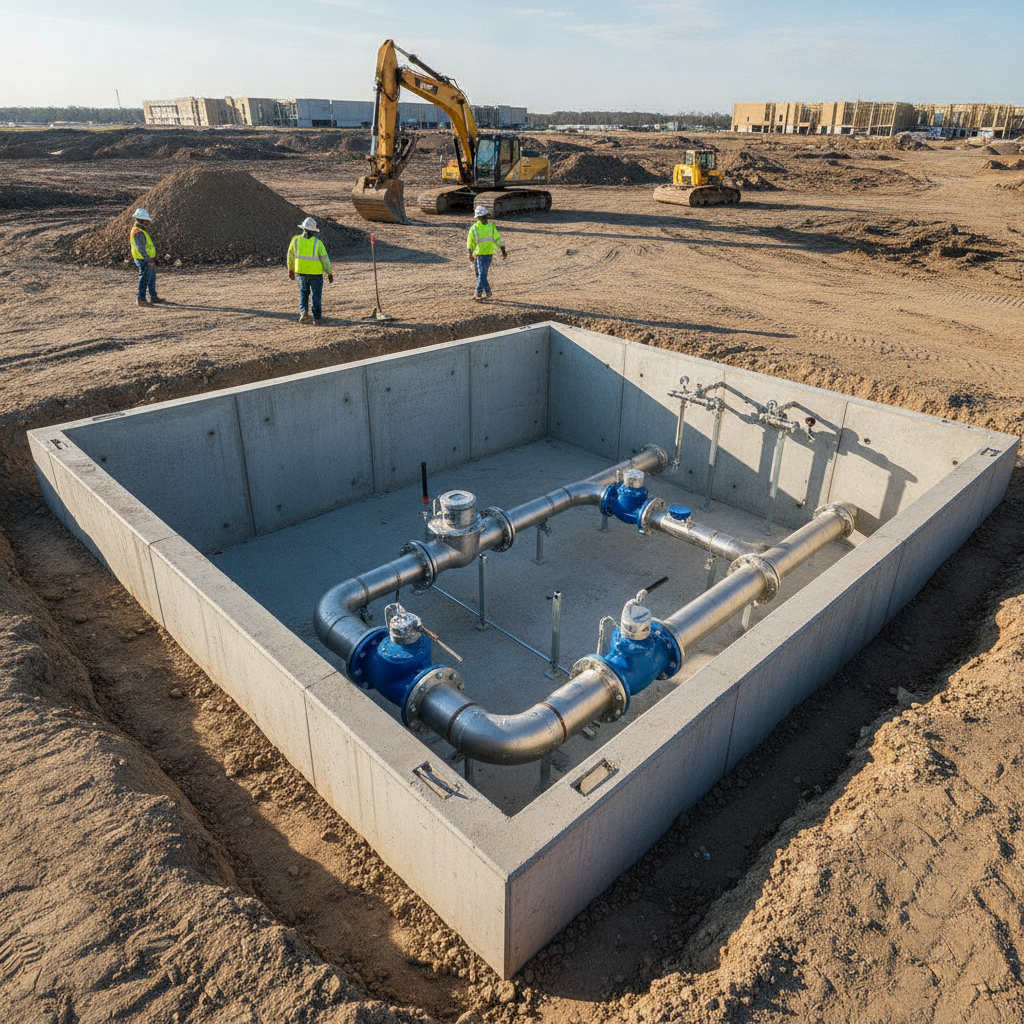

Installing a water metering system, especially the primary service connection and any meters used for utility billing adjustments, requires extensive utility coordination and a formal permitting process. The design of the meter assembly, including the meter vault, bypass piping, and required backflow prevention devices, must adhere to the specific standards of the local water and sewer authority. These standards dictate everything from the materials used to the physical dimensions and accessibility of the vault for maintenance and reading. The design and permitting process is a core task for the civil engineering team. It involves preparing detailed drawings and specifications for review and approval by the utility provider before any construction can begin. Permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. Early and continuous communication with the utility’s engineering department is crucial to avoid delays in the project schedule. A successful project requires navigating these local requirements to ensure full zoning compliance and operational readiness.
The RSP Engineers Approach to Water System Design
At RSP Engineers, our process begins with a comprehensive evaluation of the project’s specific needs. We start by developing a detailed water balance analysis to forecast consumption across all systems, which informs the entire design. We collaborate with data center developers and operators to align the metering strategy with both financial objectives, such as minimizing sewer costs, and corporate sustainability goals, like achieving a target Water Usage Effectiveness (WUE). Our team manages the critical process of utility coordination from day one, engaging with local water and sewer authorities to understand their specific standards for meter vaults, backflow prevention, and permit submittals. We design robust and accessible infrastructure that not only meets these requirements but also facilitates long-term maintenance. By integrating our civil engineering design with the project’s overall BMS/DCIM strategy, we deliver a cohesive system that provides actionable data for the life of the facility.
Common Challenges in Data Center Metering
Even with a well-conceived plan, data center metering projects can face several challenges. One of the most common is inaccurate readings resulting from improperly sized or installed meters, which can undermine the entire business case for submetering. Another frequent issue involves sewer credit disputes with the utility provider, often arising from inadequate documentation or a meter configuration that doesn’t meet their specific requirements for verification. Technical challenges include BMS integration failures, where meters are physically installed but cannot communicate data effectively to the central monitoring platform. This leaves operators data-blind and unable to leverage the system for real-time decision-making. Finally, poor physical design can lead to significant maintenance access issues, making it difficult or unsafe for technicians to read, service, or replace meters in confined underground vaults. Proactive civil engineering and careful planning are essential to mitigate these risks. Frequently Asked Questions What is a deduct meter and why is it critical for a data center? A deduct meter is a submeter that measures water not returned to the sanitary sewer system. For data centers, this is primarily water used in cooling towers that is lost to evaporation. By precisely measuring this volume, operators can prove to the sewer utility how much water did not become wastewater, allowing them to receive sewer credits that can significantly lower their monthly utility bills. How does our metering strategy affect our Water Usage Effectiveness (WUE) score? Water Usage Effectiveness (WUE) is a key sustainability metric calculated by dividing total annual water use by the IT equipment energy use. An effective submetering strategy is essential for accurate WUE reporting. It allows you to precisely measure the water consumed by the data center’s core operations (cooling) and separate it from other uses like irrigation or office consumption, leading to a more accurate and favorable WUE calculation. What level of accuracy can we expect from modern water meters? Modern water meters, such as ultrasonic or magnetic flow meters, are highly accurate, often within ± 1-2% of the actual flow rate across a wide range. The key is proper meter sizing and installation. An experienced civil engineering firm will select a meter with a high turndown ratio to ensure accuracy at both the low and high ends of the expected operational flow range. Who is responsible for approving the meter vault and bypass design? The local utility provider or the authority having jurisdiction over the water and sewer systems is the ultimate approval authority. Your civil engineering consultant will prepare detailed design drawings and specifications for the meter vault, piping, and backflow prevention assembly based on the utility’s published standards. These plans must be submitted and formally approved before construction can begin. Can we retrofit an existing data center with a more advanced submetering system? Yes, retrofitting is often feasible and highly beneficial. It typically involves identifying strategic points in the existing plumbing to install new submeters. The process requires careful planning to minimize operational disruption. A thorough site investigation and coordination with a civil engineering firm are necessary to design the retrofit, manage the installation, and handle the permitting with the local utility. Partner with RSP Engineers for Your Mission-Critical Project A strategic approach to water metering is fundamental to the financial and operational success of any data center. The expert team at RSP Engineers provides the specialized civil engineering services needed to navigate this complex landscape. We manage every aspect, from initial water balance analysis and utility coordination to detailed design and navigating the complex permitting process. Contact us today to ensure your facility’s water systems are designed for peak performance, efficiency, and long-term value. Conclusion In the world of data center development, where every watt and every dollar counts, water management can no longer be an afterthought. A robust, data-driven metering strategy is a cornerstone of modern, high-performance facility design. It provides the visibility needed to control costs through sewer credits, the precision to manage resources responsibly, and the data to substantiate sustainability claims. Achieving this requires diligent utility coordination, meticulous drainage design, and expert civil engineering to ensure the system is permitted, installed, and integrated correctly from the start. Related Articles from RSP Engineers Navigating Utility Infrastructure for Large-Scale Data Center Campuses Stormwater Management Design for Mission-Critical Facilities The Civil Engineer’s Role in Data Center Site Selection
