ICPR Modeling Applications for Data Center Developments
Explore how ICPR modeling is used for complex stormwater management on data center campuses, including interconnected pond routing, hydraulic analysis, and regulatory compliance.

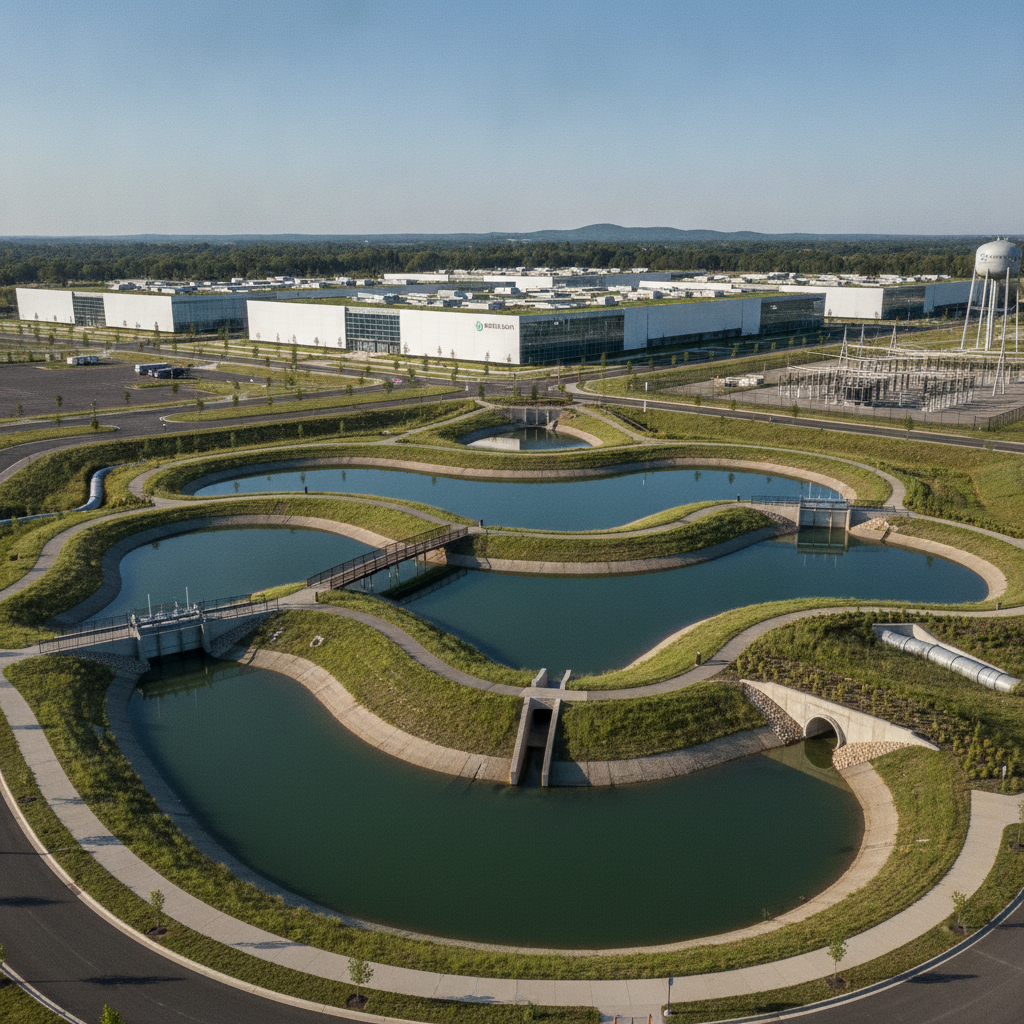

The Unique Stormwater Challenges of Data Center Campuses
Unlike typical commercial developments, data centers present a unique set of challenges for civil engineering and stormwater design. The sheer scale of impervious surface area concentrates runoff, increasing peak flow rates and volumes that can overwhelm conventional drainage systems. The cost of failure is astronomical; even minor flooding can lead to catastrophic equipment damage, data loss, and extended downtime, violating stringent service-level agreements. Furthermore, these facilities require immense electrical and cooling infrastructure, often with underground utility vaults and duct banks that are highly sensitive to water intrusion. The stormwater management system must be designed to protect not only the main data halls but also this critical supporting infrastructure. This requires a holistic approach to site development that prioritizes water control, conveyance, and storage with a high degree of certainty and redundancy, which is precisely where advanced modeling becomes indispensable.
Understanding ICPR: Simultaneous Hydrology and Hydraulics
ICPR Model Input vs. Output for Data Center Analysis
| Model Component | Key Inputs | Critical Outputs for Permitting & Design |
|---|---|---|
| Drainage Basins | Area (acres), curve number or runoff coefficient, time of concentration, design rainfall distribution. | Peak runoff rate (cfs), total runoff volume (acre-feet), runoff hydrograph. |
| Storage Nodes (Ponds) | Stage-storage relationship (elevation vs. volume), initial water level, treatment volume requirements. | Peak water surface elevation, confirmation of required freeboard, pollutant removal calculations. |
| Conveyance Links (Pipes) | Diameter, material (Manning's n), length, invert elevations, shape. | Peak flow rate, velocity, hydraulic grade line (HGL) analysis to check for surcharging. |
| Control Structures (Weirs/Orifices) | Type (e.g., sharp-crested weir), dimensions (crest length, orifice diameter), invert elevation. | Peak discharge rate, stage-discharge curve, outflow hydrograph to demonstrate attenuation. |
| System Outfall | Tailwater condition (e.g., fixed elevation, time-series stage), downstream conveyance limits. | Total discharge hydrograph for the site, comparison of pre- vs. post-development conditions. |
ICPR is a dynamic simulation modeling software that excels at analyzing complex stormwater systems. Its primary advantage over simpler methods is its ability to solve for hydrology (the generation of runoff from rainfall) and hydraulics (the movement of water through pipes, channels, and ponds) simultaneously. This integrated approach provides a much more accurate representation of how a drainage system behaves during a storm event, especially on sites with complex, interconnected features. In an ICPR model, the entire drainage network is represented as a system of basins, nodes, and links. The model uses time-series rainfall data, such as distributions from NOAA Atlas 14, to simulate runoff generation across different land uses. It then routes this flow through the network, accounting for the dynamic effects of backwater, storage attenuation in ponds, and the operational logic of control structures like weirs and orifices. This provides a complete picture of water surface elevations and flow rates throughout the system at every time step of the simulation, offering a level of detail crucial for mission-critical site engineering services.
Core Components of an ICPR Model for a Data Center Site
Building an accurate ICPR model requires a meticulous data-gathering and setup process. A qualified civil engineering team creates a digital twin of the proposed site’s drainage network by defining three primary component types. This detailed setup is fundamental to producing reliable results for both design optimization and the permitting process. Basins: These are the hydrologic subcatchments that represent distinct drainage areas, such as rooftops, parking lots, or landscaped zones. Each basin is defined by its area, soil type, ground cover, and time of concentration, which collectively determine how quickly and how much runoff it generates. Nodes: Nodes represent locations where water can collect or be routed, such as stormwater ponds, underground vaults, manholes, or simple pipe junctions. For storage nodes like ponds, a critical input is the stage-storage relationship, a table that defines the storage volume available at incremental water depths. Links: Links are the hydraulic connectors that move water between nodes. These can be pipes, open channels, culverts, weirs, or orifices. Each link is defined by its physical characteristics (e.g., pipe diameter, material, slope) and hydraulic properties, including the stage-discharge relationship for control structures.
Regulatory Compliance and Permitting with ICPR Results
A primary function of a sophisticated stormwater model is to demonstrate regulatory compliance to the authorities having jurisdiction. The outputs from an ICPR simulation—such as peak water surface elevations, peak discharge rates, and pollutant removal efficiencies—form the core of the drainage report included in permit submittals. This data provides verifiable proof that the proposed design meets all applicable criteria for flood control, water quality, and floodplain management. Because ICPR provides a dynamic, system-wide simulation, it is particularly effective for demonstrating compliance in complex scenarios, such as phased developments or sites with multiple discharge points. The detailed hydrographs and summary tables generated by the model are presented to reviewers to show that post-development runoff does not adversely impact downstream properties or regulated water bodies. It is critical to note that permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. This proactive engagement, supported by a defensible ICPR model, is key to a streamlined agency review process.
Key ICPR Modeling Applications in Data Center Design
Beyond basic compliance, ICPR modeling is a powerful design tool used to optimize the performance and resilience of a data center’s stormwater management system. Engineers can simulate a wide range of scenarios to test the system’s limits and make informed design decisions. This proactive analysis is a hallmark of quality civil engineering for mission-critical facilities. Flood Risk and Resilience Analysis Engineers can model extreme storm events, far exceeding typical regulatory requirements, to identify potential vulnerabilities. This includes simulating scenarios like a control structure failure or a blocked pipe to ensure the system has sufficient redundancy and that critical infrastructure remains protected even under adverse conditions. This level of analysis is crucial for satisfying the stringent uptime requirements of a modern data center. Master Drainage Planning for Phased Campuses Data center campuses are often built in phases over many years. ICPR allows for the modeling of both interim and ultimate build-out conditions. This ensures that the drainage design for Phase 1 can accommodate the increased runoff from future phases without requiring a costly retrofit. This foresight is essential for long-term campus viability and responsible land development.
The RSP Engineers Approach to Stormwater Modeling
At RSP Engineers, our approach to stormwater management for data centers is rooted in a deep understanding of both the regulatory landscape and the operational risks. Our process begins with a thorough site assessment and data collection effort to ensure our model is built on a foundation of accurate topographic, land use, and rainfall data. We then construct a detailed ICPR model that reflects the specific constraints and objectives of the project. Our team runs a comprehensive suite of design storm simulations to optimize the drainage design, ensuring it is not only compliant but also cost-effective and resilient. We pride ourselves on producing clear, concise drainage reports that facilitate an efficient agency review. Throughout the process, we provide proactive utility coordination and collaborate closely with the entire project team to integrate the stormwater system seamlessly with the overall site development plan.
Common Issues and Pitfalls in Data Center Drainage Modeling
Even with powerful software like ICPR, the quality of the output depends entirely on the quality of the input and the expertise of the modeler. Several common pitfalls can compromise the accuracy of a data center’s stormwater analysis. Inaccurate or outdated topographic survey data can lead to incorrect basin delineations and storage calculations. Assuming a simple, fixed tailwater elevation at the discharge point can grossly misrepresent how the system will perform when the downstream system is also at capacity. Another frequent issue is the oversimplification of complex control structures, which can lead to inaccurate predictions of discharge rates and pond stages. Finally, failing to account for the construction sequence and phasing can result in an undersized system in early phases or costly rework later. Mitigating these risks requires a skilled Professional Engineer with extensive experience in dynamic stormwater management modeling and a meticulous quality control process. Frequently Asked Questions (FAQ) Why is ICPR often preferred over other models for complex data center sites? ICPR’s key advantage is its ability to perform a fully dynamic simulation, solving for hydrology and hydraulics simultaneously. This is crucial for accurately modeling systems with interconnected ponds, backwater effects, and complex control structures, all of which are common in large-scale data center development. What rainfall data is used in an ICPR model? Models typically use synthetic design storm distributions derived from nationally recognized sources like NOAA Atlas 14 or other agency-specified technical manuals. These sources provide rainfall depths for various durations (e.g., 24-hour) and frequencies (e.g., 10-year, 100-year) specific to the project’s geographic location. How does the model account for future campus expansion? A robust drainage design for a phased campus involves creating a master model that includes the ultimate build-out condition. The stormwater ponds and primary conveyance systems are designed for this future scenario, ensuring that infrastructure built in Phase 1 has adequate capacity to serve the entire campus once completed, preventing costly retrofits. Can ICPR model subsurface drainage systems like exfiltration trenches? Yes. Subsurface systems can be modeled in ICPR as storage nodes with a defined stage-storage relationship. In addition, their discharge characteristics can be defined to account for both infiltration into the surrounding soil (exfiltration) and overflow into the downstream conveyance system, making it a versatile tool for integrated stormwater management. What is the typical agency review time for a complex stormwater model submittal? Review times vary significantly depending on the jurisdiction, the complexity of the project, the completeness of the permit submittal package, and the agency’s current workload. A well-documented report with a clear, defensible model can help streamline the process, but timelines can range from a few weeks to several months.
Your Partner for Mission-Critical Site Engineering
Navigating the complexities of data center site development requires a civil engineering partner with specialized expertise. RSP Engineers leverages advanced tools like ICPR to deliver resilient, compliant stormwater management solutions that protect your critical assets. From initial due diligence and master planning to final permitting and construction administration, our team is ready to help you de-risk your project and achieve your operational goals. Contact us today to discuss your project’s unique drainage and site design needs.
Conclusion
For data center developers and operators, effective stormwater management is a non-negotiable component of site viability and resilience. ICPR modeling provides the sophisticated analytical power needed to design and permit the complex drainage systems these mission-critical facilities require. By accurately simulating real-world hydraulic behavior, a well-executed ICPR model serves as a crucial tool for optimizing drainage design, demonstrating regulatory compliance, and ultimately protecting a high-value investment from the risks of flooding. Partnering with an experienced civil engineering firm is the first step toward a successful outcome.
