Floodplain Compensation Strategies for Data Center Campuses
A guide to floodplain compensation for data center development. Learn about compensatory storage, cut-to-fill ratios, hydraulic connectivity, and permitting from civil engineering experts.
The Core Principle of Compensatory Storage in Floodplain Development
The foundation of floodplain regulation, guided by the National Flood Insurance Program (NFIP), is the principle of no adverse impact. This means that any new development cannot increase flood risk for other properties. When a developer places fill in a floodplain, they are effectively displacing water that would have occupied that space during a flood event. This displaced water must go somewhere, and if not properly managed, it can raise flood elevations, increase flood velocities, and expand the boundaries of the inundated area, putting other properties at risk. To prevent this, regulatory agencies require the creation of compensatory storage. This is typically achieved by excavating material from another part of the project site that is also within the floodplain. The goal is to create a new storage volume that is hydraulically equivalent to the volume that was lost. A successful design ensures that the site’s post-development flood storage capacity is equal to or greater than its pre-development capacity, thereby maintaining the local hydraulic regime and satisfying the no adverse impact requirement. This is a critical step in securing site development permits from the local floodplain administrator.
Calculating Fill Volume and Required Compensation Ratios
Floodplain Compensation Design Parameters
| Parameter | Typical Requirement | Civil Engineering Consideration |
|---|---|---|
| Compensation Ratio | 1:1 to 1.5:1 (Excavation:Fill) | Must be confirmed with the local floodplain administrator. A higher ratio increases earthwork costs but provides a regulatory factor of safety. |
| Elevation Matching | Elevation-for-elevation analysis is often required. | Requires detailed grading design and volumetric calculations at multiple elevation contours, impacting the shape and location of the compensation area. |
| Hydraulic Connectivity | Must be directly and permanently connected to the flood source. | The design must include stable conveyance channels or swales. An isolated area is not compliant. Location is critical. |
| Side Slopes | Typically 3:1 (H:V) or flatter. | Flatter slopes are more stable and easier to maintain but require a larger land area (footprint) to achieve the target volume. |
| Low-Flow Drainage | Must drain fully after a flood event to prevent ponding. | The bottom of the compensation area should be graded with positive slope to an outlet, preventing stagnant water issues. |
| Long-Term Maintenance | A maintenance plan is often a permit condition. | The plan must address sediment removal, vegetation control, and inspection frequency to ensure the design volume is preserved over the life of the project. |
The first step in designing a compensation plan is to precisely calculate the volume of fill being placed within the floodplain. This calculation is not based on the total fill on site, but specifically on the volume of fill placed below the Base Flood Elevation (BFE). Using detailed topographic surveys and the proposed site grading plan, engineers create a three-dimensional model to quantify this encroachment. This analysis forms the basis for the entire compensation design and is a key component of the permit submittals. Once the fill volume is known, the required compensation volume is determined. While a simple 1:1 ratio (one cubic foot of compensation for every cubic foot of fill) is a common baseline, many authorities require a higher cut-to-fill ratio, such as 1.1:1 or 1.25:1, to account for potential modeling inaccuracies or to provide a factor of safety. These permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A thorough understanding of these local ordinances is essential for accurate project budgeting and scheduling in any land development project.
Elevation-for-Elevation vs. Volumetric Averaging
There are two primary methodologies for demonstrating that compensation is adequate: volumetric averaging and elevation-for-elevation matching. Volumetric averaging is the simpler approach, where the total volume of excavated compensation area must equal or exceed the total volume of fill below the BFE. While straightforward, this method can be hydraulically inaccurate if, for example, fill is placed at a low elevation and compensation is provided at a much higher elevation. This mismatch can alter how floodwaters are stored and conveyed during smaller, more frequent storm events. Because of this, many jurisdictions require a more rigorous elevation-for-elevation (or level-for-level) analysis. This method involves dividing the floodplain into vertical slices (e.g., one-foot increments) and ensuring that the volume of compensation provided within each slice is equal to or greater than the volume of fill placed in that same slice. This ensures the hydraulic function of the floodplain is preserved across the full range of flood stages up to the BFE. This approach often requires more complex grading design and hydraulic modeling but provides a much higher degree of confidence for agency review.

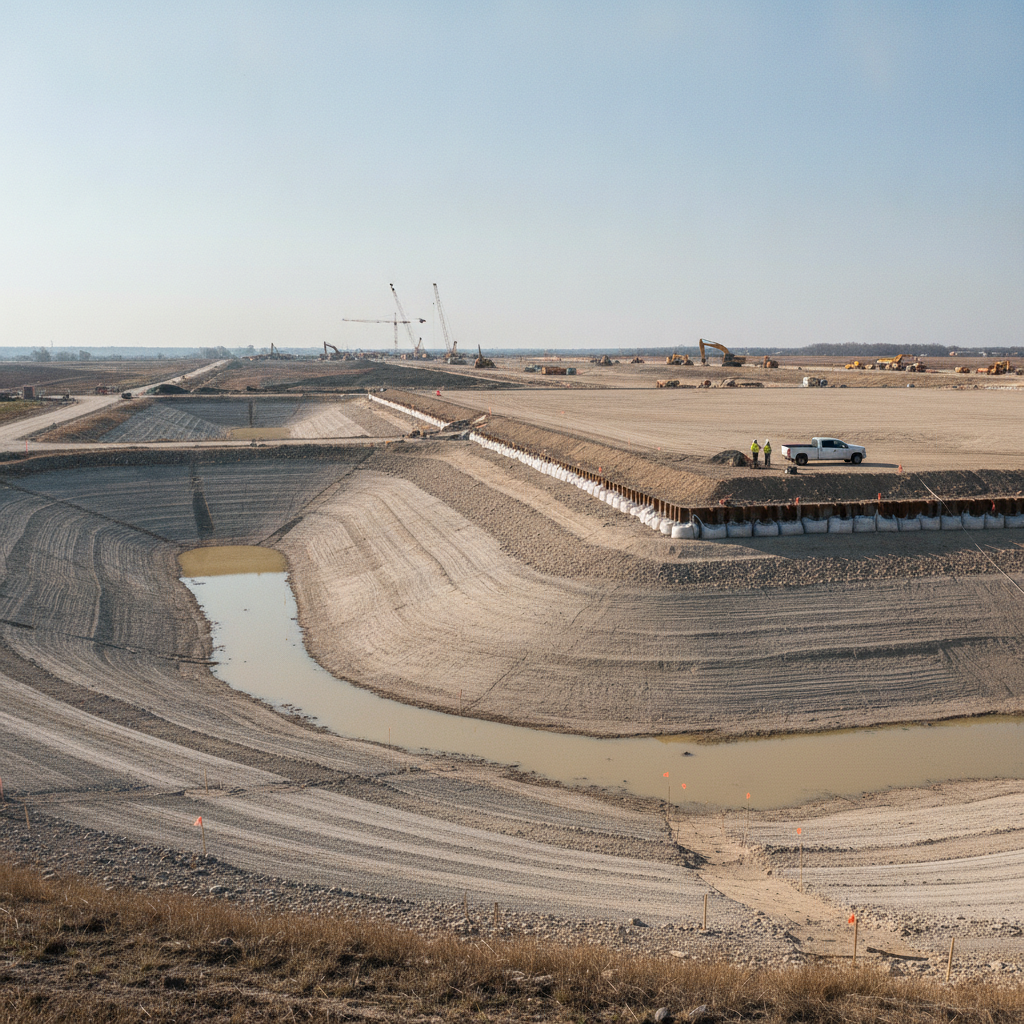

Siting and Designing Effective Compensation Areas
The location and design of a compensation area are just as important as its volume. The primary consideration is hydraulic connectivity—the compensation area must be directly connected to the source of flooding so that it can freely fill with and release floodwater as the flood rises and recedes. An isolated depression that cannot be reached by floodwaters provides no compensatory benefit. The design must demonstrate a clear and permanent connection to the main floodplain, often through graded swales or channels. The physical design of the compensation area must also be stable and maintainable. Side slopes are typically required to be gentle (e.g., 3:1 or 4:1) to prevent erosion and allow for safe maintenance access. The bottom of the area should be graded to provide positive drainage for low flows, preventing stagnant water and nuisance vegetation. Long-term maintenance plans are often required as part of the permitting process to ensure the area does not fill with sediment or become overgrown, which would reduce its storage capacity over time. This is a critical part of the overall site development plan.
Integrating Floodplain Compensation with Stormwater Management
On large data center sites, it is often tempting to co-locate floodplain compensation areas with stormwater management facilities like detention or retention ponds. This can be an efficient use of land, as both functions require significant graded areas. However, it is critical to understand that these are two distinct regulatory requirements. Floodplain compensation replaces lost static storage during a major flood, while stormwater management is designed to control the rate and quality of runoff from more frequent rainfall events. When combining these functions, the drainage design must clearly demonstrate that the required volume for each purpose is provided and that one function does not impair the other. For example, the required compensatory storage volume must be available above the permanent pool or control elevation of the stormwater pond. The hydraulic modeling submitted to the reviewing agencies must analyze both scenarios independently to prove compliance with both floodplain and stormwater regulations. This integrated approach requires careful utility coordination and a sophisticated design approach.
RSP Engineers’ Process for Floodplain Compensation Analysis
At RSP Engineers, our approach to floodplain compensation is systematic and proactive. We begin during the due diligence phase, using FEMA mapping and preliminary site data to identify potential floodplain encroachment and estimate compensation needs. This allows our clients to understand site constraints and potential earthwork costs early in the process. As the project moves into design, our team of Civil Engineers performs detailed topographic analysis and hydraulic modeling to precisely calculate fill and compensation volumes. We develop a comprehensive grading design that balances the need for an elevated, secure data center pad with the creation of a hydraulically effective and maintainable compensation area. Our submittal packages for agency review are thorough, including clear exhibits, detailed calculations, and a narrative report that demonstrates full compliance with local and federal regulations. We manage the permitting process from start to finish, addressing reviewer comments and securing the approvals needed to keep the project on track.
Common Issues and Pitfalls in Compensation Design
Even with a clear plan, several common issues can complicate floodplain compensation projects. One of the most frequent is failing to establish proper hydraulic connectivity, resulting in a compensation area that is ineffective and non-compliant. Another pitfall is inaccurate volumetric calculations, often stemming from outdated or low-resolution topographic data. This can lead to a design that is undersized, requiring costly changes during construction. Other challenges include conflicts with existing site features, such as wetlands, protected habitat, or major utilities, which can constrain the location and size of the compensation area. Finally, neglecting the long-term maintenance plan can lead to future compliance issues if the area silts in or becomes overgrown. Proactive civil engineering and thorough due diligence can help identify and mitigate these risks before they impact the project schedule and budget. Frequently Asked Questions (FAQ) What is the difference between floodplain compensation and stormwater detention? Floodplain compensation replaces the static volume of flood storage lost when fill is placed in a floodplain, ensuring a project does not increase flood levels elsewhere. Stormwater detention is designed to manage runoff from the developed site itself, temporarily storing it and releasing it at a controlled rate to prevent downstream erosion and flooding from more frequent rain events. Can we provide compensation on a different property? In some cases, off-site compensation may be allowed, but it is often complex and requires a higher level of scrutiny from regulators. The off-site location must typically be within the same watershed and demonstrate a clear hydraulic benefit to the same area impacted by the fill. This approach requires extensive hydraulic modeling and legal agreements. Does the type of fill material matter for compensation calculations? No, the calculation is based purely on the volume of space occupied by the fill below the Base Flood Elevation (BFE). Whether the material is soil, rock, or concrete, it displaces floodwater, and that displaced volume must be compensated for. How does a Letter of Map Revision (LOMR) relate to floodplain compensation? A Letter of Map Revision (LOMR) is a formal process to change the official FEMA flood map. If a project’s fill and compensation activities are significant enough to alter the floodplain boundaries or BFE, a LOMR may be required to reflect the new, as-built conditions. This is a separate but related regulatory process that often follows the completion of site development.
Partner with RSP Engineers for Your Data Center Development
Navigating the complexities of floodplain regulations requires specialized expertise in civil engineering, hydraulic analysis, and regulatory permitting. The team at RSP Engineers has a proven track record of guiding data center developers through the challenges of site development in flood-prone areas. We provide comprehensive services, from initial due diligence and feasibility studies to detailed drainage design, floodplain compensation modeling, and securing all necessary local and federal permits. Contact us today to discuss how we can ensure your mission-critical facility is designed for resilience and regulatory compliance.
Conclusion
Floodplain compensation is a non-negotiable element of data center development on sites with flood risk. A successful strategy is not merely about moving dirt; it is a complex exercise in civil engineering that requires precise calculations, thoughtful grading design, and a deep understanding of hydraulic principles. By prioritizing a robust compensation plan early in the design process, developers can mitigate regulatory risk, avoid costly delays, and ensure their project contributes to, rather than detracts from, community flood resilience. Proactive engagement with a qualified Professional Engineer is the key to navigating the permitting process and delivering a successful project.
