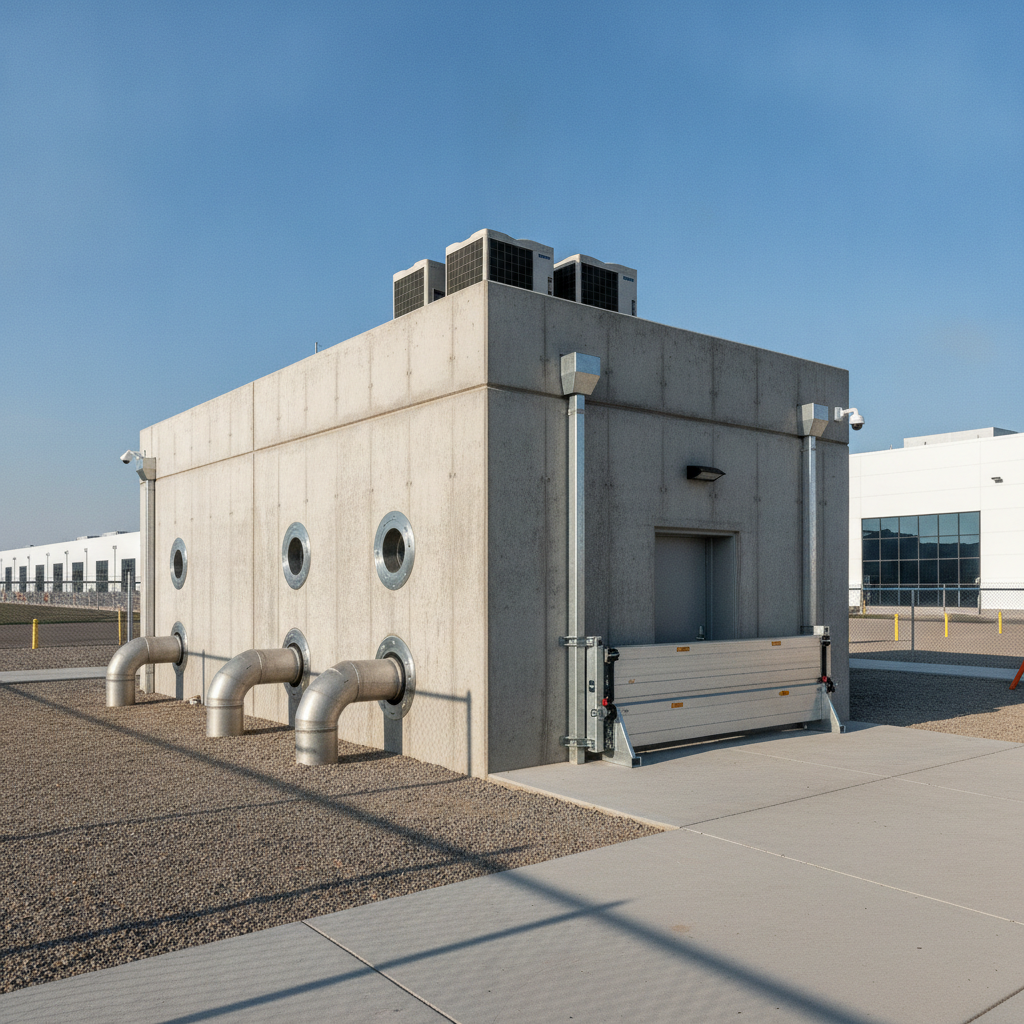

Flood-Proofing Support Buildings on Data Center Campuses
Explore dry and wet flood-proofing strategies for data center support buildings. Learn about hydrostatic loads, permitting, and resilient design from civil engineering experts.
Understanding Flood Risk for Ancillary Structures
The first step in designing resilient support buildings is a thorough analysis of the potential flood risk. This process begins with reviewing official floodplain maps, such as the Flood Insurance Rate Maps (FIRMs) published by the Federal Emergency Management Agency (FEMA). These maps delineate Special Flood Hazard Areas (SFHAs) and establish the Base Flood Elevation (BFE), which is the elevation that floodwaters are estimated to have a 1% chance of reaching or exceeding in any given year. The BFE serves as the minimum elevation for protective measures. However, a comprehensive risk assessment goes beyond regulatory maps. Our civil engineering team analyzes various flood sources, including riverine flooding from nearby water bodies, coastal storm surge in applicable regions, and localized flooding caused by intense rainfall overwhelming the campus stormwater management system. The location of support buildings—often on the periphery of a campus or at lower elevations to accommodate logistical needs—can expose them to higher risk. A successful site development plan anticipates these vulnerabilities and integrates flood mitigation from the earliest design stages.
Dry Flood-Proofing: Creating an Impermeable Barrier
Dry vs. Wet Flood-Proofing Methodologies
| Feature | Dry Flood-Proofing | Wet Flood-Proofing |
|---|---|---|
| Primary Goal | Keep interior completely dry and operational. | Equalize hydrostatic pressure to prevent structural failure. |
| Suitable Uses | Buildings with sensitive electrical equipment, control rooms, or high-value, non-relocatable assets. | Storage areas, warehouses with relocatable goods, parking structures, and open-air pavilions. |
| Key Components | Waterproof membranes, reinforced walls, watertight doors/shields, sealed penetrations. | Engineered flood vents, flood-resistant materials, elevated utilities and equipment. |
| Structural Considerations | Must resist full hydrostatic pressure and potential buoyancy (uplift) forces. | Must withstand inundation, scour, and hydrodynamic loads from moving water. |
| Utility Requirements | All utility penetrations below the flood level must be permanently sealed and watertight. Backflow preventers are critical. | All electrical, mechanical, and plumbing systems must be elevated above the flood protection elevation. |
| Operational Demands | Requires human intervention for deployable systems (e.g., installing flood panels) and regular maintenance. | Largely passive system but requires post-flood cleanup and inspection. |
Dry flood-proofing is a strategy designed to make a building substantially impermeable to floodwaters. The goal is to keep the interior completely dry by creating a waterproof shield around the structure up to the flood protection elevation. This approach is essential for buildings containing sensitive equipment, electrical components, or materials that cannot tolerate water exposure. Key components of a dry flood-proofing design include using waterproof coatings or membranes on exterior walls, reinforcing the structure to withstand immense hydrostatic pressure from standing water, and ensuring all penetrations are completely sealed. Special attention must be paid to openings like doors, windows, and utility conduits. These weak points are protected using deployable flood shields, watertight doors, and specialized sealed penetrations for electrical and plumbing lines. Floodplain management regulations and building code compliance often dictate stringent standards for these systems. Permitting requirements for dry flood-proofing vary by jurisdiction, and every project team must confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A licensed professional must typically certify that the design can resist flood forces and prevent seepage.
Wet Flood-Proofing: Allowing and Managing Floodwaters
In contrast to dry flood-proofing, wet flood-proofing is a strategy that allows floodwaters to enter a building intentionally. The primary objective of wet flood-proofing is to equalize the hydrostatic pressure on both sides of the building’s walls, preventing structural damage or catastrophic failure due to unbalanced loads. This method is suitable for less critical spaces, such as storage sheds, parking garages, or certain types of maintenance buildings where the contents are either flood-resistant or can be easily moved. A successful wet flood-proofing design relies on several key elements. The structure must be built with flood-resistant materials like concrete, masonry, and corrosion-resistant metals below the flood protection elevation. The design must incorporate engineered openings or flood vents that allow water to flow in and out freely. Critically, all utilities—including electrical systems, HVAC equipment, and plumbing—must be elevated above the anticipated flood level to prevent damage. The foundation and structural frame must be designed to withstand inundation and the hydrodynamic forces of moving water.
Critical Design Considerations for Flood-Proofed Structures
Beyond the primary choice between wet and dry methods, several other engineering factors are critical for success. Buoyancy, or uplift force, is a major concern for watertight, dry-proofed structures; if the structure is too light, it can literally float off its foundation. This requires robust anchoring systems or heavy foundation design. Both strategies must account for hydrodynamic loads—the force exerted by moving water and debris—which can be significant in areas with high-velocity flows. Effective utility coordination is non-negotiable. This includes installing backflow preventers on sewer and water lines to stop contaminated water from entering the building and the campus utility network. Electrical systems must be designed with disconnects and routing that protect them from inundation. Furthermore, ADA compliance must be maintained. Flood-proofing measures, such as raised thresholds or deployable barriers, cannot create permanent obstacles to accessible routes. The design must ensure that access can be safely maintained or quickly restored after a flood event.
Permitting and Regulatory Compliance
Navigating the regulatory landscape is a crucial part of any flood-proofing project. Development within a designated floodplain requires specific permitting from the local authority having jurisdiction, often the local floodplain administrator. The National Flood Insurance Program (NFIP) sets minimum standards that most communities adopt and enforce through local ordinances. These regulations often require detailed plans and certifications from a Professional Engineer to demonstrate that the proposed flood-proofing measures meet or exceed code requirements. The agency review process will scrutinize the design’s impact on flood elevations and its adherence to local rules. For example, dry flood-proofing of non-residential buildings is often allowed, but it requires rigorous certification. The flood-proofing strategy must also integrate with the overall campus stormwater management plan and achieve zoning compliance. Proactive engagement with regulators and clear documentation are key to securing timely approvals for the project.
RSP Engineers’ Approach to Resilient Support Building Design
At RSP Engineers, we implement a systematic process to deliver resilient and compliant flood-proofing solutions for mission-critical support buildings. Our approach is founded on a deep understanding of both the physical risks and the regulatory complexities of site development in flood-prone areas. Our process includes: Comprehensive Site Assessment: We begin by analyzing FEMA maps, local floodplain studies, and historical data. We also evaluate site-specific factors through detailed topographic surveys and, when necessary, Geotechnical Engineering investigations to understand soil conditions and their impact on foundation design. Strategic Method Selection: We work closely with data center owners and operators to select the most appropriate flood-proofing strategy. This decision is based on the building’s function, risk tolerance, and budget, ensuring the solution aligns with the campus’s overall operational goals. Integrated Civil Engineering: Our team integrates flood-proofing measures directly into the site plan design. This includes coordinating grading, drainage design, and utility routing to create a cohesive system that enhances overall site resilience. Proactive Permitting and Coordination: We manage all aspects of the permit submittals, preparing the necessary documentation, calculations, and engineering certifications. We act as the project’s advocate during the agency review, facilitating a smooth and predictable approvals process.
Common Issues and Mitigation Strategies
Even well-designed flood-proofing systems can fail if not properly implemented and maintained. One common issue is the failure of deployable systems. Flood panels or gates that are not regularly tested or are inaccessible during an emergency offer no protection. A clear operational plan and routine drills are essential. Another frequent point of failure is improperly sealed penetrations for utilities, which can allow significant water intrusion in a dry-proofed building. Rigorous inspection during and after construction is critical. Underestimating buoyancy forces on a dry-proofed structure can lead to catastrophic failure, making accurate calculations and a robust foundation design paramount. For wet-proofed buildings, a common oversight is failing to plan for post-flood recovery. A detailed plan for cleaning, drying, inspecting, and re-certifying the space is a necessary part of the strategy. Effective construction administration and quality control by experienced Civil Engineers can mitigate these risks before they become liabilities. Frequently Asked Questions Is dry or wet flood-proofing better for a data center support building? The choice depends entirely on the building’s function. Dry flood-proofing is necessary for structures housing critical electrical gear, security monitoring stations, or other sensitive equipment. Wet flood-proofing is a viable, often more cost-effective option for buildings used for general storage, vehicle maintenance, or other functions where contents can be elevated or are not susceptible to water damage. What is the ‘flood protection elevation’ and how is it determined? The flood protection elevation is the target height to which a building is protected from flooding. It is typically determined by taking the Base Flood Elevation (BFE) from the FEMA FIRM and adding a safety margin known as ‘freeboard.’ The required amount of freeboard is set by the local authority having jurisdiction and can range from one to several feet, providing an additional layer of protection against waves or uncertainties in flood modeling. Are flood-proofing measures inspected? Yes. During construction, the local building department will inspect flood-proofing elements like flood vents and foundation anchoring. For dry flood-proofing systems, the local floodplain administrator may require an inspection and certification by a Professional Engineer upon completion. Additionally, for facilities participating in certain insurance programs, periodic inspections and operational readiness checks of deployable systems may be required. How does flood-proofing impact the building’s foundation design? Flood-proofing has a significant impact on foundation design. A dry-proofed building must have a foundation strong enough to resist hydrostatic pressure and prevent uplift from buoyancy, often requiring deep foundations, helical piles, or a heavy mat slab. A wet-proofed building’s foundation must be designed to resist scour from moving water and withstand the saturated conditions without losing structural integrity. Can you combine dry and wet flood-proofing in the same building? Yes, a hybrid approach is often practical. For example, a two-story maintenance building could use wet flood-proofing for a ground-floor garage or storage area while employing dry flood-proofing for a second-floor office or control room. This strategy optimizes cost and resilience by applying the appropriate level of protection where it is needed most.
Your Partner in Mission-Critical Site Development
Protecting a data center campus requires a holistic approach that accounts for every piece of supporting infrastructure. The expert team at RSP Engineers provides the specialized civil engineering and permitting knowledge needed to design and implement effective flood-proofing solutions. From initial risk assessment and site plan design to navigating complex regulatory approvals, we ensure your entire facility is resilient, compliant, and ready for the future. Contact us to discuss how our site development services can safeguard your critical assets.
Conclusion
Flood-proofing the support buildings on a data center campus is not an optional upgrade; it is a fundamental component of a comprehensive risk management strategy. By carefully selecting between dry and wet flood-proofing methods, designers can protect both the structures and the critical functions they support. A successful project hinges on a detailed understanding of flood forces like hydrostatic pressure, the proper use of flood-resistant materials, and strict adherence to building code compliance. Ultimately, a proactive and integrated design approach ensures that the entire campus, not just the data hall, remains secure and operational in the face of a flood.
