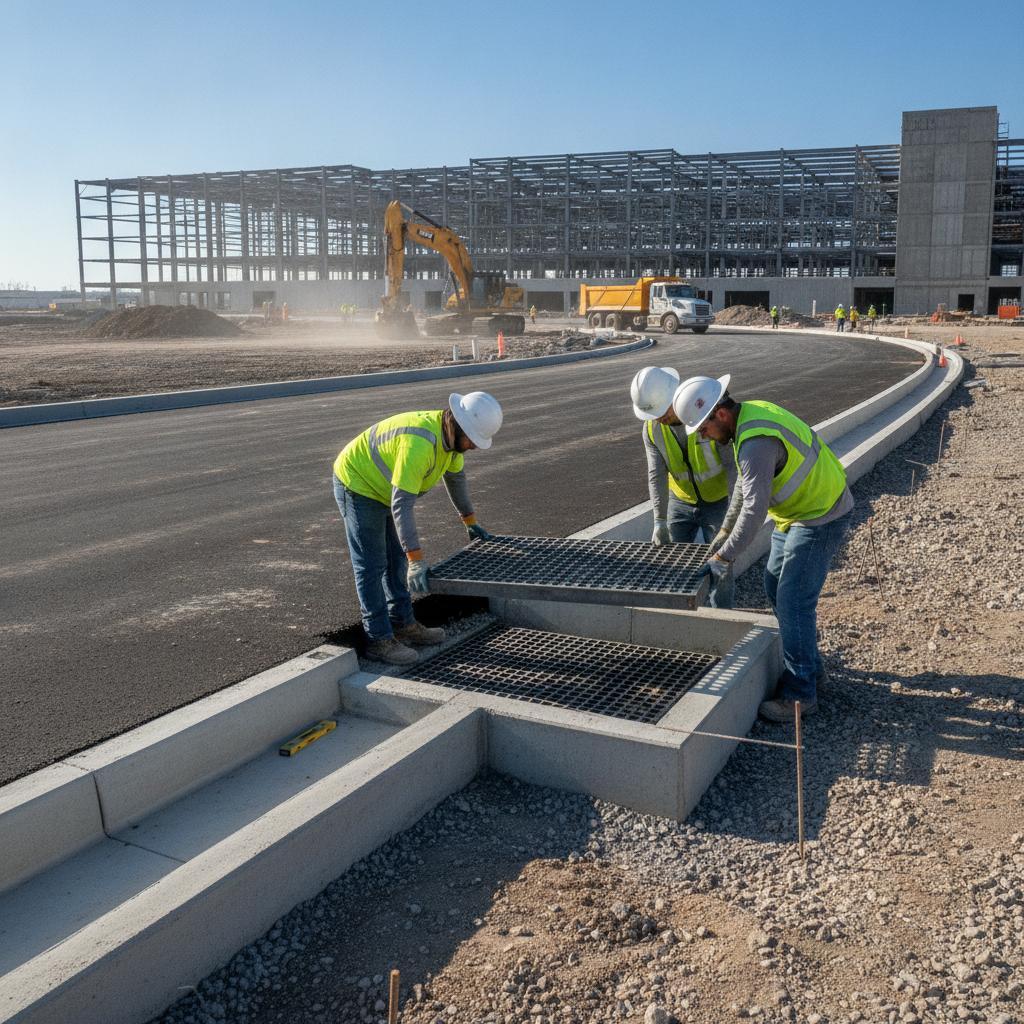

Evaluating Inlet Capacity on Data Center Campuses
Explore the critical civil engineering principles for evaluating stormwater inlet capacity on data center campuses, including gutter spread, clogging factors, and protecting mission-critical infrastru
The Critical Role of Stormwater Management in Mission-Critical Facilities
Data centers are uniquely vulnerable to the impacts of surface water ponding and flooding. Unlike typical commercial developments, even minor water intrusion can have catastrophic consequences. Electrical switchgear, backup generators, fuel tanks, and cooling systems are often located at or near ground level, making them susceptible to damage. The cost of downtime, data loss, and equipment replacement can run into the millions of dollars per hour, making proactive and resilient drainage design a high-return investment. Effective stormwater management is a core tenet of responsible site development. For data centers, this involves creating a comprehensive system that anticipates failure points and protects critical infrastructure at all costs. The goal is to control the flow of water from the moment it hits the pavement until it is safely discharged from the site. This requires a deep understanding of site hydrology, hydraulic principles, and the specific operational risks associated with mission-critical facilities.
Fundamental Hydraulics of Stormwater Inlets
Comparison of Inlet Types and Hydraulic Conditions
| Feature | On-Grade Inlet Condition | Sag Inlet Condition |
|---|---|---|
| Primary Hydraulic Behavior | Functions as a side-weir, intercepting a portion of gutter flow as it passes. | Functions as a true weir (at low depths) or an orifice (at higher depths), capturing all approaching flow. |
| Clogging Risk | Moderate. Debris can block a portion of the grate or curb opening, but flow can often continue past the inlet. | High. Debris accumulates at the low point, potentially blocking the entire inlet and causing significant ponding. |
| Bypass Flow Potential | High by definition. A portion of the flow is designed to bypass the inlet and continue downstream. | None, unless the inlet is completely overwhelmed, at which point water will overtop the curb. |
| Design Sensitivity | Sensitive to gutter geometry, cross-slope, and longitudinal slope. Calculations focus on capture efficiency. | Sensitive to ponding depth and headwater. Calculations focus on total capacity to prevent overtopping. |
| Typical Application on Data Center Campus | Along continuously sloped access drives, fire lanes, and perimeter roads. | At low points in parking lots, loading dock aprons, and intersections with grade changes. |
Stormwater inlets are the primary entry points for surface runoff into the underground conveyance system. Their performance is governed by fundamental hydraulic principles. The two most common types are grate inlets, which intercept flow across a grated opening in the pavement, and curb inlets, which use a vertical opening in the face of the curb. Often, these are combined into a single structure to maximize capture efficiency. Inlets operate under two distinct hydraulic conditions: on-grade and in-sag. An on-grade condition occurs when the inlet is situated on a continuous slope, allowing a portion of the water (bypass flow) to pass by the inlet and continue downstream. A sag condition exists at a low point where all approaching flow must be intercepted by the inlet, functioning like a weir or orifice. Design standards for inlet performance and allowable spread often vary by jurisdiction, and it is essential to confirm all criteria with the local, state, regional, and federal authorities that hold review authority over the site. Understanding which condition applies is the first step in any accurate capacity calculation.
Analyzing Gutter Flow and Pavement Spread
As rainfall collects on impervious surfaces like parking lots and access roads, it flows toward the curb line, creating what is known as gutter flow. The width of this flow, measured from the curb into the travel lane, is called pavement spread. Controlling pavement spread is a critical public safety and operational parameter. Excessive spread can impede access for fire trucks and other emergency vehicles, create hydroplaning risks for service vehicles, and violate local and national roadway design standards. On a data center campus, limiting spread is especially important on primary truck routes, around loading docks, and near employee parking areas. The civil engineering team must calculate the anticipated spread for a given design storm and ensure it remains within acceptable limits. This calculation depends on the pavement’s cross-slope, the longitudinal slope of the road, and the surface roughness. The results directly inform the required type, size, and spacing of stormwater inlets to keep access drives safe and functional during a significant rain event.
Accounting for Clogging Factors and Bypass Flow
In the real world, stormwater inlets rarely perform at 100% of their theoretical hydraulic efficiency. Debris such as leaves, sediment, and trash can partially or fully obstruct an inlet, drastically reducing its capacity. To account for this, engineers apply a clogging factor during the design process. This factor, typically ranging from 10% to 50% reduction in efficiency, provides a conservative and realistic estimate of performance during an actual storm. For inlets in an on-grade condition, any water that is not captured is termed bypass flow. This flow continues down the gutter to the next inlet in the system. It is critical that the drainage design accurately quantifies this bypass flow and adds it to the runoff approaching the subsequent downstream inlet. Failing to account for cumulative bypass flow can lead to a cascading failure where downstream inlets are overwhelmed, causing significant and unexpected flooding far from the initial point of collection. Proper accounting for both clogging and bypass is a hallmark of a resilient stormwater conveyance system.
Inlet Spacing and System-Wide Drainage Strategy
The determination of proper inlet spacing is an iterative process that synthesizes all the previously discussed factors. Engineers begin at the high point of a drainage area and work their way downstream, placing inlets at intervals that prevent pavement spread from exceeding the established maximum limit. At each proposed inlet location, they calculate the captured flow and the bypass flow, carrying the latter forward to the next location. This ensures the entire roadway or parking area is drained systematically. This analysis is part of a larger, system-wide strategy. The captured water enters a network of pipes and manholes that must also be sized to handle the cumulative flow from multiple inlets. This entire network, often modeled using sophisticated software like SWMM or ICPR, ultimately conveys the runoff to a point of discharge, such as a detention pond or public storm sewer. The civil engineering design must ensure that every component, from the first inlet to the final outfall, works in concert to manage the design storm event.
Protecting Critical Infrastructure from Ponding
The ultimate objective of a data center’s drainage system is to protect its critical infrastructure. This means ensuring that under no circumstances does ponding water reach building entrances, loading docks, electrical substations, or generator pads. The primary line of defense is a properly designed inlet and pipe system. However, a resilient design also includes a secondary plan for extreme events that may exceed the system’s capacity. This is achieved through careful site grading. Engineers design emergency overflow routes—subtle swales or graded pathways—that direct excess water away from sensitive areas and toward less critical zones, like landscape islands or detention basins. This ensures that even if an inlet clogs completely or a storm exceeds the design frequency, the resulting ponding is contained and routed safely. Analyzing ponding depth and flow paths during extreme events is a crucial step in hardening a data center campus against flood risk.
Our Process for Data Center Inlet Capacity Analysis
At RSP Engineers, our approach to data center drainage is systematic and data-driven, ensuring resilience and compliance. Our process involves several key phases: Site Data Collection & Criteria Review: We begin by gathering detailed topographic surveys, geotechnical data, and historical rainfall information from sources like NOAA Atlas 14. We then identify all applicable design criteria from the authority having jurisdiction, including allowable pavement spread and the required design storm frequency. Hydrologic & Hydraulic Modeling: Our team delineates the drainage basins across the campus to calculate runoff volumes and peak flow rates for all paved and landscaped areas. We use this data to build a detailed hydraulic model of the surface flow, allowing us to analyze gutter flow and spread with precision. Inlet Sizing & Spacing: Using the model, we perform an iterative analysis to select the appropriate type, size, and location for each inlet. We apply conservative clogging factors and meticulously track bypass flow to ensure the system functions cohesively and meets all site development standards. System Integration & Resilience Planning: We integrate the inlet design with the subsurface pipe network and overall stormwater management strategy. Crucially, we model extreme event scenarios to verify that emergency overflow paths function as intended, protecting critical facilities even if the primary system is exceeded. This comprehensive approach is essential for successful permit submittals.
Common Challenges in Data Center Drainage Design
Designing drainage systems for data center campuses presents unique challenges that require experienced engineering solutions. These often include: Flat Topography: Many data center sites are graded to be nearly flat, which makes achieving adequate pipe slopes for gravity flow and sufficient gutter velocity to prevent sediment deposition difficult. This requires careful grading design and potentially deeper excavations. Extensive Impervious Surfaces: The vast rooftops, parking lots, and service roads of a data center campus generate enormous volumes of stormwater runoff. This necessitates a high-capacity collection system with numerous, well-placed inlets and large-diameter pipes. Dense Underground Utility Corridors: Data centers feature a complex web of underground power, data, and mechanical utilities. Our utility coordination efforts are critical to ensure that the proposed storm drain network can be installed without conflicting with other essential infrastructure. Phased Construction: Campuses are often built in phases over many years. The initial site plan design and drainage system must be robust enough to function for Phase 1 while also being designed to seamlessly accommodate the increased runoff from future expansion.
Partner with RSP Engineers for Mission-Critical Site Design
Ensuring the resilience of a data center campus requires a deep understanding of the complex interplay between site grading, paving design, and hydraulic systems. The team at RSP Engineers has extensive experience providing the detailed civil engineering services necessary to protect these high-value assets. From initial feasibility studies and zoning compliance to final construction administration, we deliver robust stormwater management and land development solutions. Contact us to discuss how our expertise in utility coordination and drainage design can safeguard your next mission-critical project.
Conclusion
Evaluating inlet capacity is far more than a simple calculation; it is a critical risk mitigation exercise for any data center project. A design that fails to account for real-world conditions like inlet clogging, bypass flow, and extreme storm events puts the entire facility at risk. By focusing on a comprehensive drainage design, carefully managing pavement spread, and implementing a resilient, system-wide stormwater management strategy, developers can ensure their facilities remain secure, operational, and protected from the ground up.
FAQs
-
This is often dictated by the local authority, but for mission-critical facilities, we frequently recommend designing the primary collection system for a 10-year or 25-year storm event. We then analyze the system’s performance and overland flow paths during a 100-year storm event to ensure critical infrastructure is protected from extreme flooding.
-
Applying a clogging factor reduces the calculated efficiency of each inlet, meaning it captures less water. To compensate, engineers must either use larger inlets or, more commonly, place them closer together. This increases the total number of inlets on a project but builds a crucial margin of safety into the drainage design.
-
Flow spread is the width of water flowing along a curb during a storm. It is a critical parameter because excessive spread can impede traffic, create unsafe conditions for vehicles and pedestrians, and may violate local building code compliance. For data centers, keeping access drives clear for emergency vehicles is a primary concern.
