Emergency Overflow Routing Around Data Center Buildings
A guide to emergency overflow and overland flow routing for data centers. Learn how civil engineers design resilient sites to protect mission-critical facilities from extreme storm events and system f
Defining Exceedance Scenarios for Mission-Critical Facilities
The first step in designing a reliable overflow system is to define the potential failure scenarios. An exceedance event is not limited to a storm that is statistically larger than the system was designed for. A civil engineer must also account for operational failures. Key scenarios include a storm event that surpasses the design frequency (e.g., a 500-year storm overwhelming a 100-year system) and, critically, the blockage of a primary drainage component. A single clogged inlet or a collapsed pipe can render a sophisticated underground system useless, forcing all runoff to the surface. For data centers, the analysis must be rigorous. We use advanced hydraulic modeling to simulate these conditions, evaluating the potential water surface elevations across the site during a complete system failure analysis. This modeling helps identify vulnerabilities and informs the grading and routing needed to contain and direct floodwaters. Understanding the risks associated with both inlet blockage and extreme weather is fundamental to protecting the facility’s operational continuity.
Core Principles of Overland Flow Path Design
Comparison of Overflow Scenarios and Design Responses
| Scenario | Potential Impact on Data Center | Primary Design Mitigation | Emergency Overflow Strategy |
|---|---|---|---|
| Localized Inlet Clogging | Ponding on pavement; potential for water against building doors or vents. | Sufficient number of inlets; regular maintenance plan. | Site grading directs localized ponding to secondary inlets or overland swales away from the building. |
| Main Conveyance Pipe Blockage | Widespread surface flooding upstream of the blockage; potential to inundate equipment yards. | Redundant pipe networks; accessible cleanouts for maintenance. | A defined overland channel is graded to mimic the pipe's path, carrying flow on the surface to the detention pond. |
| Design Storm Exceedance (e.g., 500-year storm) | Entire primary system at or over capacity; widespread sheet flow across the site. | Designing the primary system for a high-frequency storm (e.g., 100-year). | A comprehensive network of overland flow paths and a properly sized emergency spillway contain and convey all excess flow. |
| Downstream System Failure (Off-site) | Water backs up onto the site from an overwhelmed municipal or regional system. | Coordination with the authority having jurisdiction; site grading to elevate critical facilities. | Site grading and berms are designed to isolate the site from off-site flooding to the greatest extent feasible. |
| Emergency Spillway Activation | High-velocity flow exiting the stormwater pond. | Adequate pond volume and freeboard. | The spillway and downstream channel are armored for erosion control and direct flow safely to the property line or a public right-of-way. |

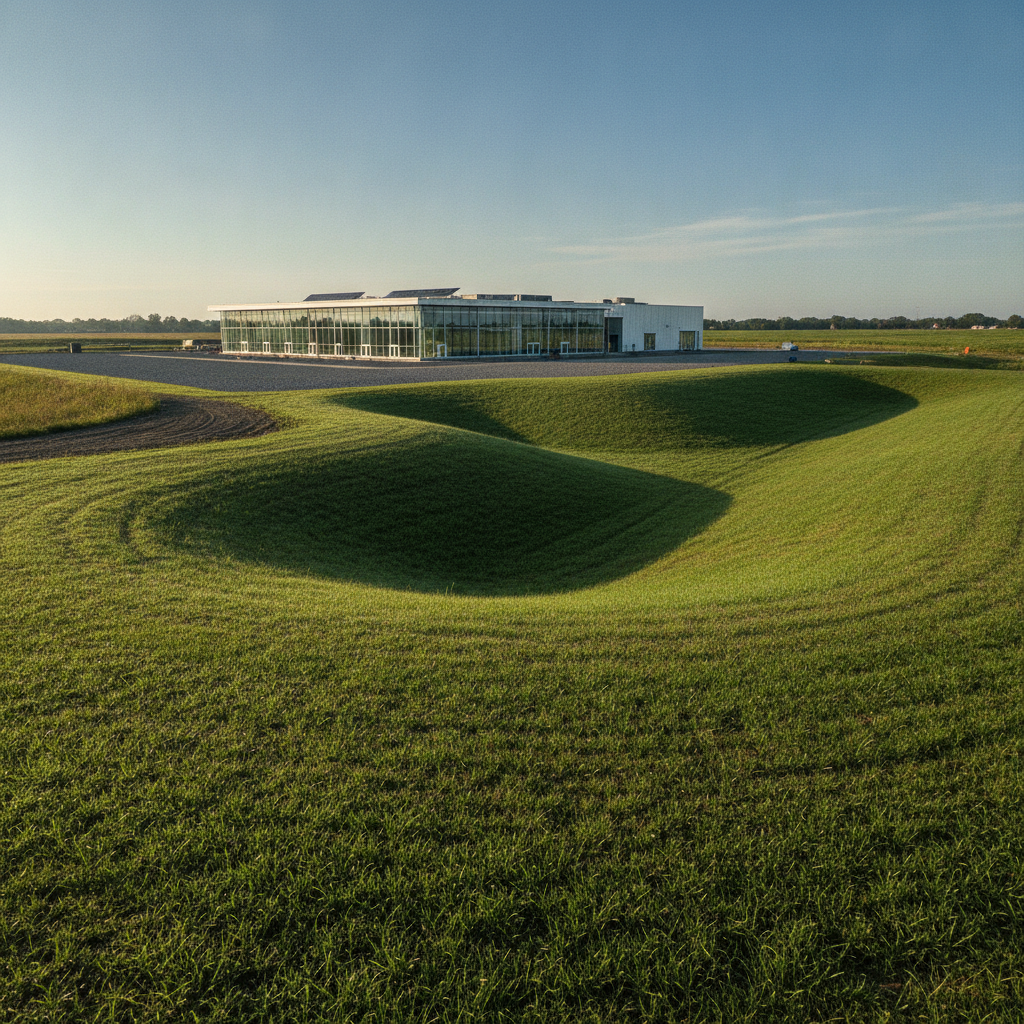

Once potential failure points are identified, the core of the work begins: designing safe, predictable overland flow paths. The primary tool for this is meticulous site grading. The goal is to create subtle but effective swales, channels, and graded slopes that capture surface flow and direct it away from the building foundation, electrical yards, and fuel storage areas. This process involves a detailed topographic analysis to ensure that the emergency routes have positive drainage and sufficient capacity without creating excessive velocities that could cause erosion. These routes must be carefully integrated into the overall site plan design, often serving dual purposes as maintenance access corridors or landscape features. However, their primary function must never be compromised. Design standards for stormwater management and emergency overflow systems vary by jurisdiction, and it is crucial for the project team to confirm all applicable requirements with the local, state, regional, and federal authorities that hold review authority over the site. This ensures the final civil engineering plans meet all regulatory standards for flood protection and public safety.
Protecting Building Perimeters and Critical Equipment Yards
The most vulnerable areas of a data center are its entry points and outdoor equipment zones. The civil engineering design must create a localized defense system around the building perimeter. This starts with establishing a sufficient finished floor elevation (FFE), providing a buffer of vertical clearance above anticipated flood levels. Beyond that, grading is used to slope the ground away from all sides of the building foundation. In areas like loading docks, generator yards, and near sensitive ventilation louvers, more robust measures are needed. These can include strategically placed protective berms, high-capacity trench drains, and raised concrete curbs. The design must ensure that any water approaching these critical areas is intercepted and redirected into the designated overland flow path. This level of detail prevents water from infiltrating the building or damaging expensive, long-lead-time equipment essential for the data center’s operation.
Integrating Emergency Spillways into Stormwater Ponds
Many large-scale sites use detention or retention ponds to manage stormwater runoff. These ponds are a key part of the primary drainage system, but they too can be overwhelmed. An emergency spillway is a critical safety feature for any stormwater pond, acting as a controlled overflow point. It is typically a broad, armored weir set at an elevation just above the pond’s maximum design water level but below the top of the surrounding berm. When the pond exceeds its capacity, water flows over the spillway into a pre-designed, stabilized channel that connects to the site’s overall overland flow route. The design of the spillway and its downstream channel is critical; it must handle high-velocity flows without failing due to erosion control issues. Proper stabilization, often using turf reinforcement mats or articulated concrete blocks, ensures the spillway remains intact during an extreme event, protecting the integrity of the pond berm and preventing a catastrophic failure.
Verifying Flow Routes with Advanced Grading and Hydraulic Analysis
A design on paper is only a concept. To ensure an emergency overflow system will perform as intended, it must be verified with sophisticated analytical tools. Civil engineers use software capable of 2D hydraulic modeling to simulate how water will flow across the entire site surface during an exceedance event. This analysis provides a detailed map of flood depths and velocities, confirming that the designed overland paths have enough capacity and that water stays away from critical structures. This verification step is essential for refining the grading plan verification before construction begins. The results of the model are used to fine-tune elevations, swale dimensions, and curb heights, ensuring the system is robust. These validated models become a key part of the construction documents and provide the owner with a high degree of confidence in the site’s resilience. The analysis also helps demonstrate compliance with regulatory requirements during the permitting process.
Our Process for Designing Resilient Data Center Sites
At RSP Engineers, our approach to mission-critical site design is proactive and comprehensive. We begin with a thorough risk assessment, identifying all potential sources of flooding, both on-site and off-site. Our process involves close collaboration with the client, architects, and MEP engineers to ensure our civil engineering design is fully integrated with the facility’s operational needs. We perform detailed hydraulic and hydrologic modeling to test the site against multiple failure scenarios. This allows us to design and verify a multi-layered defense system, from the primary storm drains to the emergency overland flow routes. We then navigate the complex agency review process, preparing clear and defensible permit submittals that demonstrate the resilience and safety of the design to the authority having jurisdiction.
Common Issues in Emergency Overflow Design
Even with careful planning, several common issues can compromise an emergency overflow system. One major challenge is failing to account for off-site drainage from adjacent properties, which can introduce unexpected volumes of water. Another is creating conflicts between the overland flow path and critical utility coordination corridors for power, data, and water. Phased construction can also present problems, where an interim phase of development inadvertently blocks a future overflow route. Finally, inadequate stabilization or erosion control in spillways and channels can lead to their failure during the very event they were designed to handle. Addressing these potential pitfalls requires experienced oversight and a holistic view of the entire land development lifecycle.
Partner with RSP Engineers for Mission-Critical Site Design
Protecting a multi-million dollar data center from flooding requires more than just standard drainage design. It demands a forward-thinking, risk-based approach to civil engineering. The team at RSP Engineers has the expertise to deliver resilient site engineering services for the most demanding mission-critical projects. We specialize in advanced stormwater management, detailed hydraulic modeling, and navigating the complexities of land development and permitting. Let us help you build a site that is prepared for the unexpected.
Conclusion: Building Resilience into Your Infrastructure
In the world of data centers, resilience is the ultimate goal. An intelligently designed emergency overflow system is a non-negotiable component of achieving that resilience. By planning for events that exceed the capacity of primary infrastructure, owners and developers can safeguard their assets and ensure operational continuity. This requires a deep understanding of hydrology, meticulous drainage design, and a commitment to robust site development principles. Investing in a comprehensive overflow strategy is a direct investment in the long-term viability and success of your mission-critical facility.
FAQs
-
A primary storm drain system consists of inlets, underground pipes, and ponds designed to manage runoff from a specific, high-frequency design storm (e. g. , a 25-year or 100-year event). An emergency overflow route is a planned, surface-level path designed to safely convey water when the primary system is blocked or a storm exceeds its capacity, protecting buildings and critical infrastructure from flooding.
-
The required finished floor elevation (FFE) depends on several factors, including the water surface elevation calculated in hydraulic models for various failure scenarios and any minimum freeboard requirements set by the local building code or the authority having jurisdiction. Typically, for mission-critical facilities, a conservative elevation of two feet or more above the modeled 100-year or 500-year flood level is a common target.
-
Yes, this is a common practice in efficient site plan design. Overland flow paths, which are often broad, gently sloped grassy swales, can be designed to double as maintenance access roads or perimeter security patrol routes. However, the design must ensure that any surfacing material (like gravel or turf block) does not impede the hydraulic capacity of the route or create an erosion risk.
