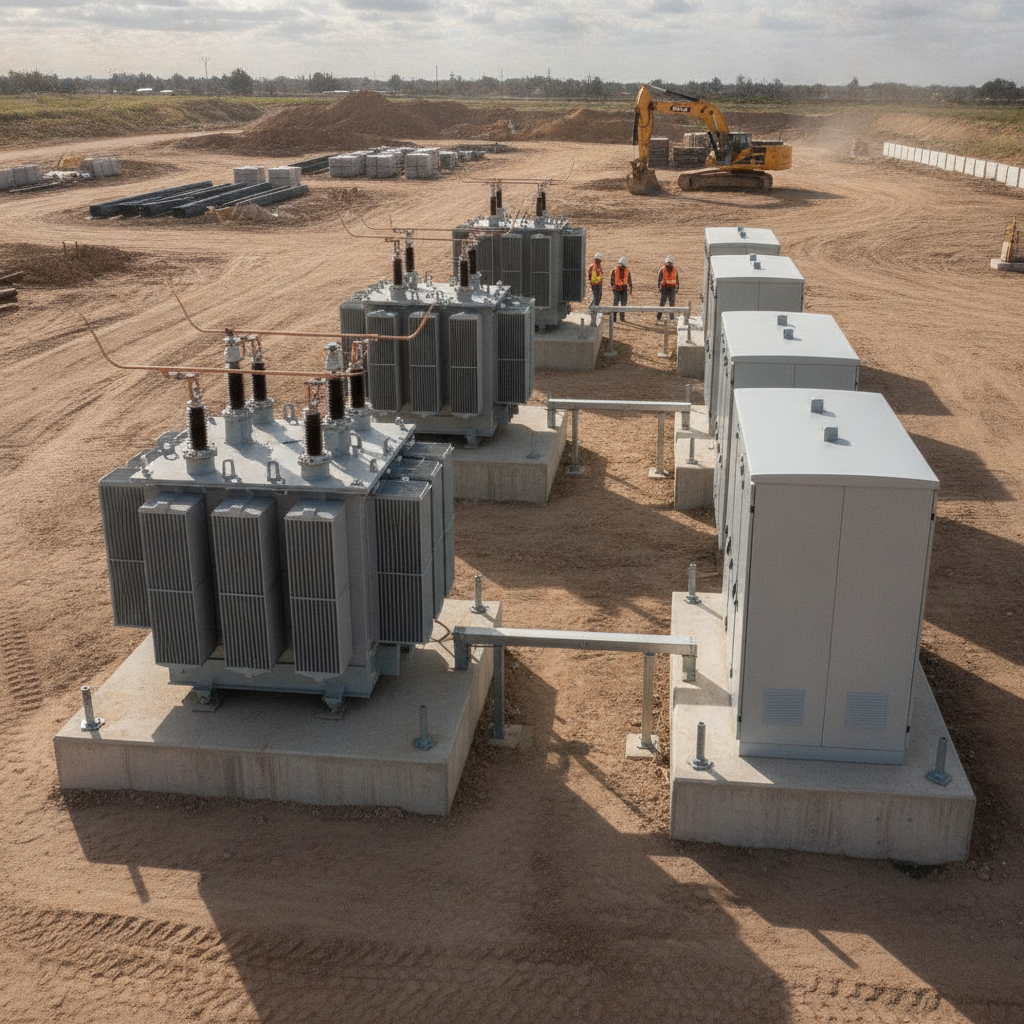

Elevating Critical Data Center Equipment Above Flood Levels
A civil engineering guide to elevating critical data center equipment like transformers, generators, and switchgear above flood levels. Learn about design, permitting, and construction for mission-cri
Establishing the Design Flood Elevation (DFE)
The first and most critical step is determining the target elevation for all equipment. This benchmark is known as the Design Flood Elevation (DFE). The process begins with analyzing the Federal Emergency Management Agency (FEMA) Flood Insurance Rate Maps (FIRMs), which delineate the Special Flood Hazard Area (SFHA) and provide the Base Flood Elevation (BFE)—the elevation to which floodwater is anticipated to rise during a 1%-annual-chance flood event. However, simply building to the BFE is rarely sufficient for critical infrastructure. Most local and regional authorities require the addition of ‘freeboard,’ a safety factor of extra elevation above the BFE. Freeboard accounts for uncertainties in flood modeling, wave action, and future environmental changes. For critical facilities like data centers, a conservative freeboard of two to four feet or more is common. Permitting requirements for floodplain management and freeboard standards vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A thorough civil engineering analysis will also consider other sources of flooding, such as localized intense rainfall, to establish a robust DFE that provides maximum protection.
Structural Design of Elevated Pads and Platforms
Comparison of Equipment Elevation Strategies
| Strategy | Key Design Considerations | Typical Applications | Relative Cost / Complexity |
|---|---|---|---|
| Monolithic Concrete Pad | Requires significant fill material; large footprint; integrates well with site grading. | Low to moderate elevation needs (1-3 feet); sites with stable soils. | Moderate / Low |
| Poured-in-Place Concrete Pier & Platform | Foundation design is critical (geotechnical); allows water to flow underneath; less fill required. | Moderate to high elevation needs (3-8+ feet); areas with poor soils requiring deep foundations. | High / High |
| Precast Concrete Platform | Faster on-site construction; requires heavy crane for installation; consistent quality control. | Standardized equipment layouts; projects with accelerated schedules. | High / Moderate |
| Structural Steel Platform | Lightweight compared to concrete; requires robust corrosion protection; flexible design. | High elevation needs; retrofitting existing sites; areas with significant seismic considerations. | Moderate / High |
| Building Integration (Rooftop) | Utilizes building structure; removes equipment from all ground-level flood risk; requires significant structural capacity. | Urban or space-constrained sites; new construction where building is designed for the load. | Very High / Very High |
Once the DFE is established, the next phase is the structural design of the platforms that will support heavy and sensitive equipment. These structures are typically cast-in-place concrete pads or platforms supported by concrete piers or structural steel frames. The design must account for a variety of loads, including the immense dead load of transformers and generators, live loads from maintenance personnel and equipment, and environmental loads like wind and seismic forces. The foundation design is paramount and is directly informed by a site-specific Geotechnical soil report. A detailed Geotechnical Engineering investigation, often including a Soil boring test, determines the soil’s bearing capacity, potential for settlement, and groundwater levels. This data dictates whether shallow foundations (like spread footings) are adequate or if deep foundations (such as piles or caissons) are required to provide stable support. The structural engineer must work closely with the Geotechnical engineer to ensure the platform and its foundation can perform without failure for the life of the facility, preventing any movement that could damage the equipment or its utility connections.
Coordinating Equipment Elevation with Site Grading and Drainage
Elevating equipment pads cannot happen in a vacuum. The design must be fully integrated with the overall site plan design, particularly the site grading and stormwater management system. The goal is to create a holistic defense against flooding. The surrounding yard should be graded to direct surface water away from the building and the elevated equipment pads, channeling it toward engineered swales, catch basins, and detention or retention ponds. This comprehensive drainage design reduces the volume and velocity of water that ever reaches the critical infrastructure. This coordination ensures that even during an extreme storm event that exceeds the capacity of the primary drainage system, the elevated pads remain isolated from rising water. The access roads and pathways around the equipment must also be considered, ensuring they are graded to remain passable for maintenance vehicles. Effective integration of grading and elevation is a hallmark of sound site engineering services and is fundamental to a resilient data center design.
Utility and Conduit Entry Design for Elevated Equipment
An elevated platform is only as effective as its driest connection point. A primary vulnerability is the entry of power and data conduits. If conduits are routed underground and then turn up into the bottom of a generator or transformer, they can act as a direct pipeline for floodwater. The proper design approach is to route conduits above ground on elevated racks or to have them emerge from the ground well away from the platform and then rise vertically before entering the equipment from the side or top, well above the DFE. All conduit penetrations into the equipment must be meticulously sealed with waterproof, high-performance sealants and fittings. This requires close utility coordination between the civil, structural, and electrical engineering teams from the earliest stages of design. Neglecting these details can render the entire elevation strategy useless, making robust and redundant sealing a critical component of the overall permitting and construction plan.
Ensuring Maintenance and Crane Access to Elevated Systems
Critical equipment requires regular maintenance and eventual replacement. Elevating a multi-ton transformer several feet off the ground creates significant logistical challenges that must be addressed in the design phase. The design must include permanent, safe access for personnel, typically via integrated stairs or ramps that meet occupational safety and, where required, ADA compliance standards. These access structures must be as resilient to flooding as the equipment pads themselves. Furthermore, the design must account for heavy equipment access, particularly for cranes needed to lift and replace major components. This involves designating and designing a structurally sufficient ‘crane pad’ or laydown area adjacent to the elevated platform. The ground in this area must be stabilized and graded to support the immense weight and outrigger loads of a mobile crane. This foresight into the facility’s long-term operational needs is a key part of comprehensive construction administration and planning.
Permitting and Regulatory Compliance for Floodplain Development
Any construction within a designated Special Flood Hazard Area (SFHA) requires a floodplain development permit from the local authority having jurisdiction. The permit submittals must demonstrate full compliance with all local and federal floodplain management regulations. This typically includes providing detailed site plans, grading plans, structural drawings for the elevated platforms, and elevation certificates prepared by a licensed surveyor or Professional Engineer. The agency review process can be rigorous, and reviewers will scrutinize the proposed DFE, the freeboard calculations, and the impact of the project on flood storage capacity. In some cases, compensatory storage calculations may be required to offset any floodplain volume displaced by the new structures. Navigating this regulatory landscape requires deep expertise in environmental permitting and a proactive approach to engaging with regulators early in the design process.
RSP Engineers’ Approach to Flood-Resilient Site Design
At RSP Engineers, our process is built on a foundation of proactive risk mitigation and integrated design. We approach the challenge of elevating critical equipment with a multi-step, collaborative methodology: Comprehensive Flood Risk Assessment: We go beyond the base FEMA maps, analyzing local hydrologic and hydraulic studies, historical data, and future climate projections to recommend a conservative and defensible Design Flood Elevation. Integrated Site Plan Design: Our Civil engineers work in concert with geotechnical, structural, and electrical teams to create a unified Site plan design. This ensures that grading, drainage, foundations, and utility routing all contribute to a single, resilient strategy. Rigorous Permitting and Agency Navigation: We manage the entire permitting process, from initial meetings with the local floodplain administrator to securing final approvals. Our experience with agency review cycles across the country helps streamline this critical path. Detailed Construction Documentation: We produce clear, unambiguous construction drawings and specifications that detail every aspect of the design, from concrete reinforcement to conduit sealing, minimizing errors in the field. Construction Administration Support: We provide robust Construction Management Services, including site inspections, submittal reviews, and as-built verification to ensure the final product is built in strict accordance with the resilient design.
Common Challenges in Elevating Critical Equipment
Even with a solid plan, project teams can encounter several common pitfalls. A primary issue is an inadequate Geotechnical investigation, which can lead to foundation settlement and costly rework. Another challenge is failing to fully coordinate utility routing early in the design, resulting in conduit penetrations that compromise the flood barrier. Teams may also underestimate the complexity of providing safe and practical maintenance and crane access, leading to operational headaches long after construction is complete. Finally, a reactive approach to permitting can cause significant project delays, highlighting the need for experienced engineers who can anticipate regulatory hurdles.
Partner with RSP Engineers for Mission-Critical Site Development
Protecting your data center from flood risk requires more than just a good design; it requires a forward-thinking engineering partner who understands the complexities of site development for mission-critical facilities. The team at RSP Engineers has the nationwide experience to guide your project from initial flood risk analysis through final construction. We provide the expert site engineering services, permitting strategies, and utility coordination necessary to deliver a resilient, compliant, and operationally sound facility. Don’t leave your critical infrastructure vulnerable. Contact us today to discuss how we can elevate your project’s resilience.
Conclusion: Building Resilience from the Ground Up
In the world of data centers, resilience is paramount. Elevating critical exterior equipment is a fundamental and non-negotiable aspect of modern, flood-resistant design. This strategy, however, is a complex undertaking that relies on the successful integration of floodplain management principles, robust structural and Geotechnical Engineering, and a comprehensive civil engineering site plan. By prioritizing these considerations from day one, developers can safeguard their assets, protect their investments, and ensure the continuous operation that their clients demand.
FAQs
-
Freeboard is a safety factor, an additional height requirement above the calculated Base Flood Elevation (BFE). For a critical facility like a data center, it provides a buffer against flooding that is worse than modeled, such as from wave action or future increases in flood levels. It is a key element of resilient floodplain management.
-
A Geotechnical soil report is essential. It provides data on soil strength, composition, and stability. This information determines the type of foundation (shallow or deep) required to support the immense weight of the equipment and its platform without settling or shifting, ensuring the long-term structural integrity of the installation.
-
Development in a regulatory floodway is highly restricted and often prohibited. A floodway is the channel of a river or stream that must be kept open to carry deep, fast-moving water. Placing any obstruction, including elevated platforms, typically requires a complex engineering analysis to show ‘no-rise’ in flood levels, a difficult standard to meet. This path involves extensive and high-risk permitting.
