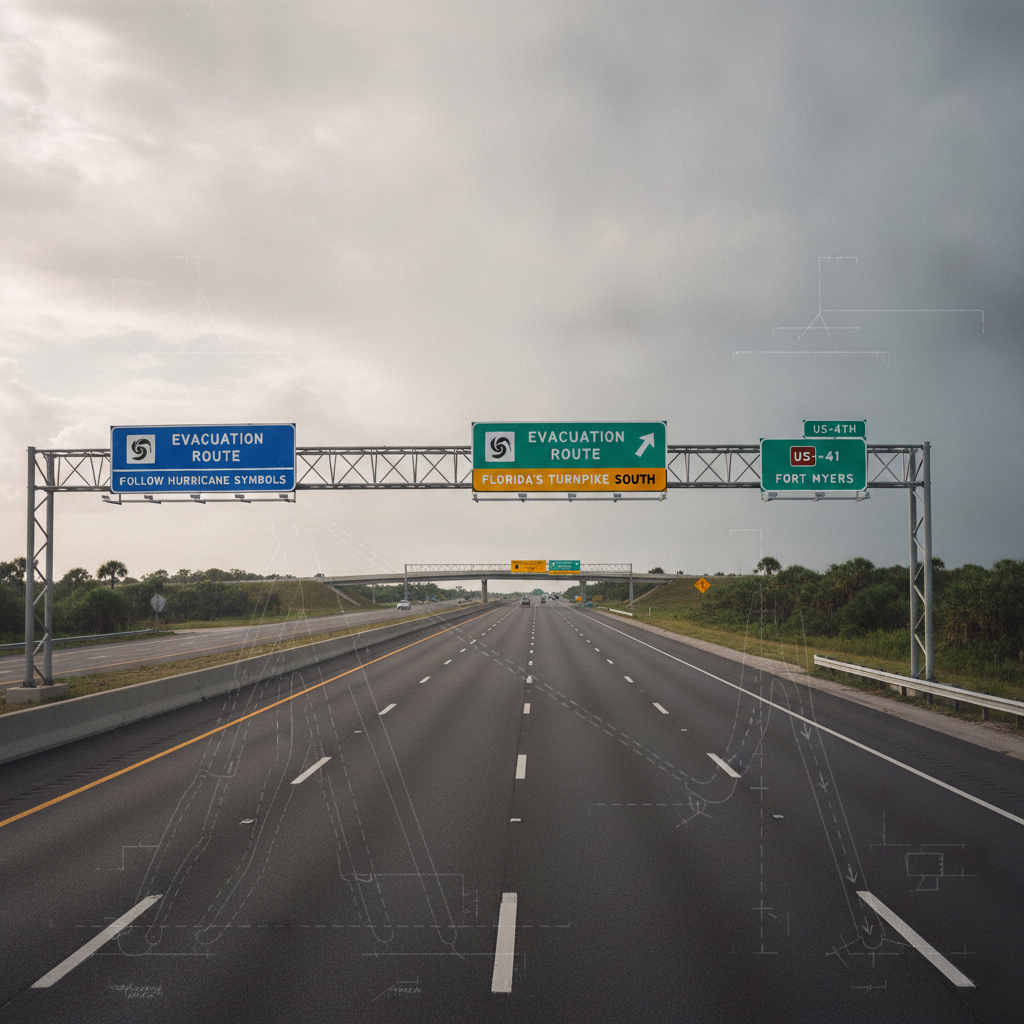

Designing for Florida’s Hurricane Evacuation Routes: A Civil Engineering Perspective
A deep dive into the civil engineering principles for designing and improving Florida’s hurricane evacuation routes, covering roadway capacity, stormwater management, and permitting.
Core Principles of Evacuation Route Engineering
The fundamental goal of evacuation route engineering is to maximize vehicle throughput while minimizing failure points. This is achieved through a focus on resilience, capacity, and redundancy. Unlike typical roadway projects, the design parameters are dictated by extreme, short-duration events rather than daily peak traffic. Key principles include ensuring the structural integrity of the roadway and its components, maintaining accessibility during severe weather, and facilitating efficient traffic capacity analysis under duress. A critical component is planning for specialized traffic management strategies like contraflow operations, where inbound lanes are reversed to increase outbound capacity. This requires specific geometric designs at interchanges and median openings. Furthermore, the entire corridor must be viewed as a system. This involves close coordination with the Florida Division of Emergency Management (FDEM), the Florida Department of Transportation (FDOT), and local agencies to ensure that the resilient infrastructure design aligns with regional emergency plans and response protocols.
Roadway Capacity and Geometric Design Standards
Evacuation Route Design Feature Comparison
| Feature | Standard Roadway Design Guideline | Enhanced Evacuation Route Design Guideline |
|---|---|---|
| Shoulder Width & Use | Standard 8-10 ft for vehicle recovery and maintenance access. | Wider 10-12 ft paved shoulders to stage emergency vehicles, manage contraflow, and accommodate disabled vehicles without blocking traffic. |
| Drainage Capacity | Designed for a 25-year or 50-year storm event, focusing on preventing hydroplaning. | Designed for a 100-year or greater storm event, with a primary focus on preventing roadway overtopping and ensuring rapid recovery. |
| Traffic Signal Power | Standard grid power connection. | Grid power with uninterruptible power supply (UPS) battery backup and/or generator hookups to ensure operation during outages. |
| Signage Standards | Standard MUTCD size and retroreflectivity. | Oversized, high-intensity prismatic retroreflective sheeting with clear “EVACUATION ROUTE” markers and wind-resistant mountings. |
| Bridge Freeboard | Standard navigational and hydraulic clearance over normal water levels. | Increased freeboard calculated based on projected storm surge elevation plus wave action to prevent inundation. |
| Intersection LOS | Designed to maintain LOS C or D during daily peak hours. | Modeled for mass egress scenarios, often accepting LOS E or F to maximize vehicle throughput and prevent gridlock. |
Maximizing the number of vehicles that can safely use a route is a primary concern. This involves more than just adding lanes; it requires a detailed Level of Service (LOS) analysis tailored to evacuation conditions, where lower LOS (more congestion) might be acceptable to achieve higher overall throughput. The geometric design must adhere to strict FDOT design standards, but often with enhancements. This includes wider shoulders to accommodate disabled vehicles or stage emergency responders without blocking a travel lane. Intersection design is another critical factor. Traffic signals on evacuation routes must be equipped with battery backups and manual overrides. In some cases, roundabout designs may be considered to keep traffic flowing during power outages, though their capacity under heavy, one-directional flow must be carefully modeled. The effectiveness of the route also depends heavily on clear, unambiguous signage. This means oversized, highly reflective signs that are securely mounted to withstand hurricane-force winds, clearly marking the corridor as a designated evacuation route and guiding drivers effectively.
Stormwater Management and Drainage for Route Resiliency
In Florida, the greatest threat to an evacuation route’s functionality is often not wind, but water. Roadway flooding can render a corridor impassable, trapping residents. Therefore, an aggressive approach to stormwater management is non-negotiable. The drainage design for these routes must handle rainfall intensities that far exceed typical standards, often accounting for the compound effects of storm surge and saturated ground conditions. This involves sophisticated hydrologic and hydraulic (H&H) modeling to predict water flow and elevation. Practical design elements include oversized culverts, high-capacity curb inlets, and extensive roadside swales or linear detention systems designed to convey massive volumes of water away from the travel lanes. The outfall systems must be designed to function even with elevated tailwater conditions from swollen rivers or coastal surge. The ultimate goal of the drainage engineer near me is to ensure the pavement surface remains clear and the road base remains stable, preventing both immediate flooding and long-term structural damage.
Utility Coordination and Infrastructure Hardening
Evacuation routes are vital corridors for more than just traffic; they host critical power, water, and communication lines. A comprehensive utility coordination process is essential during the design phase to avoid conflicts and ensure that utility infrastructure does not compromise the roadway’s integrity. More importantly, the infrastructure within the right-of-way must be hardened to withstand hurricane conditions. This includes specifying wind-resistant traffic signal poles, streetlights, and overhead sign structures. A key strategy for resilience is the undergrounding of utilities, which protects them from wind and debris, though this comes with significant cost and complex permitting challenges. For existing overhead lines, utility owners may be required to implement hardening programs, such as replacing wooden poles with concrete or steel. The failure of a single utility pole can block multiple lanes, so proactive collaboration between the roadway designer and utility companies is a critical part of the site development process for any route improvement project.
Pavement Design and Structural Integrity Considerations
The road itself must be able to bear the load of heavy, slow-moving, bumper-to-bumper traffic on a potentially saturated subgrade. The pavement design for an evacuation route must be robust, often requiring a thicker cross-section and a more stabilized base than a standard highway. This process begins with a thorough geotechnical analysis to understand the underlying soil conditions, which is especially important in Florida’s variable terrain of sand, clay, and limestone. Bridge integrity is paramount. Bridges are natural bottlenecks and points of failure. They must be designed to withstand extreme wind loads and hydraulic forces from floodwaters. A critical part of bridge design is scour analysis, which evaluates the potential for floodwaters to erode the soil around foundations, leading to collapse. Furthermore, bridge deck elevations must be set well above projected storm surge levels, including an allowance for wave action, to ensure these vital links remain passable throughout an evacuation event.
Permitting and Agency Coordination with FDOT and Water Management Districts
Upgrading or constructing a designated evacuation route involves a complex and rigorous permitting process. Because these are typically state roads, the Florida Department of Transportation (FDOT) is the primary reviewing agency, but coordination doesn’t stop there. Projects almost always require an Environmental Resource Permit (ERP) from the regional Water Management District (e.g., SFWMD, SWFWMD, SJRWMD), which governs stormwater and environmental impacts. There may also be involvement from the Florida Department of Environmental Protection (FDEP) and federal agencies like the U.S. Army Corps of Engineers for projects impacting wetlands or navigable waters. The technical submittals for these projects are extensive, requiring detailed construction plans, drainage calculations, traffic studies, and environmental assessments. Early and frequent agency review is crucial to identify potential issues and streamline the approval process. A successful project hinges on the engineer’s ability to navigate these overlapping jurisdictions and demonstrate that the design meets all safety, environmental, and Florida Building Code requirements for resilient infrastructure.
RSP Engineers’ Approach to Resilient Transportation Design
At RSP Engineers, our process for designing resilient transportation corridors begins with a comprehensive corridor analysis and data collection phase. We evaluate existing infrastructure, identify vulnerabilities, and model future demands under emergency conditions. Our team performs detailed traffic capacity analysis and advanced hydrologic and hydraulic modeling to develop a design that is both efficient and robust. We understand that successful projects require more than just sound engineering; they require skillful navigation of the regulatory landscape. Our extensive experience with FDOT permitting and coordinating with Florida’s Water Management Districts allows us to anticipate agency concerns and prepare thorough, defensible permit submittals. During construction, our team provides diligent construction administration and inspection services to ensure that the design’s resilience features are built exactly as specified. We partner with public agencies to deliver projects that protect communities and enhance public safety.
Common Challenges in Evacuation Route Projects
Even with a clear objective, designing and upgrading evacuation routes presents significant challenges. Right-of-way acquisition is often a primary hurdle, as widening roads or adding large stormwater ponds requires purchasing private property, which can be a lengthy and costly process. Funding is another major constraint; these projects are expensive, and securing grants or state appropriations requires a compelling, data-driven justification. Retrofitting existing urban corridors is particularly complex, as designers must work around established utilities, buildings, and access points. Balancing enhanced safety and capacity with environmental protection is a constant negotiation. For example, expanding a roadway through a sensitive wetland area requires extensive environmental mitigation and permitting. Finally, managing public expectations and minimizing disruption during construction is critical. A clear communication plan and well-phased Maintenance of Traffic (MOT) plan are essential for project success and community support. Unexpected geotechnical conditions, such as sinkholes or unsuitable soils, can also emerge, requiring rapid redesign and engineering solutions.
Partner with RSP Engineers for Your Florida Infrastructure Projects
Designing and permitting resilient infrastructure in Florida requires deep technical expertise and a thorough understanding of the state’s unique environmental and regulatory challenges. Whether you are a public agency planning a major corridor improvement or a developer whose project impacts a state road, RSP Engineers can provide the necessary guidance. Our team specializes in roadway engineering, advanced stormwater management, and navigating complex FDOT permitting. Contact us today to discuss how our site engineering services can help ensure your project is a success.
Building a More Resilient Florida, One Route at a Time
Effective hurricane evacuation routes are a product of deliberate, forward-thinking design. They represent a critical investment in public safety, built on sound civil engineering principles. By integrating robust roadway design, aggressive stormwater management strategies, and hardened infrastructure, we can create corridors that function under the most demanding conditions. Proactive engineering and meticulous attention to detail during the permitting and construction phases are essential to building a more resilient Florida that is better prepared for future storms.
FAQs
-
An evacuation route is officially designated through a collaborative process involving a county’s Emergency Operations Center (EOC), the Florida Division of Emergency Management (FDEM), and the Florida Department of Transportation (FDOT). The designation is based on traffic modeling, roadway capacity, connectivity to safer inland areas, and the structural resilience of the corridor.
-
Contraflow, or lane reversal, is the practice of using all lanes of a divided highway for outbound traffic. From a civil engineering standpoint, this requires the design of permanent, safe median crossovers, robust Maintenance of Traffic (MOT) plans, and pre-planned staging areas for law enforcement and traffic control personnel. The geometric design of ramps and interchanges must be analyzed to ensure they can accommodate these reversed traffic patterns without creating new bottlenecks.
-
Yes, absolutely. While a standard highway might be designed for a 25-year storm, an evacuation route’s drainage design is often analyzed for a 100-year or even a 500-year storm event. The engineering goal shifts from merely preventing pavement damage to ensuring the roadway remains passable for emergency vehicles and the public during an extreme weather event.
