Designing Data Center Roads to Remain Accessible During Floods
Learn how civil engineering ensures data center access roads remain passable during floods through elevated design, hydraulic modeling, and redundant routes. A guide for mission-critical facilities.
Establishing the Design Flood Elevation for Access Routes
The foundation of a flood-resilient road is setting an appropriate target elevation. This process begins with a thorough analysis of regulatory flood maps, primarily the Flood Insurance Rate Maps (FIRMs) published by the Federal Emergency Management Agency (FEMA). These maps delineate the 100-year floodplain, an area with a 1% annual chance of flooding, and establish the Base Flood Elevation (BFE), which is the anticipated water surface elevation during that event. For critical infrastructure like data centers, engineers often design to a higher standard, such as the 500-year flood event (0.2% annual chance), to provide an additional margin of safety. From this baseline, the project team establishes a design flood elevation (DFE) for the access road. This typically includes the BFE plus a specific amount of ‘freeboard’—an additional vertical distance for safety. Freeboard accounts for uncertainties in hydraulic modeling, wave action, and future changes in land use or climate that could increase flood levels. Permitting requirements for freeboard and floodplain development vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A comprehensive civil engineering approach ensures these regulatory minimums are met or exceeded to protect the asset.
Hydraulic Modeling for Roadway Crossings and Overtopping
Comparison of Flood Resiliency Strategies for Access Roads
| Strategy | Primary Engineering Goal | Key Design Considerations | Potential Challenges |
|---|---|---|---|
| Elevated Roadway Profile | Keep driving surface above the Design Flood Elevation (DFE). | Freeboard requirements, earthwork balance, embankment stability, ADA compliance on slopes. | High fill material costs, increased floodplain fill, visual impact. |
| Redundant Access Points | Eliminate a single point of failure for site access. | Connection to separate public roads, site circulation, security integration, utility conflicts. | Land acquisition costs, increased impervious surface, complex permitting. |
| Oversized Culvert Design | Pass design flood flows with minimal upstream impact (headwater). | Hydraulic modeling (HEC-RAS), scour protection, structural capacity, environmental permitting for stream impacts. | Higher construction cost, potential wetland impacts, agency review times. |
| Armored Low-Water Crossing | Allow controlled overtopping during extreme events without road failure. | Allowable depth/velocity, erosion-resistant materials (e.g., articulated concrete), vehicle safety. | Limited use during peak flooding, higher maintenance, potential for debris accumulation. |
| Pavement Underdrain System | Maintain subgrade stability during prolonged soil saturation. | Geotechnical analysis, pipe sizing and location, filter fabric specification, positive outfall. | Installation cost, long-term risk of clogging if not properly designed and maintained. |
Simply elevating a road is not enough; engineers must understand how it will interact with floodwaters. A raised road can act as a dam, obstructing flood flows and potentially worsening upstream flooding, which can lead to significant permitting challenges and liability. To prevent this, detailed hydraulic modeling is performed using software like HEC-RAS to simulate water flow across the site. This analysis helps engineers properly size culverts, bridges, and other drainage structures to pass the design flood event without adverse impacts. The modeling also evaluates scenarios where the road itself may be overtopped by extreme floodwaters. For mission-critical access, engineers establish criteria for allowable overtopping depth and flow velocity that still permit passage by specific vehicle types, particularly high-clearance emergency vehicles and fuel tankers. If overtopping is unavoidable in an extreme event, the road surface and embankments must be designed with appropriate armoring, such as articulated concrete blocks or turf reinforcement mats, to prevent erosion and structural failure. This ensures that even if temporarily inundated, the road remains intact and usable once floodwaters recede, which is crucial for emergency vehicle access.
Redundant Access Strategies for Site Resilience
A core principle of resilient design is avoiding a single point of failure. For data centers, this extends to site access. Whenever feasible, the site plan should incorporate redundant ingress and egress points. Ideally, these access points connect to separate public road networks, mitigating the risk that a single flooded public artery cuts off the entire facility. For example, a primary entrance might connect to a major arterial road, while a secondary service entrance connects to a different collector road on another side of the property. This strategy requires careful planning during the initial phases of site development and close utility coordination to ensure that underground infrastructure does not conflict with multiple access drives. The design of each access point must be independently evaluated for flood resilience. This redundancy provides operational flexibility, allowing staff and deliveries to reroute if one entrance becomes compromised. It is a critical investment that significantly enhances the overall robustness of the facility against widespread disruptive events.
Structural Design of Culverts and Low-Water Crossings

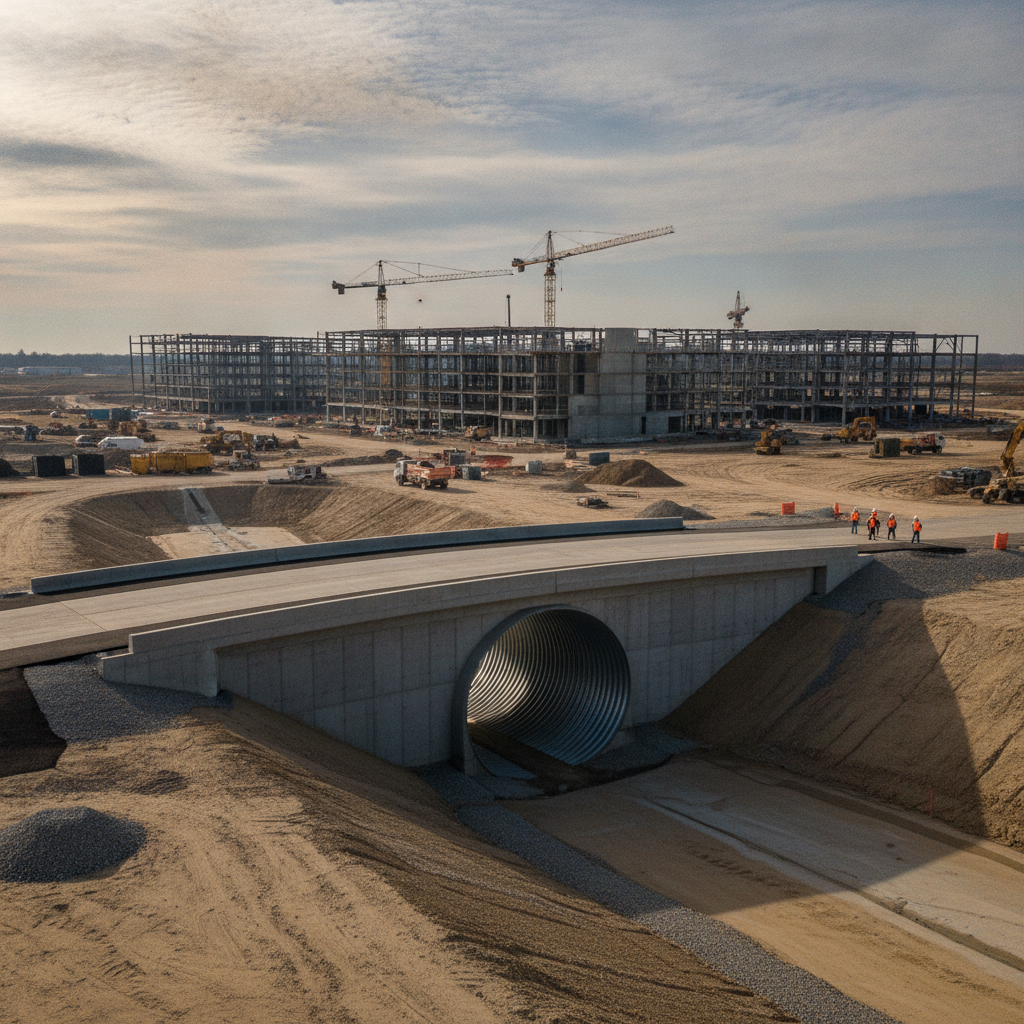

Anywhere an access road crosses a ditch, swale, or stream, a hydraulic structure is required. The design of these crossings is critical to road stability and proper flood conveyance. Culverts—typically reinforced concrete pipes or boxes—must be sized to handle the design storm’s peak flow without causing excessive headwater elevation (the depth of water pooled on the upstream side). If culverts are undersized, they can create a choke point, increasing upstream flood levels and putting the road embankment at risk of overtopping and failure. A thorough scour analysis is also essential to ensure that high-velocity flows do not erode the soil around and under the culvert, which could undermine its structural integrity. This often involves designing protective measures like concrete headwalls, wingwalls, and downstream energy dissipators. The overall drainage design for the site must integrate seamlessly with these crossings, ensuring that stormwater is conveyed efficiently and safely through the property during a major storm event. Proper engineering of these seemingly minor components is fundamental to the long-term performance of the access road.
Coordinating with Off-Site Public Infrastructure
A perfectly designed, elevated on-site road is of little use if the public roads leading to it are underwater. Therefore, a critical part of the due diligence and design process involves analyzing the flood risk of the surrounding public right-of-way. This includes reviewing municipal and regional flood studies, coordinating with the local transportation department, and consulting with the local floodplain administrator to understand known problem areas and planned public infrastructure improvements. In some cases, the project’s scope may need to include off-site improvements to ensure a continuous, resilient access corridor from a major, flood-protected highway to the data center gate. This could involve partnering with the local jurisdiction to elevate a segment of a public road or improve a public drainage system. Navigating the permitting and approval process for such improvements requires experienced engineering consultants who can effectively communicate the project’s needs and benefits to public agencies.
Pavement Design and Geotechnical Considerations for Saturated Conditions
Flood resilience extends below the road surface. Prolonged soil saturation during a flood event can severely weaken the subgrade materials that support the pavement, leading to rutting, cracking, and premature failure, especially under heavy truck traffic. The pavement section—the layers of asphalt, base, and sub-base material—must be designed to withstand these weakened conditions. This often means specifying a thicker base layer, using chemically stabilized subgrade, or incorporating geotextile fabrics for added support. A thorough geotechnical investigation is paramount for roads in flood-prone areas. Soil borings and laboratory testing inform the engineer about the soil’s properties and its likely behavior when saturated. To manage groundwater and infiltration, the design may include underdrain systems. These perforated pipes are installed alongside and beneath the road to collect and carry away excess water, helping to keep the subgrade stable and extending the life of the pavement. This integrated approach ensures the road remains structurally sound both during and after a flood.
Our Process for Engineering Flood-Resilient Access
At RSP Engineers, our approach to designing resilient data center infrastructure is systematic and proactive. Our team of professional Civil engineers follows a proven process to identify risks and engineer effective solutions: Comprehensive Flood Risk Assessment: We begin by analyzing all available data, including FEMA FIRMs, local and regional flood studies, historical high-water marks, and climate projections, to define the true flood risk to the site and its access. Integrated Hydrologic & Hydraulic (H&H) Modeling: We develop detailed H&H models to simulate existing and proposed conditions, ensuring our design for roads, culverts, and stormwater systems effectively manages floodwaters without adverse off-site impacts. Iterative Site Layout and Grading Design: We work collaboratively with the client and architectural team to optimize the site layout, balancing the need for elevated access with earthwork costs, operational efficiency, and environmental constraints. Proactive Agency Coordination and Permitting: We engage early and often with local, state, and federal regulatory agencies to navigate the complex permitting landscape for work in or near floodplains, securing approvals in a timely manner. Construction Administration Support: We remain engaged during construction to review submittals, respond to contractor inquiries, and perform site observations to ensure the final product is built in strict accordance with the design plans and specifications.
Common Challenges in Flood-Resilient Road Design
Even with careful planning, designing access roads in flood-prone environments presents unique challenges. A primary issue is balancing the significant cost of importing fill material to elevate roadways against the long-term risk of flood-related business interruption. Another common hurdle is navigating the complex and often lengthy permitting process for any work that impacts a regulatory floodplain, which can require detailed impact analyses and mitigation plans. Integrating the on-site drainage design with an already strained regional stormwater system can also be difficult, requiring innovative solutions and negotiation with local authorities. Finally, unexpected geotechnical conditions, such as encountering weak, compressible soils in low-lying areas, can necessitate costly soil improvement measures to ensure long-term road stability.
Partner with RSP Engineers for Mission-Critical Site Design
Ensuring uninterrupted access to your data center is not an option—it’s a requirement. The complexities of floodplain regulations, hydraulic modeling, and resilient infrastructure design demand an experienced engineering partner. The team at RSP Engineers has a nationwide track record of delivering robust site plan design for mission-critical facilities. We specialize in navigating the challenges of stormwater management, floodplain permitting, and utility infrastructure to create sites that are secure and accessible. From initial due diligence and conceptual design to final agency review and construction, we provide the expertise needed to protect your investment. Contact us today to discuss how we can secure your next project.
Conclusion: Securing Uptime with Resilient Infrastructure
In the world of data centers, resilience is the ultimate measure of success. While much focus is placed on internal systems, the physical access to the site is a foundational element of operational continuity. A road that is impassable due to flooding can neutralize millions of dollars in on-site redundancy. Through strategic civil engineering, detailed hydraulic analysis, and a proactive approach to site development, access roads can be designed to withstand major flood events. Investing in a resilient access strategy, guided by expert drainage design and permitting knowledge, is a critical step in safeguarding a data center’s uptime and its long-term viability.
FAQs
-
A 100-year flood has a 1% chance of being equaled or exceeded in any given year, while a 500-year flood has a 0. 2% chance. These terms describe statistical probability, not a schedule. For mission-critical infrastructure, designing to the more conservative 500-year standard provides a higher level of protection against more extreme, less frequent storm events.
-
Freeboard requirements are set by the local authority having jurisdiction and can range from 1 to 3 feet or more above the Base Flood Elevation (BFE). For critical facilities like data centers, engineers often recommend exceeding the local minimum to provide an enhanced margin of safety, but the final decision depends on a project-specific risk assessment.
-
Yes, but it requires a rigorous permitting process and specialized engineering design. Development within a floodplain typically requires compensatory storage to offset the volume of fill placed, and all critical infrastructure must be elevated above the design flood elevation. Development within a designated ‘floodway’ is even more restrictive and often prohibited.
