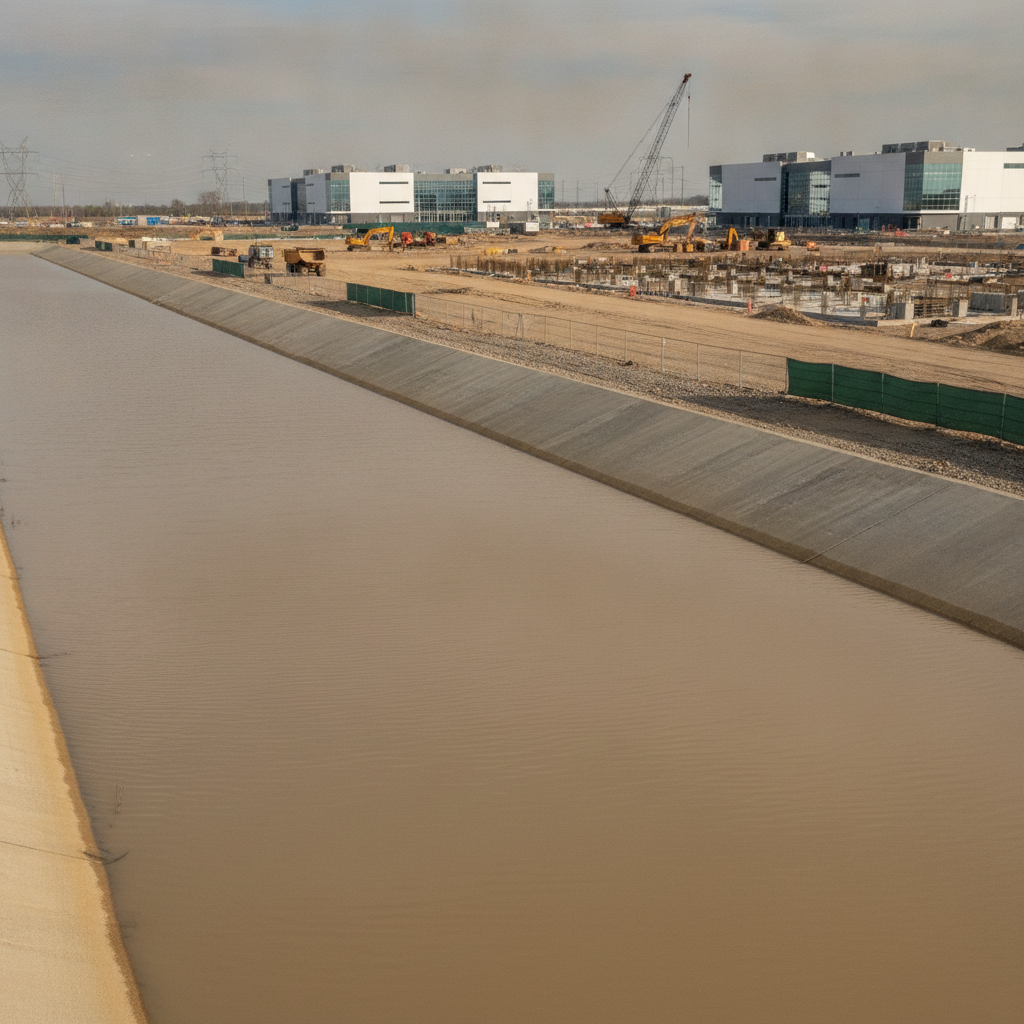

Data Center Resilience Against Compound Flood Events
Explore civil engineering strategies for protecting data centers from compound flood events. Learn about advanced modeling, redundant drainage, and site hardening for mission-critical facilities.
Defining Compound Flood Risk for Mission-Critical Infrastructure
A compound flood event occurs when two or more flood drivers combine to produce an impact that is more severe than the sum of its parts. Unlike a single-mechanism event, such as an intense thunderstorm, a compound event creates a cascade of failures. For example, heavy rainfall (pluvial flooding) may occur during a period of high river levels (fluvial flooding) or a coastal storm surge. The elevated receiving water body, or tailwater, prevents the site’s stormwater management system from discharging, causing rainfall to back up and inundate the property. Other common scenarios include back-to-back storms that leave the ground saturated, drastically reducing infiltration and increasing runoff volumes from subsequent rainfall. This is a critical consideration in Geotechnical Engineering, as soil saturation affects not only drainage but also structural stability. Standard risk assessments based on FEMA Flood Insurance Rate Maps (FIRMs) are an essential starting point but often do not capture the nuanced risk of coincident events. A comprehensive site engineering services approach must therefore model the interplay between rainfall, groundwater, river stages, and coastal conditions to define a true worst-case scenario for a data center.
Advanced Hydrologic and Hydraulic (H&H) Modeling
Compound Flood Mitigation Strategy Comparison
| Strategy | Primary Function | Key Engineering Consideration | Resilience Benefit |
|---|---|---|---|
| Elevated Building & Equipment Pads | Keep critical assets vertically above floodwaters. | Establish a conservative Design Flood Elevation (DFE) with ample freeboard. | Provides passive, fail-safe protection for the most valuable infrastructure. |
| Perimeter Floodwalls or Berms | Create a defensible barrier to keep floodwaters off the main site. | Geotechnical stability, seepage analysis, and interior drainage/pumping. | Protects the entire operational footprint, including parking and loading areas. |
| Redundant Pumped Drainage | Actively discharge on-site stormwater when gravity outfalls are blocked. | Pump capacity, power redundancy, and automated controls. | Ensures site dewatering capabilities during high tailwater conditions. |
| Anti-Backflow Valves | Prevent external floodwater from entering the site's pipe network. | Proper sizing, material selection, and regular maintenance access. | Isolates the internal drainage system from external flood pressure. |
| Oversized On-Site Detention | Store excess runoff on-site until it can be safely discharged. | Volume calculation for compound events; multi-stage outlet structures. | Reduces peak discharge rates and provides a buffer during prolonged events. |
To accurately predict a site’s performance during a compound event, engineers must move beyond static, single-variable analysis. Advanced Hydrologic and Hydraulic (H&H) modeling uses dynamic, integrated software to simulate complex water interactions. This often involves 2D modeling, which treats the site as a grid and calculates the depth and velocity of water in each cell over time. This approach provides a detailed visual of how floodwaters will move across the property, identifying low points, potential breaches in defenses, and areas of high velocity that could cause scour and erosion. The accuracy of these models depends entirely on the quality of their inputs, particularly the boundary conditions. These are the external factors that influence the model, such as peak river discharge rates, tidal cycle data from NOAA, and rainfall distribution patterns. A key part of the permitting process is demonstrating to reviewers that these boundary conditions are appropriately conservative. Design storm criteria and modeling requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. This rigorous modeling forms the basis for all subsequent resilience strategies, from setting building elevations to designing drainage infrastructure.
Site Grading and Elevation Strategies
The most fundamental flood protection strategy is elevation. By establishing a conservative Design Flood Elevation (DFE), a data center can be physically raised above the predicted floodwaters. This DFE should account for the compound flood modeling results and include a significant factor of safety, or freeboard. For mission-critical facilities, a freeboard of two to four feet or more above the modeled peak water surface is common. This elevation applies not just to the data hall’s finished floor but to all critical infrastructure: generator pads, fuel tanks, electrical switchgear, and cooling system components. In some cases, elevating the entire site with fill is not feasible or cost-effective. An alternative is to create a defensible perimeter using engineered berms, levees, or floodwalls. This approach requires careful Geotechnical Engineering analysis to ensure the stability of these structures under hydrostatic pressure and to prevent seepage. The Site plan design must also incorporate interior drainage systems, including pump stations, to manage rainfall that falls within the protected perimeter, as it will be unable to drain via gravity during an external flood event.
Redundant Stormwater Management and Drainage Design
A data center’s stormwater management system must be designed with redundancy in mind, assuming the primary discharge path could be compromised by high tailwater. A typical resilient drainage design includes a primary gravity-powered pipe network sized to handle common storm events. However, it must be supplemented by a secondary system capable of operating when the outfall is submerged. This often takes the form of a pumped system. When external water levels rise, anti-backflow valves or sluice gates on the gravity outfalls close automatically, preventing floodwaters from entering the site’s pipe network. On-site stormwater is then directed to a wet well or detention pond, where a duplex or triplex pump station actively discharges it into the elevated receiving water body. This ensures the site can continue to dewater itself even when surrounded by floodwaters. The design of these systems requires careful utility coordination to ensure reliable primary and backup power for the pumps during an emergency.
Utility and Infrastructure Hardening
A data center’s resilience is only as strong as its weakest link, which often includes its utility connections. Underground power and fiber optic conduits must be designed to be watertight and protected from scour. Manholes and vaults should be sealed or elevated to prevent floodwater intrusion, which can damage sensitive equipment and require lengthy repairs. A thorough utility coordination plan is essential to ensure that all incoming services are routed and protected according to the site’s overall flood resilience strategy. The vulnerability of off-site infrastructure is also a major concern. The electrical substation feeding the site or the fiber optic lines running to it may be located in a more vulnerable area. The project’s due diligence phase should include an assessment of these external dependencies. Where possible, securing redundant utility feeds from geographically separate sources is a key strategy. Similarly, on-site fuel storage for backup generators must be located within the protected, elevated zone, with supply lines hardened against physical damage from floodwaters and debris.
Our Process: A Phased Approach to Compound Flood Resilience
At RSP Engineers, our approach to designing resilient mission-critical sites is systematic and proactive. We integrate flood risk mitigation into every phase of the project, from initial concept to final construction, ensuring a cohesive and defensible design. Our process is managed by a dedicated Professional Engineer to ensure quality and accountability. Phase 1: Due Diligence & Risk Assessment: We begin by analyzing all available data, including FEMA maps, NOAA tidal data, historical flood records, and local climate projections. We perform initial H&H modeling to identify potential compound flood risks and establish preliminary design criteria before significant capital is invested. Phase 2: Integrated Site Plan Design: Our Civil Engineers work collaboratively with the architectural, MEP, and structural teams. This ensures that flood resilience strategies like elevated finished floors, perimeter defenses, and redundant drainage are seamlessly integrated into the overall facility layout and operations plan. Phase 3: Permitting & Agency Review: We prepare comprehensive drainage reports and modeling exhibits that clearly justify our design approach. By proactively addressing the concerns of the authority having jurisdiction with robust technical data, we streamline the agency review process and secure timely approvals. Phase 4: Construction Administration: We provide rigorous Construction Management Services to verify that all flood mitigation features are built exactly as designed. This includes overseeing the installation of watertight utility conduits, testing pump stations, and certifying the compaction and elevation of earthen berms.
Common Issues and Design Challenges
Designing for compound flood events presents several common challenges. A primary issue is underestimating tailwater conditions, which leads to undersized drainage systems that fail when needed most. Another challenge is value engineering, where critical but seemingly redundant components like backup pumps or extra freeboard are eliminated to cut costs, unknowingly compromising the entire resilience strategy. The permitting process can also be complex, as the design may exceed standard local code requirements, necessitating detailed justifications and negotiations with regulatory agencies. Finally, project teams can develop tunnel vision, focusing solely on protecting the site itself while ignoring critical off-site vulnerabilities like a single flood-prone access road or an exposed utility substation.
Partner with RSP Engineers for Mission-Critical Site Development
Protecting your mission-critical facility from complex flood risks requires a specialized engineering partner. The team at RSP Engineers has the expertise to navigate the complexities of compound flood analysis, resilient site development, and regulatory permitting. We provide comprehensive site engineering services, from initial due diligence and advanced H&H modeling to detailed stormwater management design and construction oversight. Contact us to ensure your project is built for uninterrupted uptime, no matter the weather.
Conclusion: Proactive Design for Uninterrupted Uptime
As weather patterns become more unpredictable, engineering for compound flood events is no longer an optional upgrade; it is a core requirement for data center viability. A proactive approach that integrates advanced modeling, robust drainage design, and hardened infrastructure is the only way to truly mitigate risk. By investing in a comprehensive civil engineering strategy upfront, developers and operators can protect their assets, ensure continuous operation, and deliver the reliability their clients demand. This level of resilience is the foundation of modern site development for the digital age.
FAQs
-
A 100-year storm refers to a rainfall event of a certain intensity and duration with a 1% chance of occurring in any given year. A compound flood event is a scenario where that rainfall might occur simultaneously with another flood-producing condition, like a high tide or a swollen river, creating a much more severe flooding impact than the rainfall alone would have caused. The risk is based on the coincidence of multiple factors, not a single statistical event.
-
There is no single answer, as the appropriate amount of freeboard depends on the specific risks identified in the H&H modeling, the criticality of the facility, and client risk tolerance. While local codes may require one or two feet, mission-critical facilities often use a higher standard of three, four, or even more feet above the modeled Design Flood Elevation to account for model uncertainties and wave action.
-
Absolutely. FEMA maps primarily delineate risk from fluvial (river) and coastal sources. A site designated as Zone X (low-to-moderate risk) can still be highly vulnerable to pluvial (rainfall-driven) flooding, especially if its drainage design is inadequate or if its discharge point becomes blocked by high water in a nearby channel—a classic compound flood scenario.
