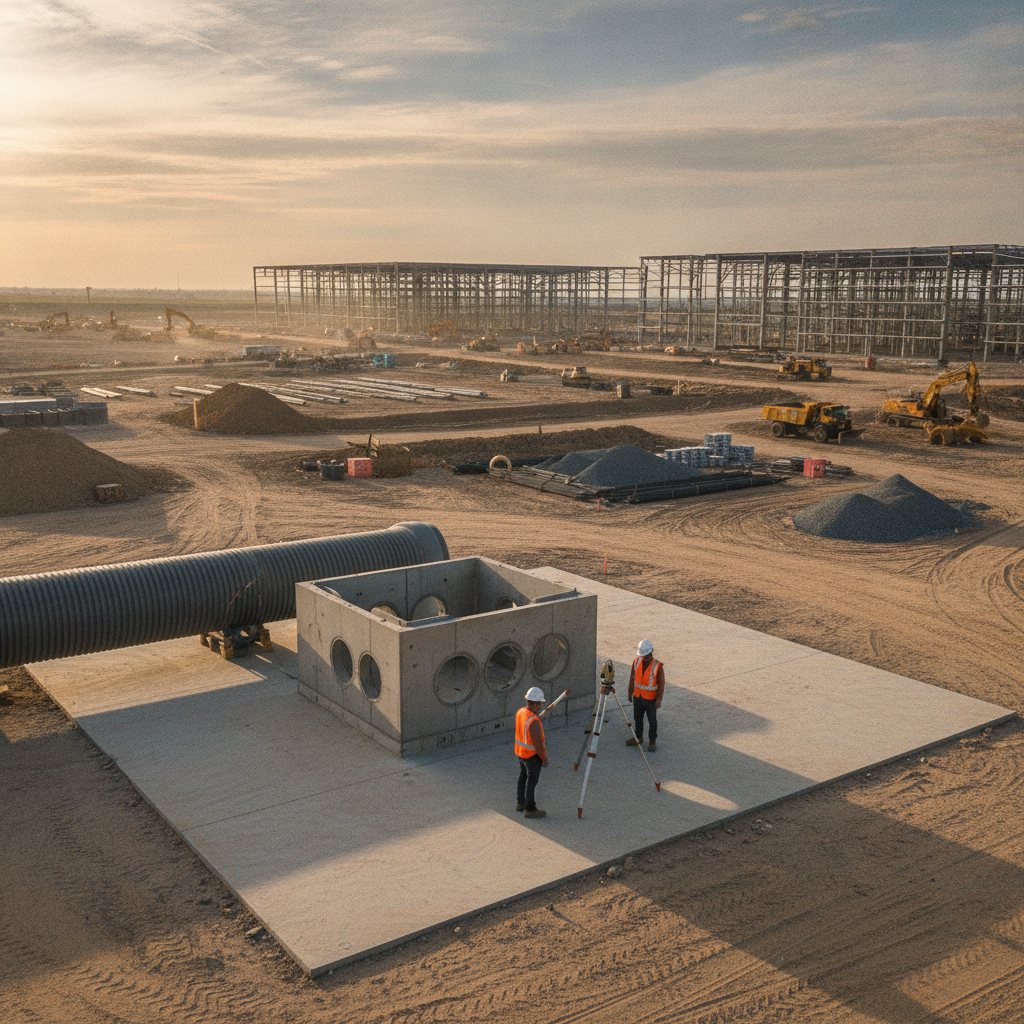

Data Center Hydraulic Analysis for Site Development
A technical guide to hydraulic analysis for data center development. Learn about HGL/EGL, pipe capacity, surcharge, and permitting from expert civil engineers.
Understanding Hydraulic Grade Line (HGL) and Energy Grade Line (EGL)
At the core of any advanced stormwater analysis are two concepts: the Hydraulic Grade Line (HGL) and the Energy Grade Line (EGL). The HGL represents the elevation to which water will rise in a piezometer or a vertical standpipe connected to the pipe. In simpler terms, it’s the pressure head plus the elevation head. The EGL is higher than the HGL, accounting for the velocity head—the energy associated with the water’s movement. The difference between the EGL and HGL is the kinetic energy of the flow. For data center projects, modeling the HGL is paramount. If the HGL rises above the crown of the pipe, the system is considered to be under pressure or surcharged. If it reaches the ground surface or, worse, the finished floor elevation of a building, catastrophic flooding can occur. Our drainage design process meticulously models the HGL for various storm events (e.g., 25-year, 100-year) to ensure that all conveyance systems operate predictably and that critical elevations are protected with adequate freeboard. This predictive modeling is a cornerstone of resilient stormwater management and is scrutinized by every permitting agency.
Pipe Capacity Analysis: Full-Flow vs. Open-Channel Conditions
Hydraulic Analysis Parameters and Their Design Implications
| Parameter | Description | Impact on Data Center Site Design |
|---|---|---|
| Hydraulic Grade Line (HGL) | The elevation to which water will rise in the stormwater system under pressure. | Directly dictates the minimum required rim elevations for manholes and inlets to prevent surface flooding. Influences finished floor elevation requirements. |
| Tailwater Elevation | The water surface elevation of the downstream receiving body (e.g., canal, pond, municipal system). | High tailwater reduces the system's discharge capacity, requiring larger pipes, steeper slopes, or on-site pumping to overcome backwater effects. |
| Pipe Surcharge | The condition where the pipe is flowing full and the HGL is above the pipe crown. | Dictates the structural integrity requirements for pipes and joints. The analysis ensures surcharge does not cause system failure or surface flooding. |
| Inlet/Outlet Control | The hydraulic condition (either at the pipe entrance or downstream) that limits the flow capacity. | Determines the efficiency of the system. Design may require improved inlet geometry or larger downstream conveyance to optimize flow. |
| Freeboard | The vertical distance between the peak HGL and a critical elevation (e.g., ground, building floor). | A critical design constraint. Insufficient freeboard necessitates redesign, such as raising building pads or upsizing the entire drainage network. |
| Flow Velocity | The speed of water moving through the pipe. | Must be high enough to prevent sediment deposition (self-cleansing) but low enough to prevent pipe scour and erosion, especially at outfalls. |
A common misconception is that a large pipe will always handle a given amount of water. The reality depends on whether the pipe is flowing under open-channel (gravity) or full-flow (pressure) conditions. Open-channel flow occurs when the pipe is partially full, with a free water surface exposed to the atmosphere. Full-flow conditions occur when the pipe is completely full, operating under pressure, which significantly changes its hydraulic behavior. While pipes are often designed for open-channel flow, intense storm events can force them into full-flow conditions, leading to surcharge. Our hydraulic analysis evaluates the system’s performance under both scenarios. We use sophisticated software to model the transition between flow types and identify potential bottlenecks. This pipe capacity analysis informs not just the diameter of the pipes but also their slope, material (which affects friction), and the overall network layout. Ensuring a system can handle pressure flow without allowing the HGL to breach critical elevations is a key objective in our civil engineering design for mission-critical facilities.
Inlet vs. Outlet Control: Governing Factors in Stormwater Conveyance
The capacity of a pipe or culvert is not solely determined by its size. It is often governed by either inlet control or outlet control. Inlet control occurs when the barrel of the pipe can convey more flow than the inlet opening will accept. This condition is typically governed by the geometry of the inlet structure and the headwater depth. Conversely, outlet control occurs when the pipe’s capacity is limited by downstream conditions, such as high tailwater or the friction losses along the length of the pipe barrel. Determining the controlling condition is a critical step in the drainage design. For a data center site, a system that frequently operates under inlet control could cause localized ponding at structures, which may be unacceptable near sensitive equipment or access points. A system governed by outlet control is highly sensitive to downstream water levels, a major concern in interconnected drainage basins. Our analysis evaluates both conditions to create a balanced and predictable stormwater conveyance system that performs reliably during major storm events.
Modeling Tailwater Conditions and Backwater Effects
No site exists in isolation. The performance of a data center’s stormwater system is heavily dependent on the downstream hydraulic conditions, known as tailwater conditions. This is the water surface elevation at the outlet of the drainage system, which could be a pond, a canal, a municipal storm sewer, or a wetland. In low-lying coastal regions, tailwater elevations can be high due to tides, seasonal water table fluctuations, or the stage of a regional water management district canal. High tailwater can create backwater effects, where the downstream water level effectively pushes back on the site’s drainage system, reducing its capacity and raising the HGL upstream. Our hydraulic models incorporate detailed tailwater data, often requiring coordination with agencies like the Water Management Districts or local municipalities. Accurately modeling these backwater effects is essential for obtaining permitting approvals and for designing a system that will not fail due to off-site influences beyond the developer’s direct control.
Surcharge Analysis and Freeboard Requirements for Mission-Critical Infrastructure
Surcharge occurs when a closed drainage system operates under pressure, and the HGL is above the crown of the pipe. While some level of surcharge may be acceptable in a typical commercial design, it is a significant risk for mission-critical infrastructure. A surcharge analysis is performed to quantify the peak water surface elevation within each manhole and inlet during a design storm. The goal is to ensure this elevation remains a safe distance below the ground surface and, most importantly, below the finished floor of the data center. This vertical distance of safety is known as freeboard. Regulatory agencies mandate minimum freeboard requirements, but for data centers, we often recommend a more conservative standard. For example, ensuring the 100-year HGL remains at least one foot below the lowest building entry point or critical equipment pad is a common design target. This rigorous approach to surcharge analysis and freeboard is a non-negotiable aspect of protecting the facility and complying with the Local Building Code.
Translating Hydraulic Analysis into Design: Pipe Sizing and Structure Rims
The ultimate purpose of a hydraulic analysis is to inform the physical design detailed in the construction documents. The results of the HGL modeling directly translate into critical design specifications. For instance, the analysis determines the minimum acceptable pipe sizing and slope required to convey the design storm flow without exceeding HGL limits. If the model shows excessive surcharge, the design team must iterate by increasing pipe diameters, steepening slopes, or rerouting flow paths. Equally important are the structure rim elevations. The rim of every manhole, junction box, and catch basin must be set higher than the calculated peak HGL for that location, with an added factor of safety for freeboard. This prevents stormwater from erupting out of structures and flooding the site. The hydraulic analysis provides the precise data needed by the Professional Engineer to confidently specify these elevations on the final site plan design, ensuring the constructed project matches the resilience proven in the model.
Our Process for Data Center Hydraulic Modeling
At RSP Engineers, our approach to hydraulic analysis for data centers is systematic and rigorous. It begins with comprehensive data collection, including topographic surveys, geotechnical reports, and downstream tailwater criteria from permitting agencies. We then build a detailed hydraulic model of the proposed stormwater management system using industry-standard software. This model is subjected to various design storm simulations as required by local and state regulations. The results are meticulously reviewed to check for pipe velocities, surcharge conditions, and HGL elevations. We use this iterative process to optimize the drainage design, balancing performance, cost, and regulatory compliance to deliver a design that is both efficient and exceptionally resilient.
Common Issues in Data Center Drainage Design
Even with careful planning, several challenges frequently arise. One of the most common is underestimating tailwater conditions, leading to a system with less capacity than designed. Another is dealing with extremely flat sites, making it difficult to achieve adequate pipe slopes for self-cleansing velocities without deep, costly excavations. Furthermore, conflicts with other underground infrastructure, such as extensive electrical and fiber duct banks, create significant utility coordination challenges. Our experience as one of the leading Civil Engineering Firms allows us to anticipate these issues early in the design process, developing proactive solutions that keep the project on schedule and within budget.
Your Partner for Mission-Critical Site Engineering
Developing a data center requires a civil engineering firm near me with specialized expertise in mission-critical infrastructure. At RSP Engineers, we provide the rigorous hydraulic analysis, resilient stormwater management design, and proactive permitting strategy necessary to protect your investment. Our team understands the unique challenges of data center site development, from complex utility coordination to stringent flood protection criteria. We partner with you from due diligence through construction to ensure your facility is built on a foundation of engineering excellence.
Conclusion
A sophisticated hydraulic analysis is not a commodity; it is a critical risk mitigation tool for data center development. By accurately modeling the Hydraulic Grade Line, accounting for complex tailwater conditions, and designing for robust freeboard, we ensure the stormwater system will protect the site against the most extreme weather events. This level of detailed civil engineering provides the certainty and security that mission-critical operators demand, forming the basis of a successful and resilient project. Investing in a thorough hydraulic analysis is a direct investment in the long-term operational integrity of the facility.
FAQs
-
The Energy Grade Line (EGL) represents the total energy of the water, including its velocity. The Hydraulic Grade Line (HGL) represents the pressure and elevation. The EGL is always above the HGL, and the vertical distance between them is the velocity head. In practical terms, engineers design to the HGL because it shows the actual water surface elevation that could cause flooding if it overtops a structure.
-
Florida’s flat topography and interconnected water systems mean that a site’s ability to drain is often controlled by off-site water levels. High tailwater conditions in a receiving canal or wetland can significantly reduce the discharge capacity of the site’s pipes, causing water to back up. For a data center, where any level of flooding is unacceptable, accurately modeling these conditions is essential for a resilient drainage design.
-
When a system surcharges, the pipe is flowing full under pressure. If the pressure is high enough, the HGL can rise to the ground surface, causing water to flood out of manholes or inlets. This can lead to site flooding, equipment damage, and operational downtime. A proper surcharge analysis ensures the HGL remains safely below the ground and critical infrastructure elevations.
