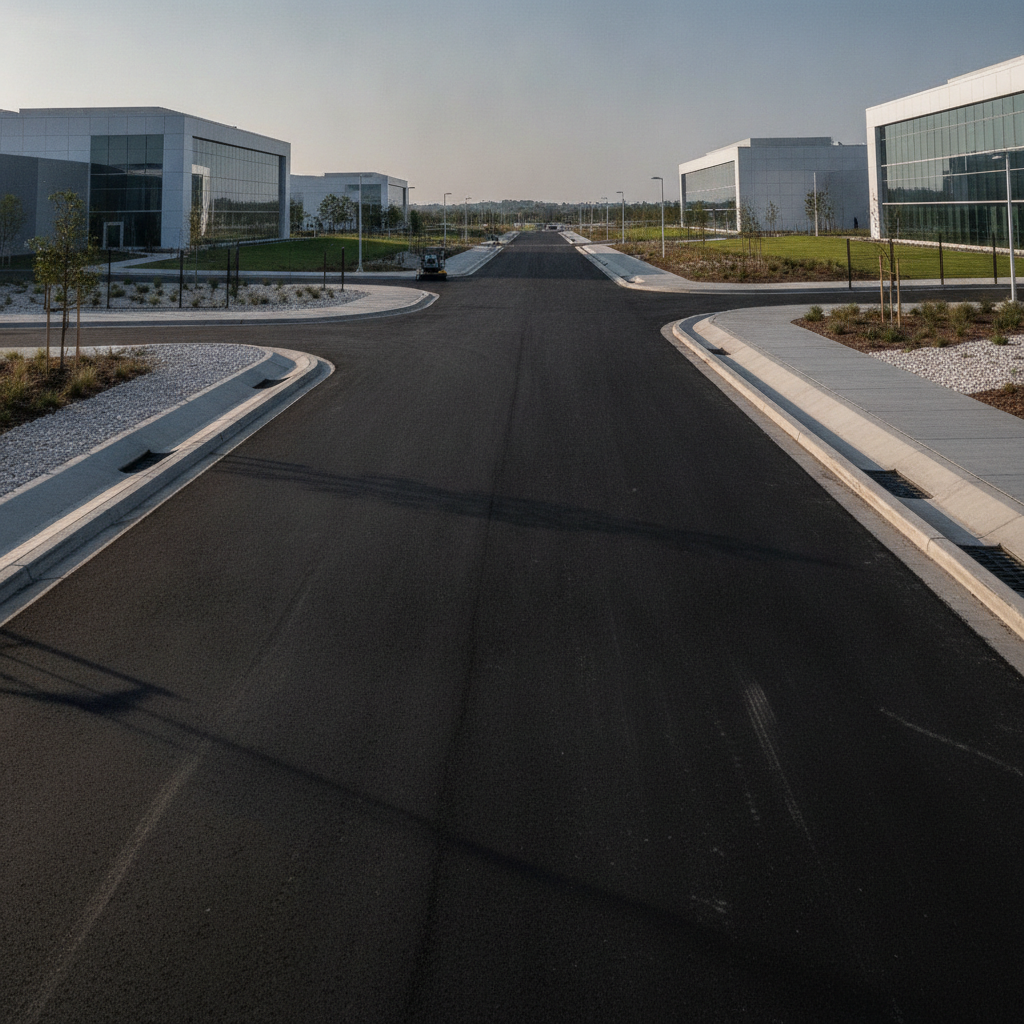

Data Center Flood Routing Through Internal Roadways
Learn how civil engineers use internal roadways as secondary flood routes to protect data centers during extreme storms. A guide to design, modeling, and permitting.
The Role of Secondary Flow Paths in Mission-Critical Site Design
A conventional stormwater management system relies on inlets, pipes, and ponds to collect and manage runoff from common storm events. However, these systems have a finite capacity. During intense, low-frequency rainfall events (such as a 100-year or 500-year storm), the volume of water can exceed what the pipe network can handle. When this occurs, the excess water must go somewhere. Without a planned overland flow path, this water can pond unpredictably, threatening building entrances, loading docks, and critical equipment yards. A secondary flow path is a pre-determined, engineered route for this excess surface flow. For large data center campuses, the internal roadway network provides an ideal framework for these routes. The drainage design intentionally directs major storm runoff into the road right-of-way, using the pavement and curbs as a wide, shallow channel. This strategy is a cornerstone of resilient site development, providing a reliable safety valve that activates automatically when the primary system is at capacity, preventing catastrophic inundation of high-value assets.
Establishing Design Criteria for Roadway Flood Routing
Key Design Parameters for Roadway Flood Routing
| Design Parameter | Conventional Roadway (Access Only) | Dual-Function Roadway (Flood Route) |
|---|---|---|
| Primary Function | Vehicle and pedestrian circulation | Circulation and major storm conveyance |
| Maximum Allowable Flow Depth | Typically limited to curb height (e.g., <6 inches) | Engineered depth based on model (e.g., 12-18 inches), must stay below building FFE |
| Maximum Allowable Velocity | Not a primary design constraint | Limited to non-erosive speeds (e.g., 4-6 ft/s) to protect pavement and subgrade |
| Curbing Strategy | Standard barrier or mountable curbs for drainage capture | Strategically placed barrier curbs for containment and curb cuts for controlled release |
| Grading Design | Designed for positive sheet flow to inlets | Integrated grading to direct large flows into the roadway and away from buildings |
| Emergency Access Requirement | Must remain passable under normal conditions | Must remain passable for emergency vehicles during the design storm event |
Designing a roadway to double as a flood channel requires a precise set of engineering criteria. The goal is to convey water without causing damage or compromising site safety. Key parameters include the maximum allowable depth and velocity of water in the roadway. Depths are typically limited to prevent water from overtopping curbs and reaching building finished floor elevations. Velocities must be controlled to prevent erosion and ensure the roadway remains passable for emergency vehicles. These design standards are critical for maintaining operational integrity during an extreme weather event. These criteria are established based on a project’s specific risk tolerance, client requirements, and the regulations of the governing authorities. Permitting requirements for stormwater management and flood control vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. Factors like maintaining at least one clear emergency access route and protecting sensitive equipment pads are non-negotiable elements of the building code compliance strategy.
Grading and Curb Design for Controlled Conveyance
The effectiveness of a roadway flood route hinges on meticulous grading and curb design. This is where the principles of roadway engineering and hydraulic design merge. The site’s overall grading plan is developed to systematically direct major storm flows toward the designated roadway channels. Roadways are designed with a consistent longitudinal slope to encourage positive flow and prevent ponding, while cross-slopes are used to contain the water within the pavement area. Curbing plays a critical role in this system. Barrier curbs are often used on the high side of the flow path to act as a dam, while the building-side curb height is set to provide adequate freeboard above the design flood elevation. In some areas, mountable curbs or the complete absence of curbs may be used to allow water to enter or exit the roadway channel at specific, controlled locations. This level of detail in the civil engineering plans ensures that the overland flow is predictable and manageable, turning the entire campus into an integrated drainage design system.
Protecting Critical Infrastructure and Building Entrances
The ultimate purpose of routing floodwater through roadways is to protect the data center’s most valuable assets. The entire site development plan is orchestrated to keep water away from building entrances, generator yards, fuel storage areas, and primary electrical switchgear. The finished floor elevation of the data hall is the most critical benchmark, and all grading and flood routing is designed to maintain a safe margin of freeboard below this level. Effective protection requires close utility coordination between the civil engineer, architect, and mechanical/electrical engineers. The location of every exterior equipment pad, utility vault, and building penetration must be reviewed against the projected flood elevations from the hydraulic model. This integrated design approach ensures that even during a major storm event, the facility’s core operations are shielded from water intrusion, safeguarding against costly downtime and equipment damage.
Hydraulic and Hydrologic Modeling of Overland Flow
Verifying the performance of a roadway flood routing system requires sophisticated analysis. Engineers use advanced hydraulic modeling software (such as HEC-RAS 2D, SWMM, or ICPR) to simulate how the site will behave during an extreme storm. These models incorporate rainfall data, often from sources like NOAA Atlas 14, along with the site’s specific topography, pipe network, and surface features. The model creates a dynamic, visual representation of where water will flow, how deep it will get, and how fast it will move. This overland flow analysis is not just a verification tool; it’s a critical design tool. Engineers can test different grading plans, curb configurations, and inlet locations to optimize the system’s performance. The results provide the quantitative data needed to demonstrate compliance to permitting agencies and give the facility owner confidence that the design is robust. The model outputs are a key part of the permit submittals and provide a clear basis for the final civil engineering design.
The RSP Engineers Approach to Resilient Site Design
At RSP Engineers, we approach mission-critical projects with a focus on resilience and operational continuity. Our process for designing effective flood routing systems includes: Comprehensive Site Analysis: We begin by evaluating the site’s topography, existing drainage patterns, and regulatory constraints to identify potential risks and opportunities for an integrated stormwater management system. Integrated Grading and Drainage Design: Our team develops a holistic site plan design where the grading, utility layout, and roadway network work in concert to manage both minor and major storm events effectively. Advanced Hydraulic Modeling: We utilize state-of-the-art 2D modeling software to simulate extreme storm scenarios, validating our design and providing clear, data-driven proof of performance for both clients and regulatory agency review. Proactive Permitting and Agency Coordination: We engage with regulatory agencies early in the process to ensure our design approach aligns with local and state requirements, streamlining the permitting process. Construction Administration Support: We provide oversight during construction to ensure that critical grading elevations and design features are built exactly as specified, guaranteeing the system will function as intended.
Common Challenges in Implementing Roadway Flood Routes
While highly effective, designing roadways as secondary flood paths presents several challenges that require experienced engineering solutions. A primary issue is balancing the specific grading needed for flood control with the strict requirements of ADA compliance for sidewalks and crosswalks. The slopes must be gentle enough for accessibility while still effectively directing water. Another common challenge is coordinating the overland flow path with underground utilities. The design must avoid conflicts between shallow floodwaters and sensitive infrastructure like electrical or fiber optic vaults. Finally, navigating the requirements of different review agencies, such as the local fire department’s access requirements and the water management authority’s flood control criteria, demands careful negotiation and a well-documented design that satisfies all stakeholders.
Partner with RSP Engineers for Mission-Critical Site Development
Protecting your data center investment from environmental threats requires a forward-thinking, resilient design approach. The team at RSP Engineers has the expertise to deliver sophisticated site engineering services, from initial due diligence and master planning to detailed stormwater management design and complex permitting. We specialize in creating robust, reliable site plans for mission-critical facilities across the nation. Contact us today to discuss how we can help ensure your next project is engineered for maximum uptime and resilience.
Conclusion
In an era of increasing weather volatility, relying solely on conventional piped drainage systems is no longer sufficient for protecting high-value data centers. Using internal roadways as engineered secondary flood routes is a powerful civil engineering strategy that adds a critical layer of resilience. This approach requires a deep understanding of hydraulic modeling, integrated site development principles, and meticulous attention to grading and detail. By proactively planning for extreme events, data center owners and developers can safeguard their assets, protect their investments, and ensure the operational continuity that the digital world demands.
FAQs
-
The design storm event depends on the owner’s risk tolerance, corporate standards, and local regulations. For mission-critical facilities, it is common to design the primary pipe system for a 10- or 25-year storm and analyze the secondary overland flow path for a 100-year or even 500-year storm to ensure the site remains operational and protected during truly extreme events.
-
There may be a modest increase in upfront civil engineering design fees and potentially higher earthwork costs to achieve the precise grading required. However, this investment significantly reduces the long-term financial risk associated with flooding, equipment damage, and operational downtime, offering a substantial return on investment for a mission-critical facility.
-
Using pervious pavement on a roadway designated as a major flood route requires careful analysis. While it can help manage smaller, more frequent storms, its infiltration capacity will be quickly overwhelmed during an extreme event. The primary function of the roadway in this context is conveyance, not infiltration. The underlying geotechnical conditions must also be assessed to ensure stability under saturated conditions.
