The Critical Role of Accurate Stormwater Modeling for Data Centers
Data centers are characterized by vast expanses of impervious surfaces, including rooftops and parking lots, which generate significant stormwater runoff. An unmanaged or poorly modeled drainage system poses a direct threat to operational uptime, with potential for catastrophic equipment damage, data loss, and business interruption. Accurate stormwater management is not a luxury; it is a core component of facility resilience and risk management. A precisely calibrated drainage model provides a defensible basis for design decisions and demonstrates due diligence to stakeholders and insurers. It allows engineers to simulate a wide range of storm events with high confidence, identifying potential vulnerabilities in the drainage design before they can be exposed by a real storm. This proactive approach is essential for protecting mission-critical infrastructure and ensuring long-term operational continuity.
Establishing a Baseline: The Initial Design Model
Comparison of Pre- and Post-Calibration Model Parameters
| Parameter | Pre-Calibration Value (Typical Assumption) | Post-Calibration Value (Example Adjustment) | Rationale for Change |
|---|---|---|---|
| Overland Flow Roughness (Manning's n) | 0.15 (short grass) | 0.24 (denser, taller grass) | Field observation showed vegetation was denser and less maintained than assumed in the initial design, slowing down sheet flow. |
| Pond Side Slope Roughness (Manning's n) | 0.035 (uniform grass) | 0.045 (grass with some shrubs/weeds) | As-built pond slopes developed thicker vegetation, increasing hydraulic resistance during filling and drawdown. |
| Infiltration Rate (Curve Number) | 85 (moderately compacted soil) | 89 (highly compacted soil) | Post-construction soil testing and slow pond recovery indicated higher-than-expected compaction from heavy equipment traffic. |
| Control Structure Orifice Coefficient (Cd) | 0.61 (standard sharp-edged orifice) | 0.57 (slightly obstructed) | Observed drawdown times were longer than modeled, suggesting minor debris or imperfect orifice construction was reducing discharge efficiency. |
| Time of Concentration (Tc) | 15 minutes (calculated via TR-55) | 12 minutes (adjusted based on observed hydrograph) | The system responded faster than the initial empirical formula predicted, likely due to highly efficient conveyance in the as-built condition. |
Every drainage analysis begins with the creation of a baseline model based on the proposed site plan design. Civil engineers use specialized software to build a digital representation of the site’s topography, drainage network, and control structures. This initial model is built using standard industry parameters and data sources, forming the basis for initial permitting and construction. Key inputs for the baseline model include detailed topographic surveys, design specifications for pipes, culverts, and ponds, and rainfall data from sources like NOAA Atlas 14. The model’s parameters, such as soil infiltration rates and surface roughness coefficients, are initially selected based on established engineering tables and professional judgment. While this provides a solid starting point for the civil engineering design, it is still a collection of well-informed assumptions that await real-world validation.
Field Data Collection and Monitoring Techniques

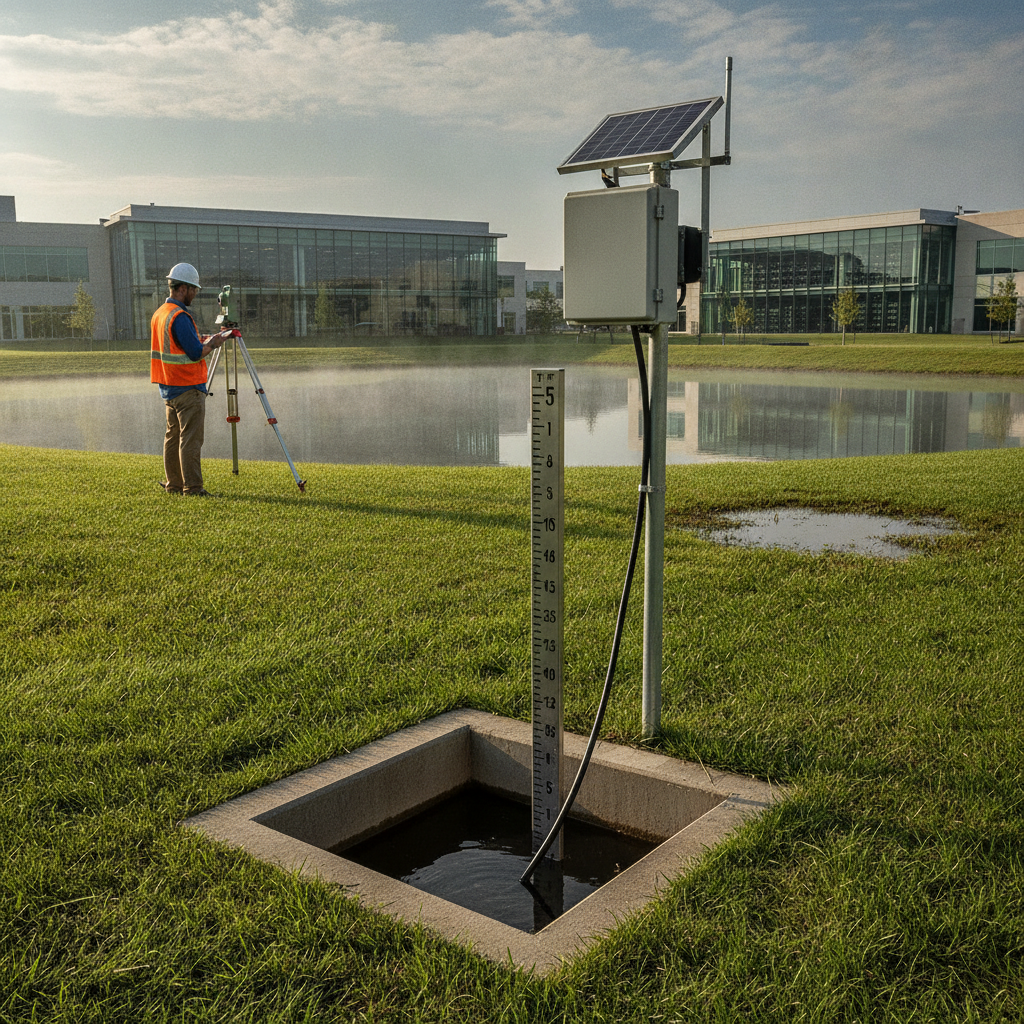

The core of any calibration effort is a robust data collection program. To effectively compare model predictions to reality, engineers must capture how the site actually responds to rainfall. This involves deploying monitoring equipment to record key hydrologic and hydraulic data before, during, and after storm events. Common techniques include installing on-site rain gauges to measure actual rainfall depth and intensity, which is often more accurate than relying on the nearest off-site station. Additionally, stage monitoring equipment, such as pressure transducers or simple staff gauges, is placed in stormwater ponds and key conveyance channels to record water level fluctuations over time. Following significant storm events, engineers conduct site reconnaissance to document and survey high water marks (HWMs), which provide physical evidence of the peak water surface elevations reached throughout the system. This information is invaluable for verifying the model’s peak stage predictions. It is important to note that requirements for installing monitoring equipment and reporting discharge data vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. This diligent approach to field observations ensures that the collected data is both accurate and compliant with any relevant permit compliance regulations.
Comparing Observed Performance Against Model Predictions
With field data in hand, the next step is to perform a direct comparison against the uncalibrated model’s output. Engineers run a simulation in the model using the observed rainfall data from the on-site gauge as the input. The model’s predicted results—such as the peak water elevation in a pond or the flow rate over a weir—are then plotted against the measured data from the field sensors. This model validation process quickly highlights any discrepancies between the theoretical design and actual performance. Often, this comparison reveals differences in the timing of peaks, the maximum water levels reached, or the rate at which a pond drains (drawdown time). A significant variance signals that one or more of the model’s initial assumptions do not accurately represent the as-built conditions. Identifying these differences is the first step in the iterative process of adjusting the model to achieve a closer match, turning a generic hydrologic modeling exercise into a site-specific, calibrated tool.
Key Parameters for Model Calibration and Adjustment
Once discrepancies are identified, engineers begin the meticulous process of adjusting model parameters to align the simulation with the field observations. This is not a matter of arbitrarily changing numbers to force a match; it requires sound engineering judgment to make defensible adjustments. For example, if a pond drains slower in reality than in the model, the discharge coefficient of its control structure orifice may need to be adjusted to reflect minor blockages or a different-than-designed configuration. Commonly adjusted parameters include the Manning’s roughness coefficient, which represents the friction of surfaces like pipes, channels, and vegetated areas; soil infiltration rates, which govern how much water soaks into the ground; and the coefficients for weirs and orifices that control outflow. Each adjustment is made iteratively, and the model is re-run to see how the change affects the output. The goal is to refine these parameters within an acceptable engineering range until the model’s hydrograph closely mirrors the observed data, reflecting a true-to-life hydraulic analysis.
Leveraging Calibration for Future Campus Phases and Operations
The benefits of model calibration extend far beyond the initial project phase. For large data center campuses built out over many years, a calibrated model from Phase 1 provides an exceptionally accurate foundation for the master planning and design of subsequent phases. Engineers can proceed with a much higher degree of confidence, knowing their baseline assumptions have been validated with real-world data. This leads to more efficient and cost-effective drainage design for future expansions. Furthermore, a calibrated model is a powerful tool for ongoing asset management and operations. It can be used for operational forecasting to predict how the system will respond to upcoming major storm events, allowing facility managers to take proactive measures. It also provides a defensible tool for analyzing post-storm performance and communicating with regulatory agencies regarding permit compliance and system capacity.
The RSP Engineers Calibration Process
At RSP Engineers, we approach drainage model calibration with a systematic and data-driven methodology. Our process ensures that the final model is a reliable and defensible tool for risk management and future design. We provide comprehensive site engineering services tailored to the unique demands of mission-critical facilities. Initial Model Review: We begin by thoroughly reviewing the existing design model, construction plans, and as-built surveys to understand the design intent and baseline assumptions. Monitoring Plan Development: We design a custom monitoring plan to capture the most critical data, specifying the type and location of sensors for rainfall, water level, and flow. Data Collection and QA/QC: Our team oversees the installation of equipment and manages data collection, performing rigorous quality assurance checks to ensure data integrity. Comparative Analysis: We run the observed storm events through the model and perform a detailed statistical and graphical comparison to identify and quantify any performance gaps. Iterative Model Adjustment: Our experienced engineers make systematic, defensible adjustments to the model’s parameters, documenting the rationale for each change until the model accurately reproduces the observed data. Final Reporting and Recommendations: We deliver a comprehensive report detailing the calibration process, final model parameters, and actionable recommendations for operational improvements or future site development design.
Common Challenges in Drainage Model Calibration
While invaluable, the calibration process is not without its challenges. A common issue is discrepancies between design drawings and the final constructed conditions. Inaccurate as-built surveys can make it difficult to model the system correctly. Another challenge is equipment malfunction or gaps in the monitoring data, which can complicate the analysis. Sometimes, the actual storm events are highly complex, with variable intensity that is difficult to perfectly replicate in a model. Furthermore, site conditions change over time. Unanticipated vegetation growth in a channel can increase its roughness, or sediment accumulation in a pond can reduce its storage volume. Overcoming these challenges requires a combination of experienced civil engineers, high-quality data, and a clear understanding of the potential sources of discrepancy between the model and the real world. A proactive approach to site maintenance and periodic model updates is key to long-term accuracy.
Partner with RSP Engineers for Data-Driven Drainage Solutions
Ensuring the resilience of your data center starts with a drainage system you can trust. RSP Engineers provides the expert civil engineering and modeling services needed to validate and calibrate your stormwater systems. Our team has nationwide experience in complex stormwater management, detailed drainage design, and navigating the complexities of permit compliance for mission-critical projects. Don’t leave your facility’s safety to chance. Contact us to discuss how a data-driven model calibration can provide the assurance you need to protect your investment.
Conclusion: From Theoretical Model to Real-World Assurance
In the world of data center development, moving from assumption to certainty is paramount. Calibrating a drainage model with field observations is the definitive process for achieving this certainty. It transforms a theoretical design into a validated, reliable tool for managing one of the most significant risks to site operations. By integrating advanced hydrologic modeling with empirical field observations, owners and developers gain unparalleled insight into their system’s performance, ensuring the long-term resilience and success of their site development projects.
FAQs
-
An initial design model is based on standard engineering assumptions and textbook values that may not reflect the site’s unique as-built conditions. For mission-critical facilities like data centers, calibration verifies these assumptions against reality, providing a much higher level of confidence and reducing the risk of unexpected flooding.
-
The timeline is often dictated by the weather. The process requires capturing data from one or more significant rainfall events that are large enough to test the drainage system. This can take anywhere from a few months to a full season, followed by a period of intensive data analysis and model refinement.
-
While not always a requirement for initial construction permitting, it may be stipulated as a condition of operational permits, especially for large or complex sites. Regulatory agencies may also require a calibrated model for analyzing proposed modifications or expansions. These requirements for permit compliance can vary significantly by location.
