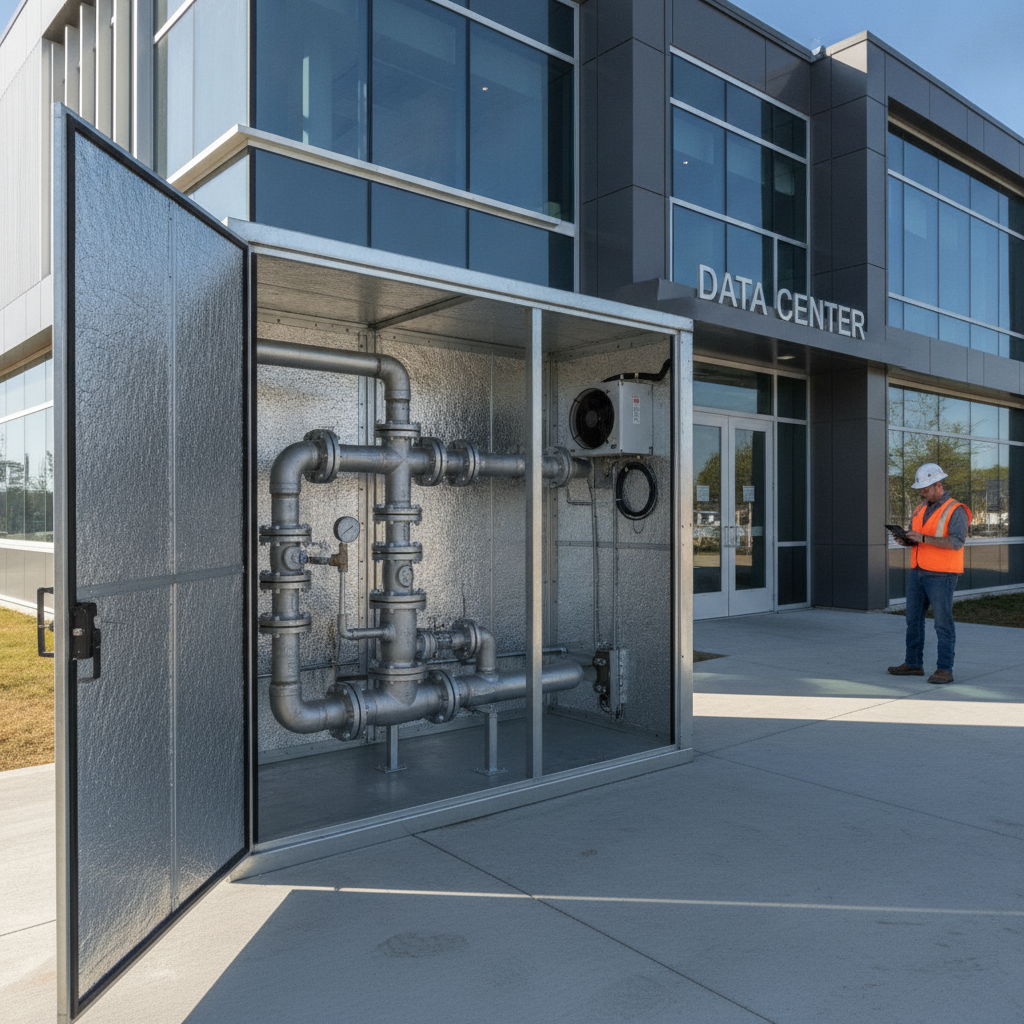

Backflow Prevention Requirements for Data Center Facilities
A technical guide to backflow prevention for data centers. Learn about cross-connection control, assembly selection (RPZ, DCVA), permitting, and design from the civil engineering experts at RSP Engine
The Critical Role of Cross-Connection Control in Data Centers
A cross-connection is any physical link between a potable water system and any source of non-potable liquid, solid, or gas. If a pressure differential occurs—such as a water main break causing low pressure (backsiphonage) or higher pressure from the facility pushing back (backpressure)—contaminants can be drawn into the public water supply. Data centers present elevated risks due to the nature of their internal water systems, which are often treated as high-hazard connections by utility providers. The primary sources of risk are the facility’s cooling and fire protection systems. Cooling towers and chiller loops often contain chemical additives like biocides, algaecides, and corrosion inhibitors. Fire sprinkler systems can contain antifreeze solutions or stagnant, non-potable water that has sat in the pipes for years. A failure in cross-connection control could introduce these substances into the drinking water system, posing a significant public health threat. Therefore, robust backflow prevention is a non-negotiable element of the facility’s utility infrastructure and a focal point during the permitting process.
Regulatory Frameworks and Utility Provider Standards
Comparison of Common Backflow Prevention Assemblies
| Assembly Type | Hazard Level Application | Key Feature | Typical Data Center Use Case |
|---|---|---|---|
| Reduced Pressure Zone (RPZ) | High Hazard (Contaminant) | Differential pressure relief valve provides maximum protection by discharging water during a failure. | Fire suppression lines, cooling tower makeup water, any system with chemical additives. |
| Double Check Valve Assembly (DCVA) | Low Hazard (Pollutant) | Two independent check valves provide redundancy for non-health hazards. | Domestic water service lines (where permitted), fire lines with no chemical additives (rarely permitted). |
| Pressure Vacuum Breaker (PVB) | High Hazard (Backsiphonage only) | Air inlet valve opens to break siphonage. Not effective against backpressure. | Landscape irrigation systems connected directly to the potable water main. |
| Atmospheric Vacuum Breaker (AVB) | High Hazard (Backsiphonage only) | Simplest device, must be installed downstream of the last shutoff valve. | Used on individual hose bibbs or equipment connections, not for main service lines. |
| Double Check Detector Assembly (DCDA) | Low Hazard (Fire Systems) | A DCVA with a small, metered bypass to detect leaks or unauthorized water use in fire systems. | Fire lines where a DCVA is deemed acceptable by the authority having jurisdiction. |
| Reduced Pressure Detector Assembly (RPDA) | High Hazard (Fire Systems) | An RPZ with a metered bypass, providing maximum protection while monitoring for leaks. | The standard for most data center fire service lines. |
The foundation for backflow prevention in the United States is the Safe Drinking Water Act (SDWA), which empowers the Environmental Protection Agency (EPA) to set national standards for drinking water quality. However, the direct enforcement and specific technical requirements are typically managed by state environmental agencies and, most directly, by local water utility providers. Each utility establishes a Cross-Connection Control Program that dictates the rules for its service area, including required assembly types, installation standards, and testing intervals. These requirements are not uniform and are based on the utility’s assessment of risk for different types of commercial and industrial facilities. Permitting requirements vary by jurisdiction, and every project team should confirm the applicable standards with the local, state, regional, and federal authorities that hold review authority over the site. A comprehensive site plan design submittal must demonstrate full compliance with the local utility’s standards, the fire marshal’s requirements, and applicable building codes. Early utility coordination is essential to identify these requirements and integrate them into the project design from the outset, avoiding redesigns during agency review.
Identifying High-Hazard Connections in Mission-Critical Facilities
The first step in designing a compliant system is to identify every point of connection that could pose a risk. In a data center, several systems are almost universally classified as high-hazard, mandating the highest level of protection, typically a Reduced Pressure Zone (RPZ) assembly. A thorough hazard assessment is a critical part of the initial civil engineering design phase. Fire Protection Systems: The main fire service line feeding the building’s sprinkler system is a primary concern. Even if no antifreeze is used, the water within the system is considered stagnant and non-potable. If fire pumps or chemical additives (like foam) are part of the system, the hazard level is further elevated. Cooling Systems: Makeup water lines for cooling towers, chillers, and other heat exchange equipment are direct cross-connections. These systems contain a cocktail of treatment chemicals that are toxic and must be isolated from the potable supply through effective backflow prevention. Irrigation Systems: While secondary to the core mission-critical systems, landscape irrigation lines are a common cross-connection. These systems can introduce fertilizers, pesticides, and bacteria from the soil into the water supply. Domestic and Makeup Water: Any large-diameter domestic service line may also require significant backflow protection, as determined by the utility provider based on the facility’s overall size and complexity.
Selecting the Appropriate Backflow Prevention Assembly
The type of backflow preventer required is directly related to the degree of hazard. A substance that only affects the aesthetic quality of water (like taste or color) is a pollutant, while a substance that can cause illness or death is a contaminant. Data center systems are typically treated as contaminant risks, or high-hazard. Reduced Pressure Zone (RPZ) Assembly For high-hazard applications like fire lines and cooling tower makeup, the Reduced Pressure Zone (RPZ) assembly is the industry standard. It provides the highest level of protection by creating a hydraulically isolated zone between two check valves with a differential pressure relief valve in between. If the second check valve fails, the relief valve will open and discharge water to the atmosphere, preventing any possibility of backflow. This discharge capability is a critical design consideration for the drainage design around the assembly. Double Check Valve Assembly (DCVA) A Double Check Valve Assembly (DCVA) consists of two independently acting check valves. It is suitable for low-hazard applications where the risk is from pollutants, not contaminants. In a data center context, a DCVA might be permissible on a domestic-only water line in some jurisdictions, but it is rarely sufficient for fire or process cooling lines. The final determination rests with the authority having jurisdiction.
Key Design Considerations for Backflow Preventer Installation
The physical design and placement of a backflow assembly involve significant civil engineering and site planning. Simply selecting the right type of valve is not enough; its installation must account for hydraulics, accessibility, and environmental factors. A primary consideration is hydraulic pressure loss. Every backflow assembly creates friction and reduces the available water pressure downstream. This pressure drop can be significant—often 10-15 PSI or more—and must be factored into the hydraulic calculations for the entire site. For a fire suppression system, this pressure loss can impact the required size of the water main, the need for a fire pump, and overall fire flow availability. This requires close collaboration between the civil engineer and the fire protection engineer. Installation location is also critical. Assemblies must be installed in accessible locations for mandatory annual testing, maintenance, and repair. While some smaller assemblies can be installed in below-grade vaults, large-diameter RPZ assemblies are almost always installed above ground. This requires designing a concrete pad, support structures, and often a heated, insulated enclosure for freeze protection in colder climates. The enclosure must also be designed with adequate drainage to handle the potential discharge from an RPZ’s relief valve without causing localized flooding or erosion.
Our Process for Ensuring Compliant Backflow Prevention Design
At RSP Engineers, our approach to data center utility design is proactive and thorough, ensuring that backflow prevention systems are compliant, reliable, and fully integrated into the overall site plan. Our process involves several key stages of civil engineering and project management. First, we conduct intensive upfront utility coordination with the local water provider and fire marshal to confirm all specific requirements for cross-connection control. We perform a detailed hazard assessment of the proposed facility to classify each connection correctly. Next, our team performs detailed hydraulic modeling to account for the pressure losses from the required assemblies, ensuring that domestic pressure and fire flow requirements are met without over-sizing infrastructure. We then prepare a detailed site plan design showing the precise location, enclosure details, and drainage provisions for each assembly. Finally, we manage the permit submittals and provide support throughout the agency review process, addressing technical comments and securing approvals in a timely manner.
Common Issues and Pitfalls in Data Center Backflow Design
Several common mistakes can lead to delays and costly changes during permitting and construction. One of the most frequent is underestimating the hydraulic impact of an RPZ assembly, leading to a failed fire flow test during commissioning. This can necessitate expensive upgrades to the water main or the addition of a fire pump late in the project. Another pitfall is improper physical placement. Installing a large RPZ assembly without adequate clearance for maintenance or without proper freeze protection and drainage can lead to premature failure and compliance violations. Finally, a lack of coordination between the civil engineer, MEP engineer, and fire protection engineer can result in conflicting designs. A successful project requires an integrated team approach to ensure the backflow prevention strategy aligns with the facility’s comprehensive water management and life safety systems. Frequently Asked Questions Why is an RPZ assembly required for my data center’s fire line? Fire lines are considered high-hazard because the water sits stagnant for long periods, potentially growing bacteria, and may contain antifreeze or other chemicals. An RPZ assembly provides the highest level of protection against both backsiphonage and backpressure, which is required by most utility providers and fire codes to protect the public water supply from these potential contaminants. How does a backflow preventer affect my water pressure? All backflow prevention assemblies cause a drop in water pressure due to internal friction. This pressure loss can range from 5 to 20 PSI depending on the assembly type, size, and flow rate. This loss must be accounted for in the hydraulic calculations for the site to ensure adequate pressure is available for domestic use and, most critically, for the fire suppression system to meet required GPM and pressure thresholds. Can a backflow preventer be installed in an underground vault? While Double Check Valve Assemblies (DCVAs) are often installed in vaults, Reduced Pressure Zone (RPZ) assemblies generally are not. The RPZ is designed to discharge a large volume of water from its relief valve during a failure. In a vault, this would cause flooding and go unnoticed. Most plumbing codes and utility standards require RPZs to be installed above ground with adequate drainage to manage this discharge. What are the ongoing testing and maintenance requirements? Nearly all jurisdictions require backflow prevention assemblies to be tested by a certified technician upon installation and at least annually thereafter. Records of these tests must be submitted to the local water utility. Regular maintenance is also crucial to ensure the check valves and relief valves function correctly. The site development plan should include permanent, safe access for this recurring service. Who is responsible for approving the backflow prevention plan? Approval typically involves multiple agencies. The local water utility provider is the primary authority for protecting the public water supply and will review the plan for compliance with their cross-connection control program. The local fire marshal or fire department will review the design for impacts on the fire suppression system. Finally, the local building or plumbing department may also have review authority as part of the overall construction permit process.
Partner with RSP Engineers for Your Mission-Critical Utility Design
Navigating the complexities of data center utility design requires specialized expertise. The team at RSP Engineers has extensive experience designing and permitting infrastructure for mission-critical facilities nationwide. We provide comprehensive site engineering services, from initial due diligence and utility coordination to final construction administration. Our proactive approach to backflow prevention and cross-connection control ensures your project meets all regulatory requirements while optimizing for performance and reliability. Contact us today to discuss how we can support your next data center development.
Conclusion
Effective backflow prevention is a foundational element of safe and reliable data center operations. It is a complex discipline that intersects civil engineering, public health regulations, and mission-critical facility requirements. By understanding the risks, selecting the appropriate assemblies, and designing for hydraulic performance and long-term maintenance, developers can ensure their facilities are both compliant and resilient. A successful project hinges on early planning, detailed design, and thorough utility coordination to protect both the community’s water supply and the facility’s operational uptime.
